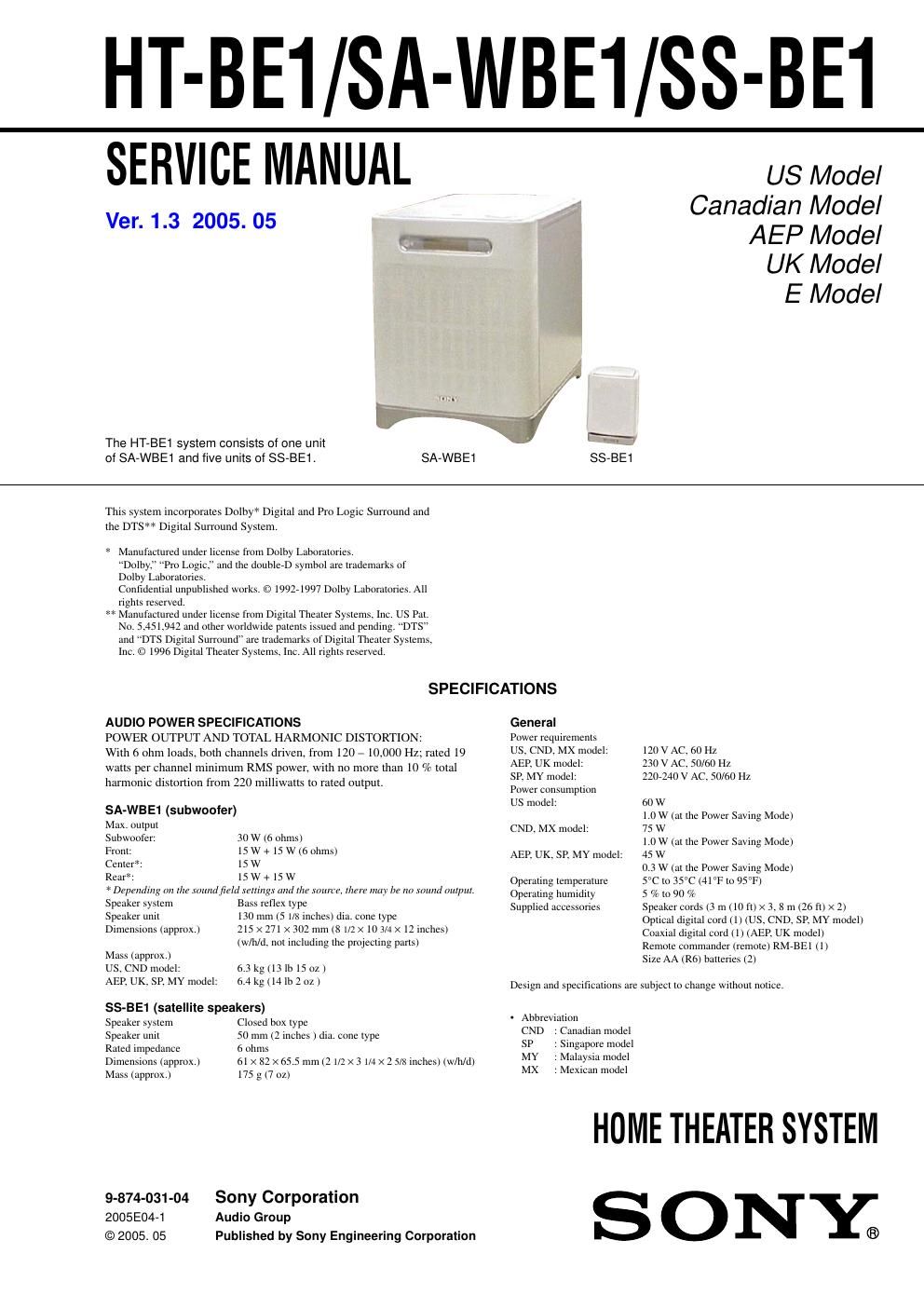

Page 1

HT-BE1/SA-WBE1/SS-BE1

SERVICE MANUAL

Ver. 1.3 2005. 05
5;

The HT-BE1 system consists of one unit
oi SA-WBEt and five units of SS-BE1.

SA-WBE1

US Model

1 Canadian Model
AEP Model

UK Model

E Model

J.(- i.

This System incorporates Dolby* Digital and Pro Logic Surround and
the DTS Digital Sunound System.

* Manufactured under license trom Dolby Laboratories
Dolby." Pro Logic," and the doublerD symbol are trademarks of
Dolby Laboratories.

Contidential unpublished works. e 199271997 Dolby Laboratories. All
rights reserved.

w Manufactured under license from Digital Theater Systems. lnc. US Pat.
No. 5.451.942 and other worldwide patents issued and pending. DTS
and DTS Digital Surround" are trademark of Digital Theater Systems.
inc. © 1995 Digital Theater Systems. inc, All rights reseryed.

SPECIFICATIONS

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DISTORTION:

With 6 ohln loads, both channels driven, from 120 - 10,000 Hz; rated 1)
watts per channel minimuln RMS power. with no more than 10 70 total
harmonic distortion from 220 milliwatts to rated output.

SA-WBE1 (subwoofer)

Max. output

Subwoofet: 30 w (o ohms)
Front: 15 w + 13 w (6 ohms)
Center": 15 w

Rear: 15W+13W

* Depending [in HM ,mtmtl fluid nailing/S and tilt: mime, Ilim» liill\ be 110 smmil nulpul.

Speaker system Bass i-etlex type

Speaker ttnit 130 mm (5 in) inches) dia. cone type

Dimensions (approx) 215 X 27] X 302 mm (8 ll2 X 10 3/4 X 12 inches)
(w/h/d, not including the projecting. parts)

Mass (approx. )

US. CND model:

AEP. UK. SR MY model:

6.3 kg(13]b15 oz)
6.4 kg(141b201)

SS-BE1 (satellite speakers)

Speaker system Closed box type
Speaker tinit 50 mm (2 inches ) dia cone type

Rated impedance 6 ohms

Dimensions (approx) 61 X x2 X 63 5 mm (2 Hz x 3 m x 2 six inches) (w/h/d)
Mass (approx. ) 175 g (7 oz)

9-874-031-04 Sony Corporation
2005E04-1 Audio Group
© 2005. 05 Published by Sony Engineering Corporation

General

Power requirements
US. CND, Mx model:
AEP. UK model:

SP. MY model:

Power consumption

120V AC, 60 HZ
230 V AC, 50/60 HZ
2207240V AC, 50/60 Hz

US model: o0 w
1.0 w (at the Power Saving Mode)
CND, MX model: 75 w
1.0 w (at the Power Saving Mode)
AEP. UK, SP. MY model: 45 w

0.3 w (at the Power Saving Mode)
SEC to 3ST (41 F to 951:)

5 We to 90 %

Speaker cords (3 in (lo rt) X 3, a m (26 ft) x 2)
optical dlgllal cord (l) (US. CND. SP MY model)
Coaxial digital cord (1) (AEP UK model)

Remote commander (remote) RMrBEl (1)

size AA (Ro) batteries (2)

Operating temperature
Operating humidity
Supplied accessories

Design atld specifications are SubJSCI to change without notice.

- Abbreviation
CND :Canadian model
SP : Singapore model
MY : Malaysia model
MX : Mexican model

HOME THEATER SYSTEM
S ONY;

Page 2

HT-BE1/SA-WBE1/SS-BE1

SAFETY CHECK-OUT

After correcting the original service problem, perform the following
safety check before releasing the set to the customer:

Check the antenna terminals, metal trim, metallized knobs, screws,
and all other exposed metal parts for AC leakage. Check leakage as
described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and
from all exposed metal pans to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers instructions to use these
instruments.

2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means ofa VOM
or battery-operated AC voltmeter. The limit indication is 0.75
V, so analog meters must have an accurate low-voltage scale. The
Simpson 250 and Sanwa SH-63Trd are examples of a pa ve
VOM that is suitable. Nearly all battery operated digital
multimeters that have a 2V AC range are suitable. (See Fig. A)

To Exposed Metal
Pans on Set

I g 1.5m / 23701;?36'

T:- Earth Ground

0. 151m

Fig. A. Using an AC voltmeter to check AC leakage.

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE

LES COMPOSANTS IDENTIFIES PAR UNE MARQUE A SUR LES
DIAGRAMMES SCHEMATIQUES ET LA LISTE DES PIECES
SONT CRITIOUES POUR LA SECURITE DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIECES
SONY DONT LES NUMEROS SONT DONNES DANS CE MANUEL
OU DANS LES SUPPLEMENTS PUBLIES PAR SONY.

2

TABLE OF CONTENTS
1. SERVICING NOTE
1-1. Extension Cable and Service Position ................................ 3
2. GENERAL
Index to Parts and Controls ................................................. 4

3. DISASSEMBLY

3-1. Top Chassis Assy ............
3-2. Display Board, Key Board
3-3. Rear Panel Assy
34. Main Board

\Iasmu:

4. DIAGRAMS

4-1. 1C Pin Descriptions .
4-2. Block Diagram -Main Section-
4-3. Block Diagram iPower Section-
4-4. Printed Wiring Board iJack Section- .......
4-5. Schematic Diagram Jack/Main (5/1) Section
4-6. Printed Wiring Board iMain Section-
4-7. Schematic Diagram iMain (2/5) Section-
4-8. Schematic Diagram iMain (3/5) Section-
4-9. Schematic Diagram iMain (4/5) Section-
4-10. Schematic Diagram iMain (5/5) Section-
4-ll. Schematic Diagram iDisplay/Key Section-
4-l2. Printed Wiring Board iDispIay Section- ..
4-13. Printed Wiring Board iKey Section
4-14. IC Block Diagrams ......................

5. EXPLODED VIEWS
5-1. Main Section (SA-WBEl) .......
5-2. Main Board Section (SA-WBEI)

.28

.29

6. ELECTRICAL PARTS LIST ......................................... 30
