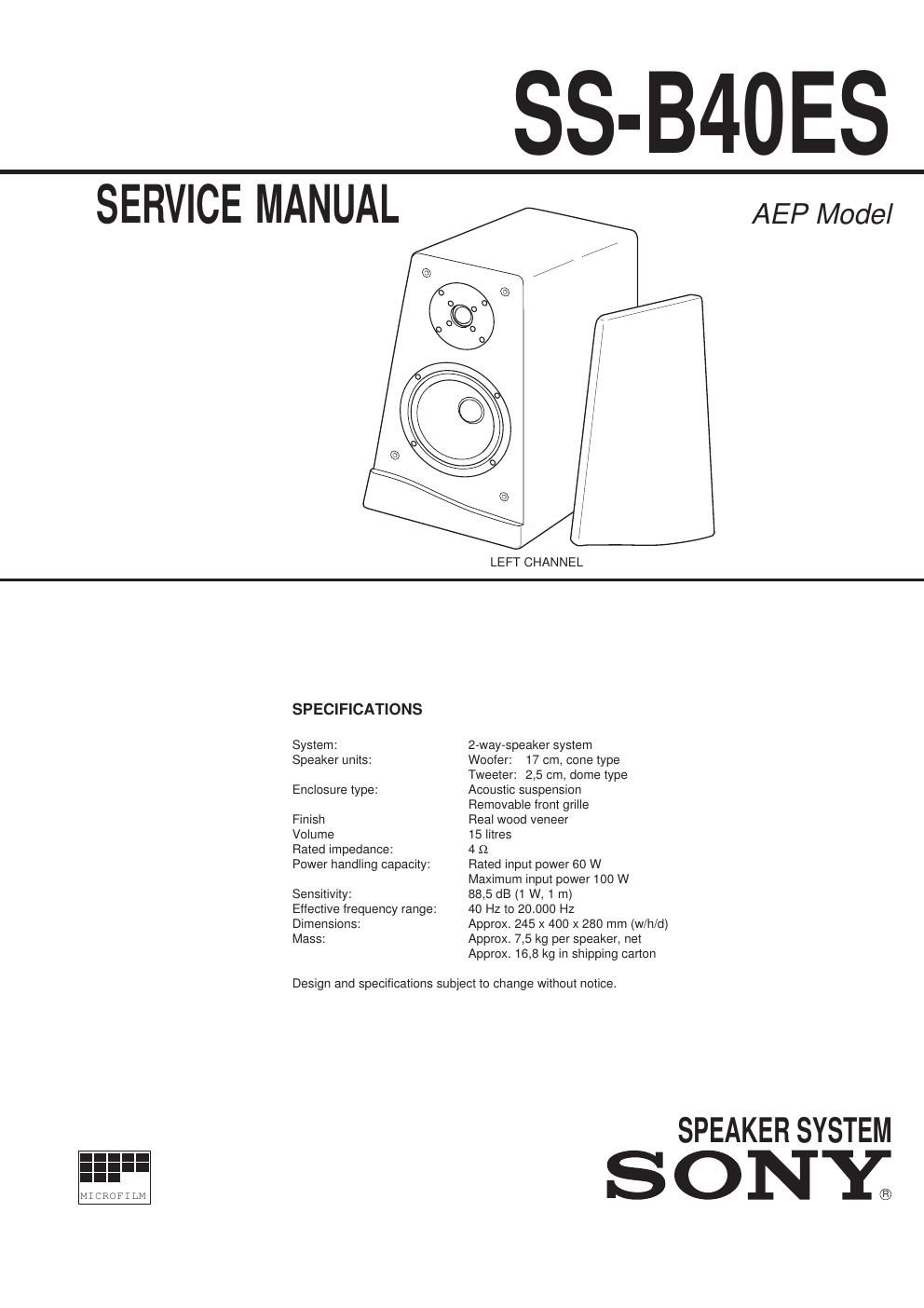

Page 1
- 2 -
9-959-753-11
SS-B40ES
NOTE:
¥ The mechanical parts with no reference
number in the exploded views are not
supplied.
¥ Items marked "*" are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
¥ SP2 is removed when you remove the SP1
and insert your hand to the hole and push out
from the inside afterward.
1. EXPLODED VIEW AND PARTS LIST
Ref. No. Part No. Description Remark
1 X-4945-188-1 SPEAKER CABINET ASSY (L)
1 X-4945-190-1 SPEAKER CABINET ASSY (R)
2 X-4945-189-1 GRILLE FRAME ASSY (L)
2 X-4945-191-1 GRILLE FRAME ASSY (R)
3 1-589-622-11 MOUNTED P.C.B.
4 4-961-784-01 SCREW P 4,0 X 25 T15
5 4-962-101-01 SCREW P 4 X 50
6 1-537-795-11 TERMINAL BOARD
7 4-962-102-01 WASHER
8 4-962-104-01 WASHER Ref. No. Part No. Description Remark
SP1 1-504-592-11 SPEAKER (17 cm CONE)
SP2 1-504-664-11 SPEAKER (2,5 cm DOME)
*4-968-774-01 CARTON
*4-968-775-01 CUSHION (A)
*4-968-776-01 CUSHION (B)
*4-969-145-01 CUSHION (C)
*4-969-146-01 CUSHION (D)
*4-968-777-01 POLYETHYLENE BAG
3-759-279-11 INSTRUCTION MANUAL
Left channel unit
Sony Corporation Consumer A&V Products Company
Home A&V Division
English
94H7547-1
Printed in Germany
© 1994.8
Published by Home A&V Div. Quality Engineering Dept.
SP2
1
SP1
4 4
24
6 8
5
37
