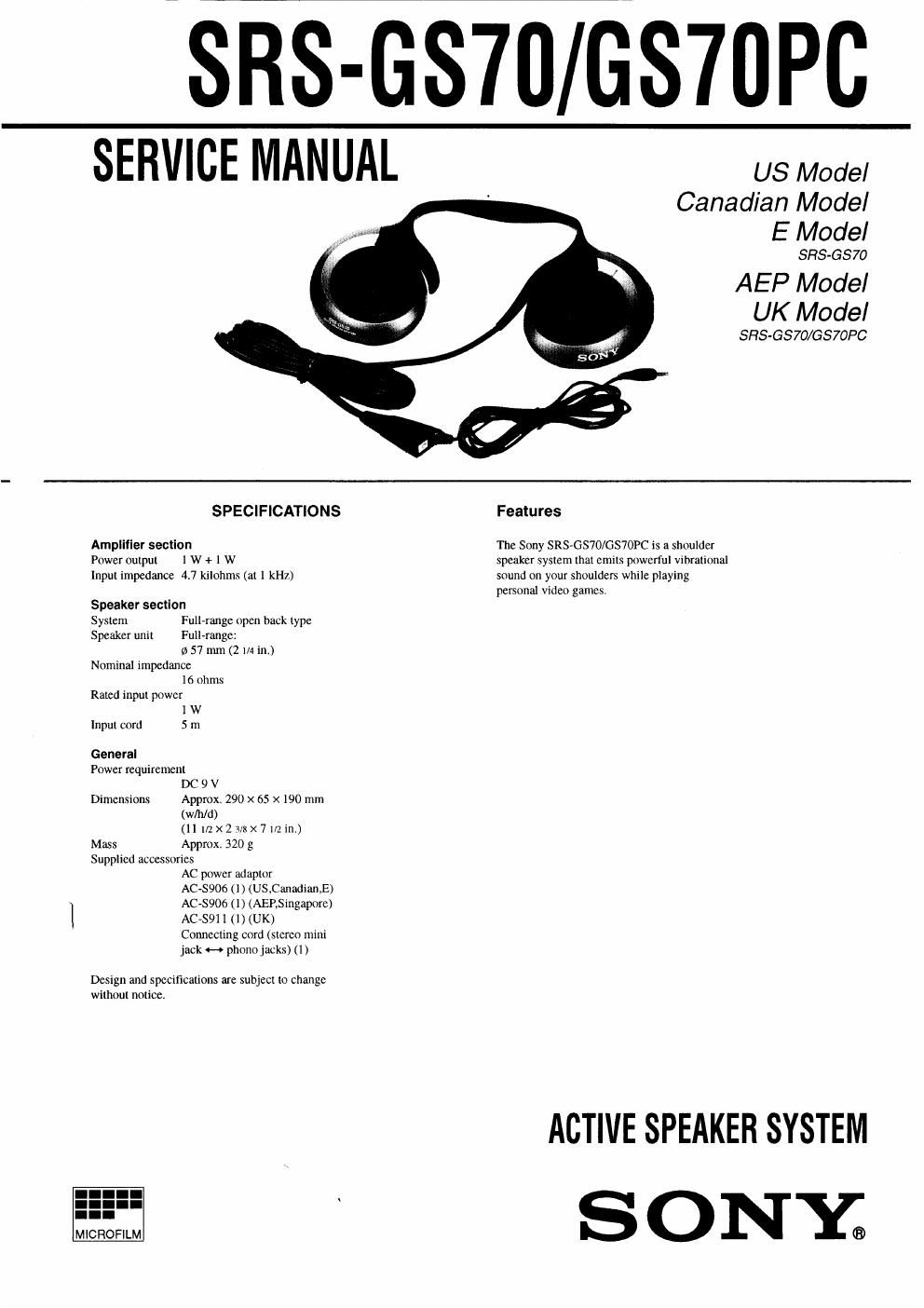

% SRS-GS70/GS70PC
SERVICE MANUAL _
Canadian Model
E Model
SFlS-GS70
AEP Model
UK Model
SRS~GS70/GS70PC
SPECIFICATIONS Features
AmpIifier section The Sony SRS-GS70/GS70PC is a shoulder
Power output I W + l W speaker system that emits powerful vibrational
Input impedance 4.7 kilohms (at 1 kHz) sound on your shoulders while playing
personal video games.
Speaker section
System Fullarange open hack type
Speaker unit Full-range:
a 57 mm (2 m in.)
Nominal impedance
16 ohms
Rated input power
1 W
Input cord 5 m
General
Power requirement
DC 9 V
Dimensions Approx. 290 X 65 x 190 mm
(w/h/d)
(ll l/Z x2 1/3 x 7 1/2 in.)
Mass Approx. 320 g
Supplied accessories
AC power adaptor
AC-8906 (1) (US,Canadian,E)
AC-S906 (1) (AERSingaporc)
AC-S911 (1) (UK)
Connecting cord (stereo mini
jack H phone jacks) (I)
Design and specifications are subject to change
without notice.
ACTIVE SPEAKER SYSTEM
SONY.
MICROFILM
Page 2
Connections
How to Use
lo wall ouxlex (-
Personal video game marhlne
AC power adapmr
(wpplied)
black
Connecting cord (supplied)
1 Set the POWER switch to ON.
The POWER indicator lights up.
2 Hang the unit around your
shoulders so that the parts of
she speaker are right side out.
3 Adjust the angle of he speaker.
upward (music position)
-- You can enjoy the sound with presence.
downward (same position)
_. You can enjoy the bass sound with
vibration.
4 Adjust the VOL control.
game poxixion
VOL (onuol
(D
am
20
rn:I
:00
>2
P-l
5;
35'
E3
5'9.
33
322.
.-Z
3
3
a
