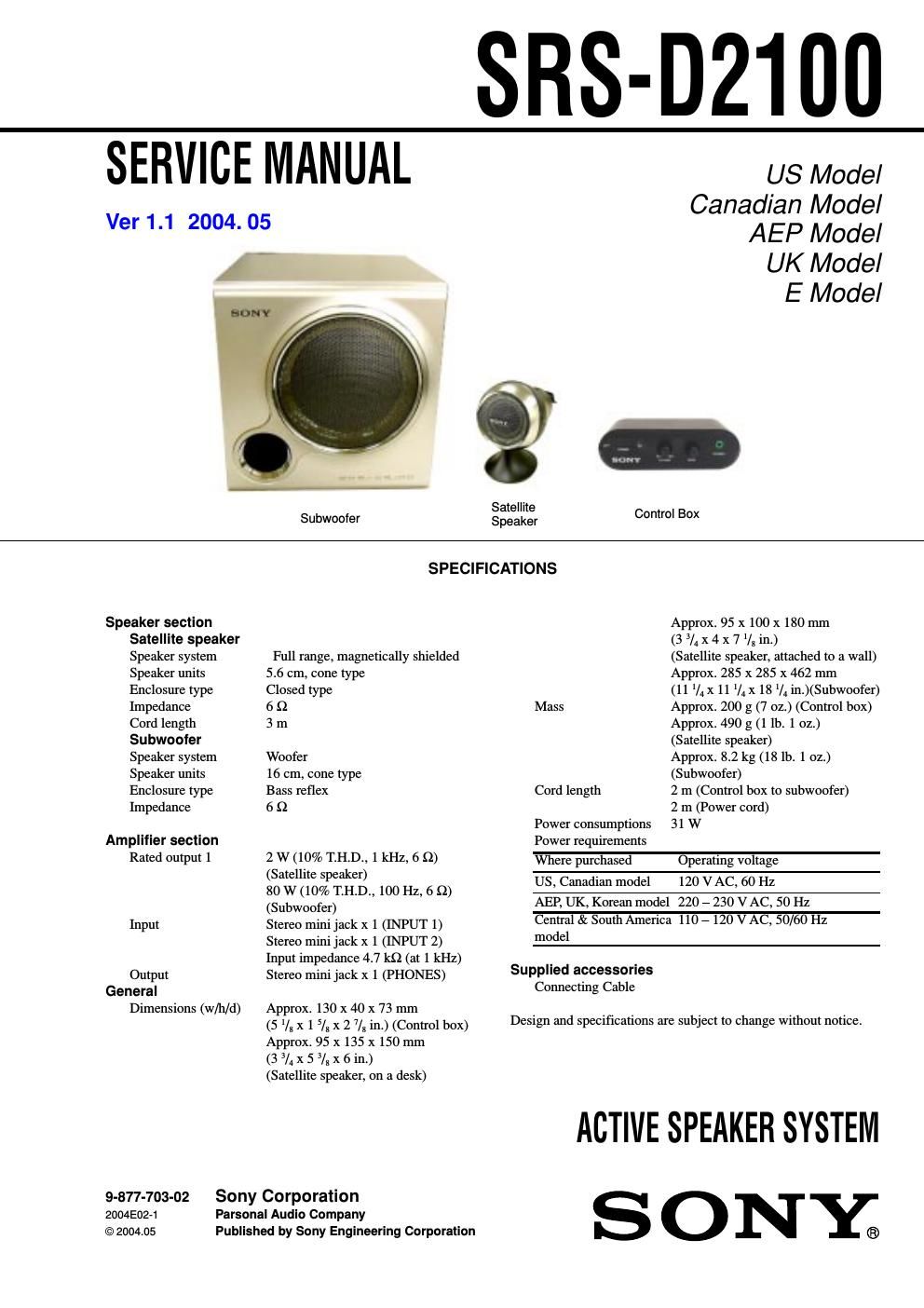

Page 1
2
SRS-D2100
TABLE OF CONTENTS
Specifications ........................................................................\
.... 1
1. GENERAL ................................................................... 3
2. DIAGRAMS
2-1. Printed Wiring Boards -“ Control Section-“ ...................... 4
2-2. Schematic Diagram -“ Control Section-“ .......................... 5
2-3. Printed Wiring Boards-“ Amp Section (Side A)-“ ............. 6
2-4. Printed Wiring Boards-“ Amp Section (Side B)-“ ............. 7
2-5. Schematic Diagram -“ Amp Section-“ ............................... 8
3. EXPLODED VIEWS
3-1. Subwoofer Section .......................................................... 9
3-2. Control Box, Satellite Speaker Section ........................... 10
4. ELECTRICAL PARTS LIST .................................. 11
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety checks before releasing the set to the customer:
Check the antenna terminals, metal trim, metallized knobs, screw\
s,
and all other exposed metal parts for AC leakage. Check leakage as
described below.
LEAKAGE
The AC leakage from any exposed metal part to earth Ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microampers).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples
of a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2V AC range are suitable. (See
Fig. A)
Fig. A. Using an AC voltmeter to check AC leakage.
0.15 µF To Exposed Metal
Parts on Set
1.5k-„¦ AC
voltmeter
(0.75V)
Earth Ground
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE
PA RTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE
THESE COMPONENTS WITH SONY PARTS WHOSE PART
NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY.
A TTENTION AU COMPOSANT AYANT RAPPORT
Ã- LA SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES
SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES
SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL
OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
Page 2
SRS-D2100
3
3
SECTION 1
GENERAL
This section is extracted
from instruction manual.
LOCATING THE CONTROLS
VO LUME BASS PHONE
ON
OFF
POWERMIN MAX
POWER
VOLUMEPHONES
Control box
SECTION 2
DIAGRAMS
For schematic diagrams.
Note:
- All capacitors are in µF unless otherwise noted. (p: pF) 50 WV or
less are not indicated except for electrolytics and tantalums.
- All resistors are in -„¦ and
1/4
W or less unless otherwise specified.
- C : panel designation.
- A : B+ Line.
- B : B-“ Line.
-V oltages are dc with respect to ground under no-signal conditions.
- no mark : Power on
-V oltages are taken with a VOM (Input impedance 10 M -„¦).
V oltage variations may be noted due to normal production toler-
ances.
- Signal path.
F : AUDIO
- Abbreviation
CND : Canadian model
C&SA : Central and South America model
KR : Korean model
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this necessary note is printed in each block.)
Note:
The components identi-
fied by mark 0 or dotted
line with mark 0 are criti-
cal for safety.
Replace only with part number specified. Note:
Les composants identifiés par
une marque
0 sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié. For printed wiring boards.
Note:
-
X : parts extracted from the component side.
-
: Pattern from the side which enables seeing.
- Abbreviation
CND : Canadian model
C&SA : Central and South America model
KR : Korean model
Ver 1.1
