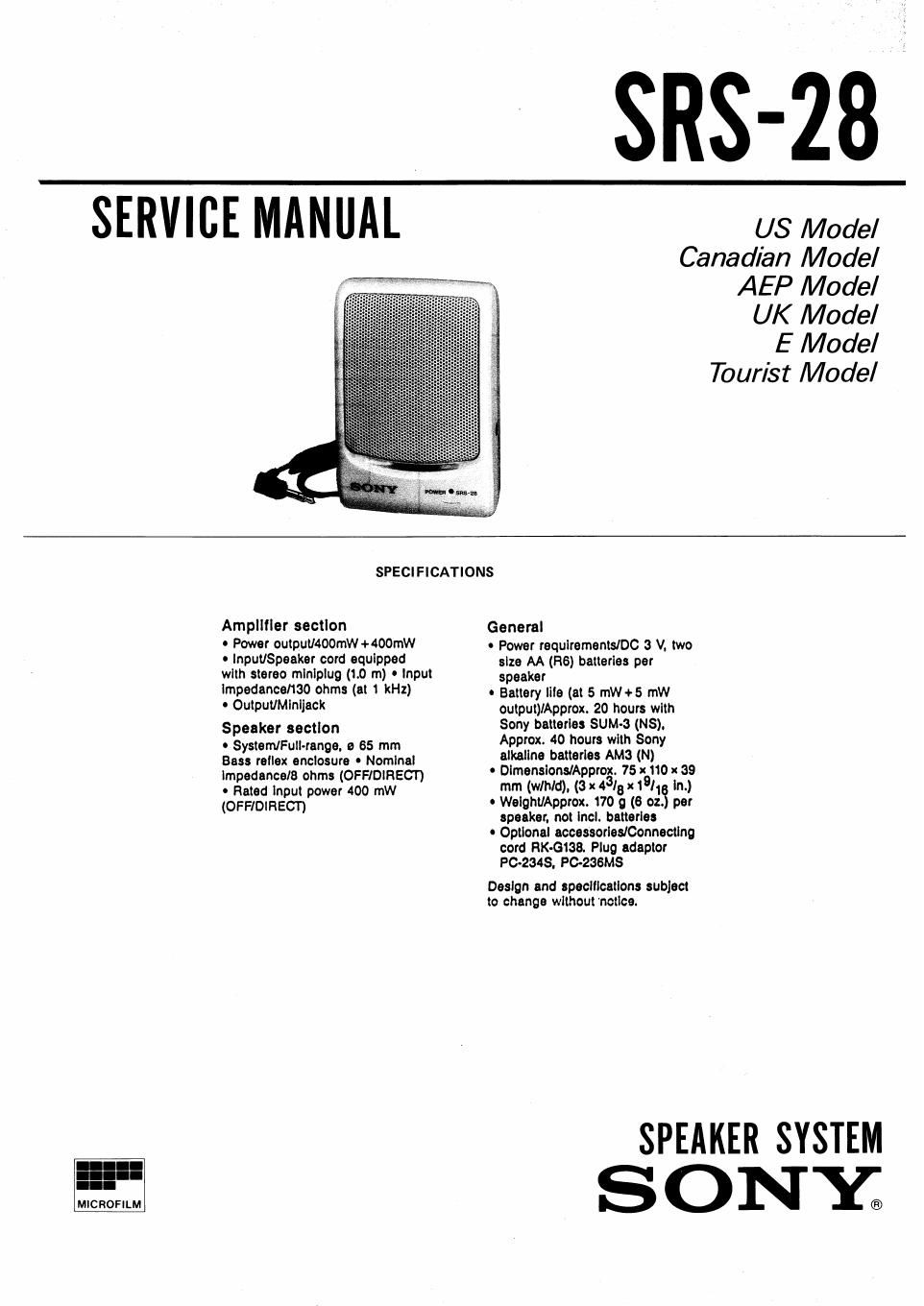

Page 1
SRS-ZB
SERVICE MANUAL
US Model
Canadian Model
AEP Model
UK Model
E Model
Tour/st Model
MICROFILM
SPECIFICATIONS
Ampilller section
0 Power output/400mW+400mW
- Input/Speaker cord equipped
with stereo miniplug (1.0 m) ' Input
Impedance/130 ohrns (at 1 kHz)
0 Output/Minijack
Speaker section
0 System/FulI-renge. e 65 mm
Bess reflex enclosure - Nominal
impedance/8 ohm: (OFF/DIRECT)
0 Rated Input power 400 mW
(OFF/DIRECT)
General
o Power requirements/DC 3 V. two
size AA (RB) batteries per
speaker
I Battery life (at 5 mW+5 mW
output)IApprox. 20 hours with
Sony batteries SUM-3 (NS).
Approx. 40 hours with Sony
alkaline batteries AMa (N)
. DImenalons/Approx. 75 x 9110 x 39
mm (wlhld),( 3X4 I x19/1 In)
0 Weight/Approx. 170 a (8 023 per
speaker. not Incl. batteries
c OptioneI accessories/Connecting
cord FIK-Gtaa. Plug Adaptor
P023118. PGZSSMS
Design and specifications subject
to change without notice.
SPEAKER SYSTEM
SONY;
Page 2
SRS-28
LtIZLt
SECTION 1
GENERAL
to hedphones Jack
(stereo miniiack)
Walkman. etc.
Lelt speaker Right speaker
to output tack oi
the ialt speaker
Connection to a Walkman, etc.
There is no distinction between the left and right
speakers. as sure to place the speaker connected to
the source equipment on the left.
When the speakers are connected to a monaurel
jack cl 8 radio. etc. the sound may be output only
from the Ieit speaker.
Connection to 3 Stereo Phone-type
Headphones Jack
Use the optional P0234S plug adaptor or RK-G138
connecting cordt
This section is extracted from
instruction manual.
To Listen to the Sound through the
Built-tn Amplifier
POWER indicator
Set the POWER switch to ON.
The POWER indicator will light up.
Adjust the volume with the volume control of the
connected source equipment
After listening
Set the POWER switch to OFF/DIRECT.
The POWER indicator will go oil.
To Listen to the Sound without the
Built-in Amplifier
Set the POWER switch to OFF/DIRECT.
Adjust the volume with the volume control ot the
connected source equipment.
To Use the
Speaker Stand
