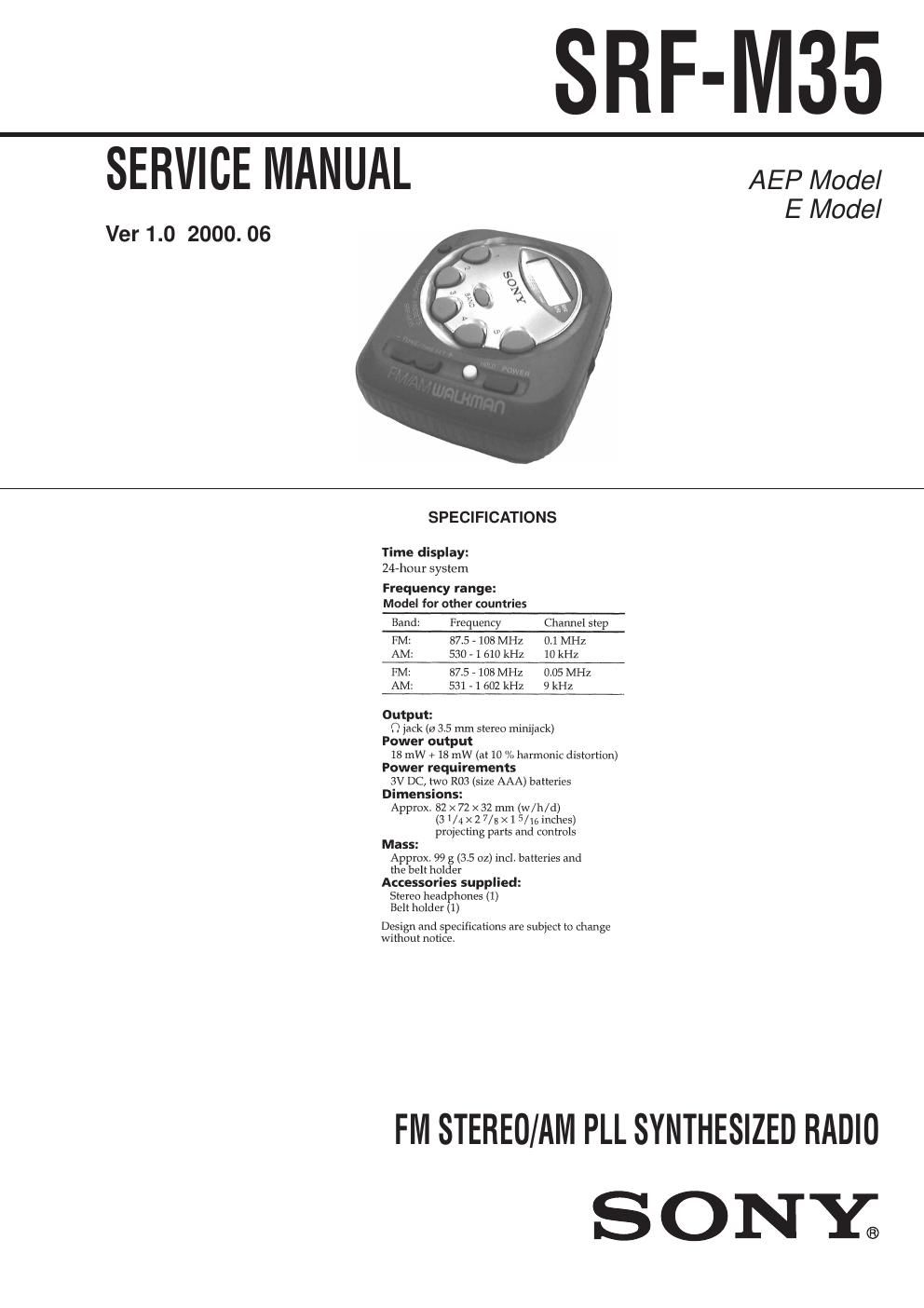

sony srf m 35 service manual

Extracted text from sony srf m 35 service manual (Ocr-read)


Page 1

Ñ 2 Ñ SECTION 1 GENERAL This section is extracted from instruction manual. 1. Check the area of your repair for unsoldered or poorly-soldered connections. Check the entire board surface for solder splashes and bridges. 2. Check the interboard wiring to ensure that no wires are "pinched" or contact high-wattage resistors. 3. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the customer and recommend their replacement.4. Look for parts which, through functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement. 5. Check the B+ voltage to see it is at the values specified. 6. Flexible Circuit Board Repairing ¥ Keep the temperature of the soldering iron around 270ûC during repairing. ¥ Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). ¥ Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY CHECK-OUT After correcting the original service problem, perform the following safety checks before releasing the set to the customer.

Page 2

Ñ 3 Ñ SECTION 2 DISASSEMBLY Note :Follow the disassembly procedure in the numerical order given. 2-1. FRONT CABINET 2-2. MAIN BOARD AND KEY BOARD 5 Cabinet (front) assy 3 Tow claws 4 Tow claws 1 Lid battery cas e 2 Two screws (P2 ´ 8) 1 Tow claws 2 Key board 2 Main board
