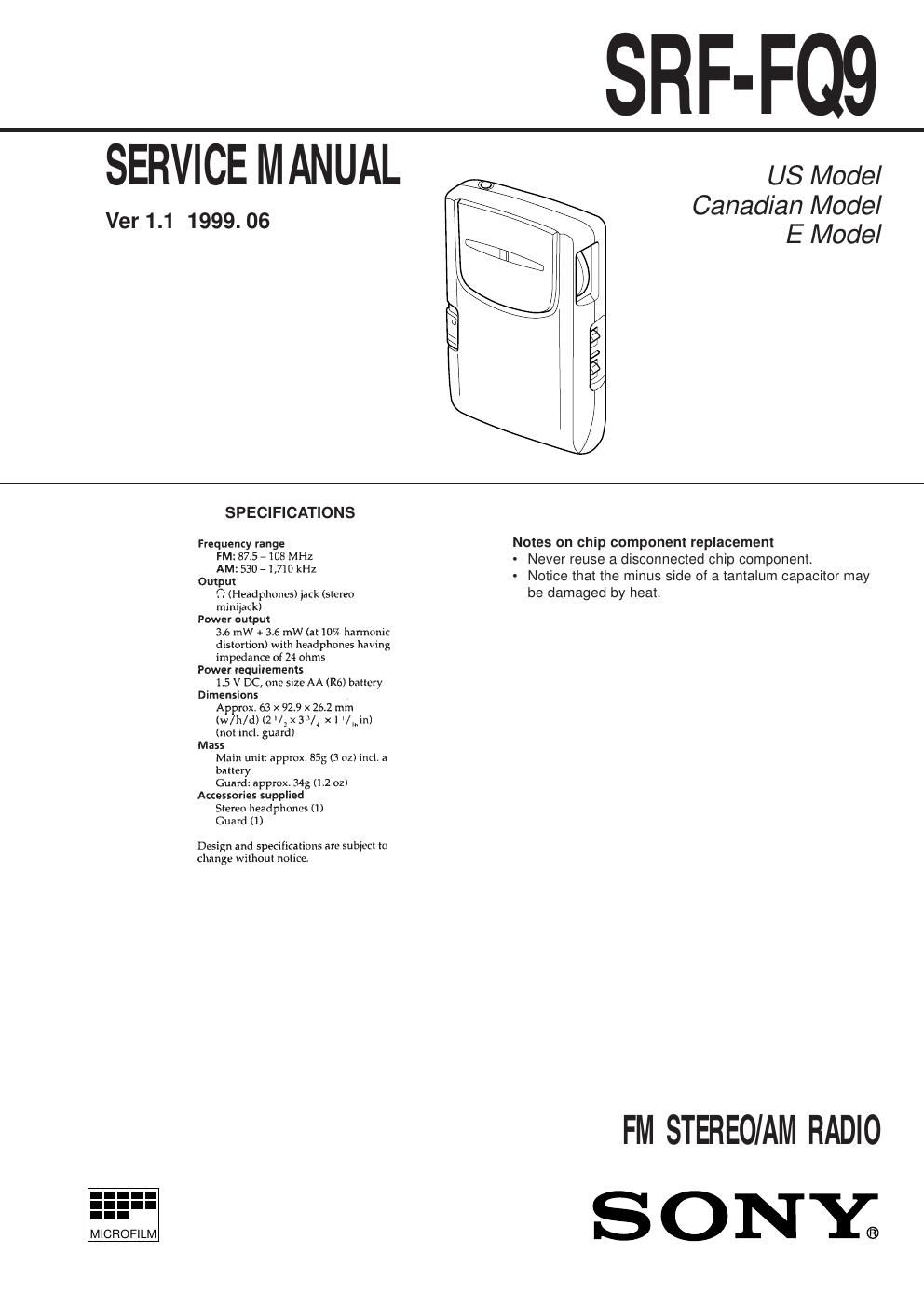

sony srf fq 9 service manual

Extracted text from sony srf fq 9 service manual (Ocr-read)

Page 1

Ð 2 Ð SECTION 1 GENERAL This section is extracted from instruction manual.

Page 2

Ð 3 Ð MAIN BOARD DIAL POINTER SETTING Note: Follow the disassembly procedure in the numerical order given. SECTION 2 DISASSEMBLY Note: Follow the assembly procedure in the numerical order given. 1 two screws (P2 ´ 8) 4 main board 2 four claws 3 cabinet (rear ) 2 two claws 5 cabinet (front) pointer 1 Mount the pointer as shown in the figure A. 4 main board cabinet (front) 3 Turn CV1 fully in the arrow direction. 2 Mount the knob (TUNE) as shown in the figure B. knob (TUNE) fig. B fig. A
