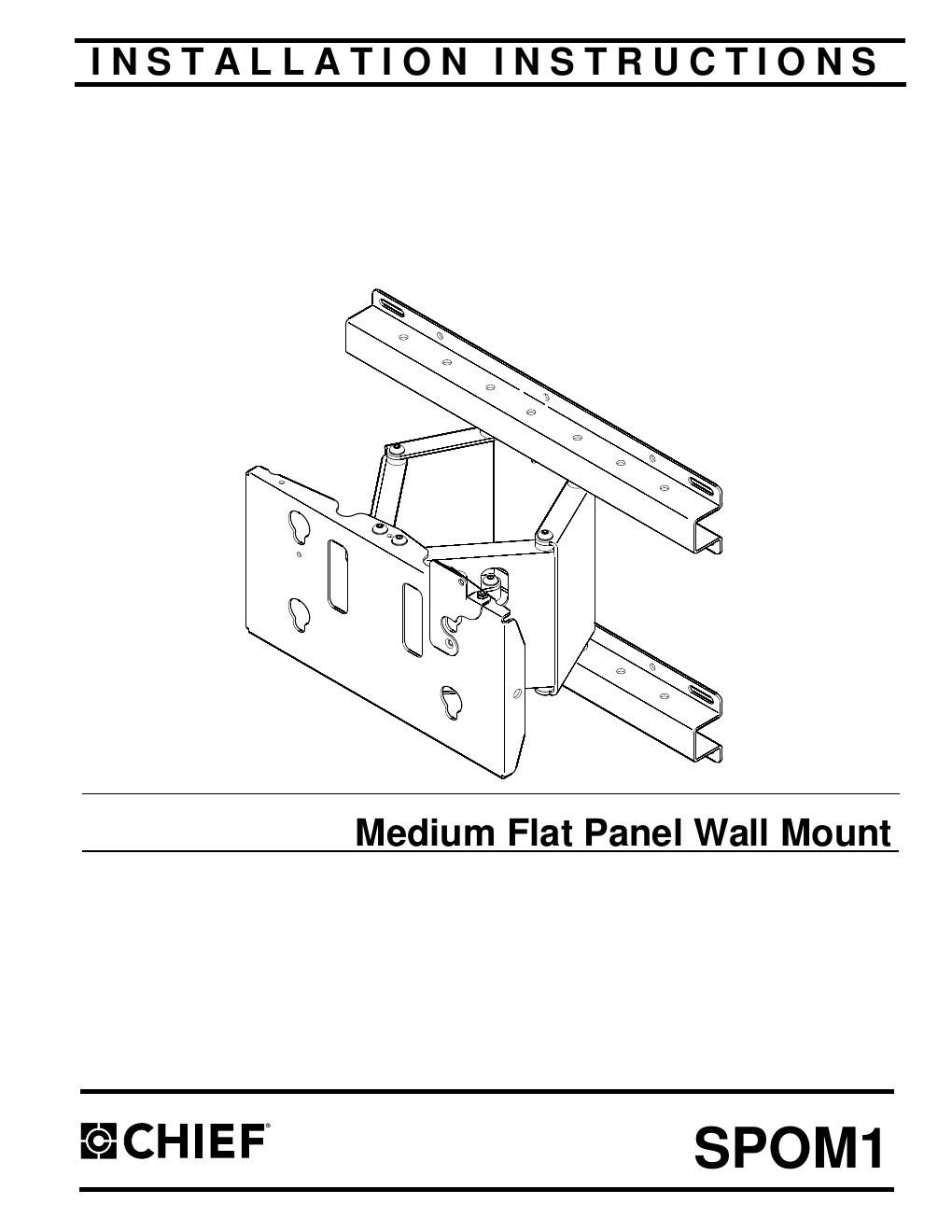

SPOM1Installation Instructions
2DISCLAIMER
CSAV, Inc., and its affiliated corporations and subsidiaries
(collectively, "CSAV"), intend to make this manual accurate and
complete. However, CSAV makes no claim that the information
contained herein covers all details, conditions or variations, nor
does it provide for every possible contingency in connection
with the installation or use of this product. The information
contained in this document is subject to change without notice
or obligation of any kind. CSAV makes no representation of
warranty, expressed or implied, regarding the information
contained herein. CSAV assumes no responsibility for
accuracy, completeness or sufficiency of the information
contained in this document.
IMPORTANT WARNINGS AND
CAUTIONS!WARNING:A WARNING alerts you to the possibility of
serious injury or death if you do not follow the instructions.CAUTION:A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.WARNING:Failure to read, thoroughly understand, and
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installers responsibility to make sure all components are
properly assembled and installed using the instructions
provided.WARNING:Failure to provide adequate structural strength
for this component can result in serious personal injury or
damage to equipment! It is the installers responsibility to
make sure the structure to which this component is attached
can support five times the combined weight of all equipment.
Reinforce the structure as required before installing the
component.WARNING:Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installers responsibility to make sure thecombined weight of
all components does not exceed 75 lbs (34 kg).DIMENSIONS
Page 2
Installation InstructionsSPOM1
3INTRODUCTION
TOOLS REQUIRED FOR INSTALLATION
Phillips screwdriver
Drill and bit set
INSPECT MOUNT BEFORE ASSEMBLY
Carefully inspect mount assembly for shipping damage
(see Figure 1). If damage is apparent, call your carrier
claims agent and do not continue with installation until
the carrier has reviewed the damage.
NOTE:Thouroughly read and understand all assembly
instructions before starting installation.
Abbreviations used throughout this manual are identified
in the table below.abbr.Description
PFMS Phillips Flat Head Machine Screw
PPMS Phillips Pan Head Machine Screw
FWFlat Washer
PPSM Phillips Pan Head Sheet Metal ScrewTable 1: PARTSITEMDESCRIPTIONQTY.
10SCREW, Wood, Phillips, 1/4" x 2"4
20WASHER, Flat, 1/4"4
30WRENCH, Security, 5/32"1
40WRENCH, Hex, 3/16"1
50PAD, Felt, 1"2
60CLIP, Cable Management2
70PIN, Locking1
80SCREW, Button Head Security, #8-32 x 3/8"1
90NUY, Nylock, #8-321WARNING:USING IMPROPER HARDWARE CAN
LEAD TO MOUNT AND/OR DISPLAY FALLING. Use
only hardware provided with mount. DO NOT
substitute!
Figure 1: Parts40 10
50
302060809070
