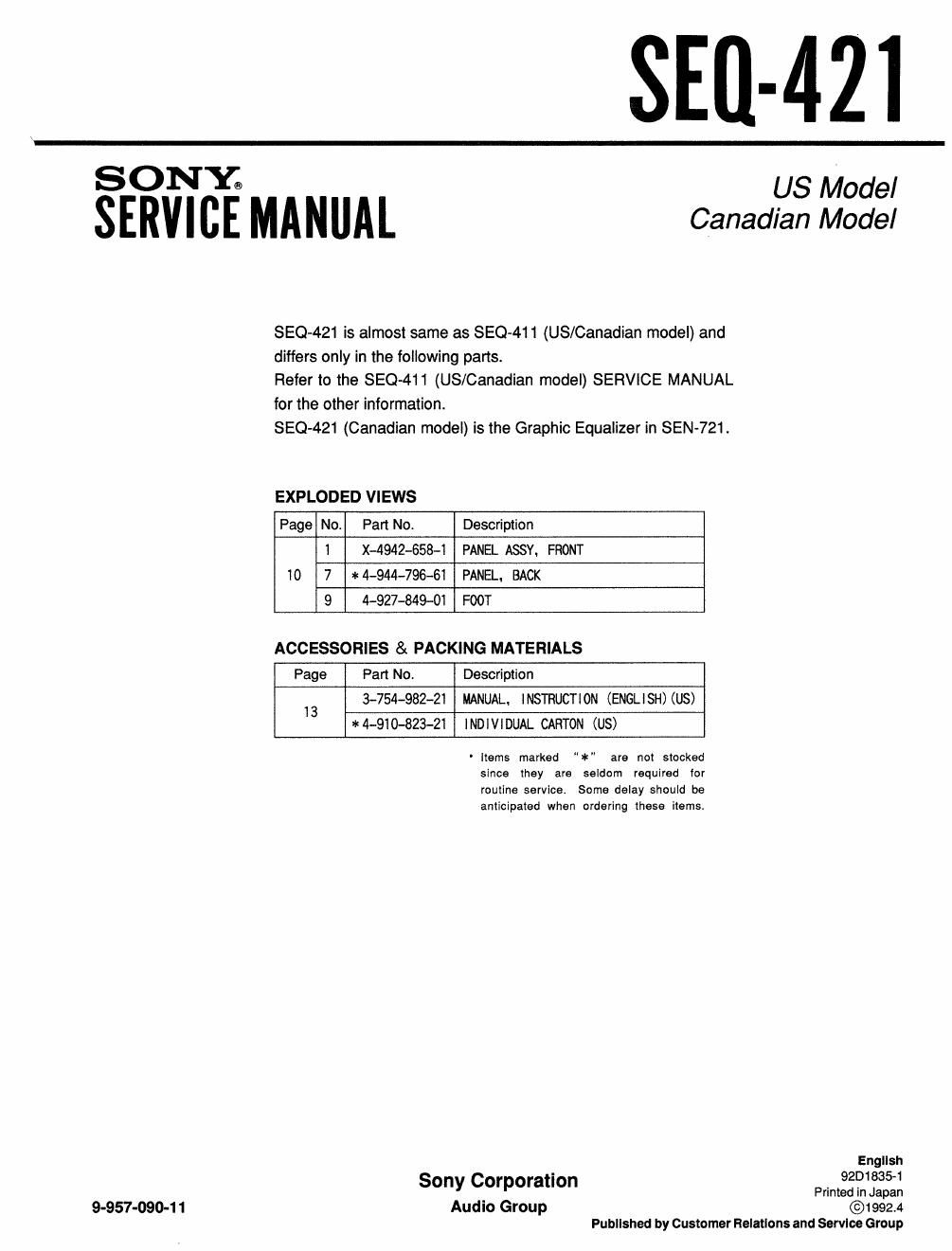

Sin-421
SCJNX®
SERVICE MANUAL
US Model
Canadian Model
SEQ~421 is almost same as SEQ'411 (US/Canadian model) and
differs only in the following parts.
Refer to the SEQ-411 (US/Canadian model) SERVICE MANUAL
for the other information.
SEQ-421 (Canadian model) is the Graphic Equalizer in SEN-721.
EXPLODED VIEWS
Page No.
Part No.
Description
l
X-4942-658-l
PANEL ASSY. FRONT
10
* 4-944-796-61
PANEL. BACK
4-927-849-01
FOOT
ACCESSORIES & PACKING MATERIALS
Page
Part No.
Description
13
3-754-982-21
MANUAL. INSTRUCTION (ENGLISH) (US)
* 4-910-823-21
INDIVIDUAL CARTON (us)
9-957-090-1 1
' Items marked *" are not stocked
since they are seldom required for
routine servlce. Some delay should be
anticipated when ordering these items.
Engllsh
Sony Corporation 92D1835~1
Printed in Japan
Audio Group ©1992.4
Published by Customer RelatIons and Servlce Group
