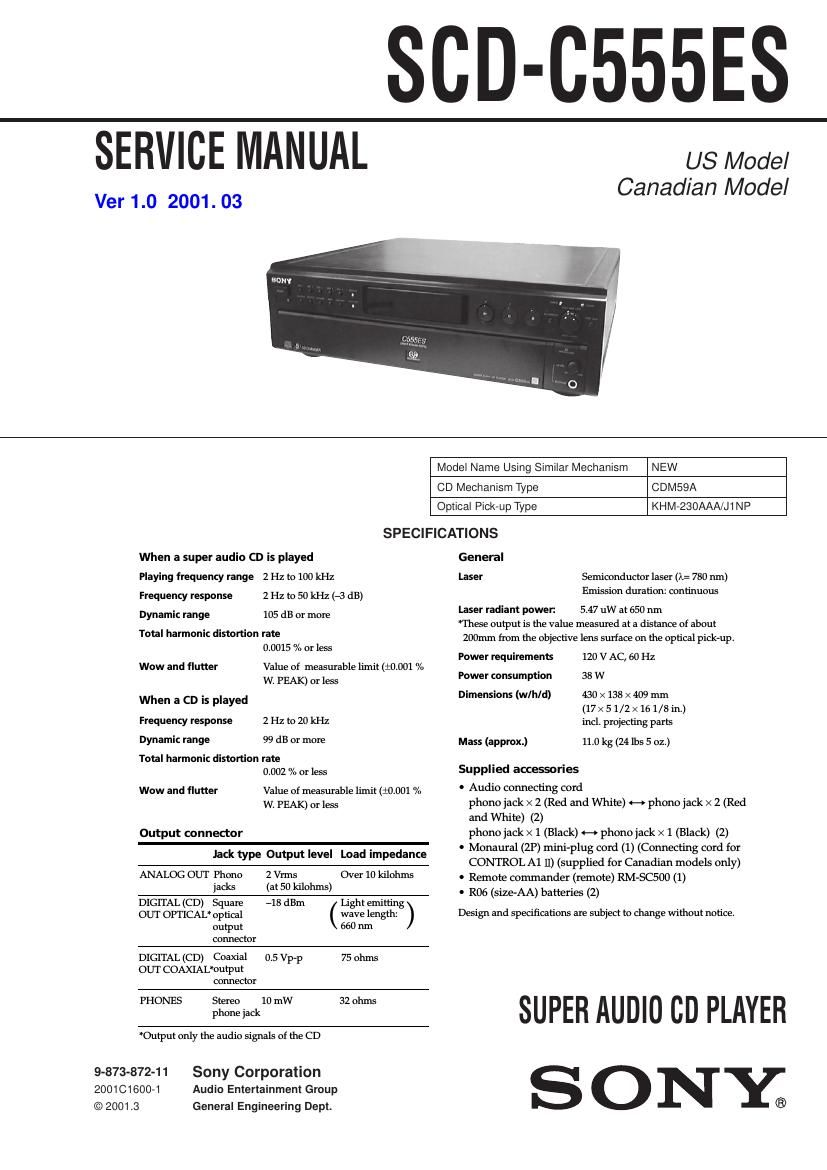

Extracted text from Sony SCD C555ES Service Manual (Ocr-read)
Page 1
2
SCD-C555ES
SAFETY-RELATED COMPONENT WARNING !!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH
MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT ร- LA SรCURITร!!
LES COMPOSANTS IDENTIFIรS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHรMATIQUES ET LA LISTE DES PIรCES SONT
CRITIQUES POUR LA SรCURITร DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIรCES SONY
DONT LES NUMรROS SONT DONNรS DANS CE MANUEL OU
DANS LES SUPPLรMENTS PUBLIรS PAR SONY.
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety checks before releasing the set to the customer:
Check the antenna terminals, metal trim, metallized knobs, screws,
and all other exposed metal parts for AC leakage. Check leakage as
described below.
LEAKAGE
The AC leakage from any exposed metal part to earth Ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microampers).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples of
a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2V AC range are suitable. (See
Fig. A)
Fig. A. Using an AC voltmeter to check AC leakage.
0.15ยตF To Exposed Metal
Parts on Set
1.5k-ฆ AC
voltmeter
(0.75V)
Earth Ground
TABLE OF CONTENTS
1. SERVICING NOTES (1) .............................................
3
2. GENERAL ........................................................................\
.. 4
3. DISASSEMBLY
3-1. Caseยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยท 6
3-2. Front Panel Section ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยท 6
3-3. Main Board ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยท 7
3-4. Audio Board ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยท 7
3-5. D-Power, I/O Board ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยท 8
3-6. CD Mechanism Deck (CDM59-DVBU5) ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยท8
3-7. Optical Pick-Up Block (KHM-230AAA/J1NP) ยทยทยทยทยทยทยทยทยทยทยทยท9
3-8. Table Assy ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 9
3-9. Tray, Sensor Board ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
10
3-10. Loading Motor Board ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยท 10
3-11. Adjusting Phase of Swing Gear and Gear (U/D) ยทยทยทยทยทยทยทยท11
4. DIAGRAMS
4-1. Block Diagrams ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยท 13
- RF/Servo Section ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
13
- Main Section-1 ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยท 14
- Main Section-2 ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยท 15
- Audio Section ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยท 16
- Display/Power Section ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยท 17
4-2. Schematic Diagram RF Section ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยท18
4-3. Printed Wiring Board RF Section ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยท19
4-4. Printed Wiring Board Main Section (Side A) ยทยทยทยทยทยทยทยทยทยทยท20
4-5. Printed Wiring Board Main Section (Side B) ยทยทยทยทยทยทยทยทยทยทยท21
4-6. Schematic Diagram Main Section (1/5) ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยท22
4-7. Schematic Diagram Main Section (2/5) ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยท23
4-8. Schematic Diagram Main Section (3/5) ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยท24
4-9. Schematic Diagram Main Section (4/5) ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยท25
4-10. Schematic Diagram Main Section (5/5) ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยท26
4-11. Schematic Diagram Audio Section (1/2) ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท27
4-12. Schematic Diagram Audio Section (2/2) ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท28
4-13. Schematic Diagram D-Power Section ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยท29
4-14. Printed Wiring Board Audio Section ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยท30
4-15. Printed Wiring Board In Out/D-Power Section ยทยทยทยทยทยท31
4-16. Schematic Diagram In Out Section ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยท31
4-17. Schematic Diagram Display Section ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยท32
4-18. Printed Wiring Board Display Section ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยท33
4-19. Schematic Diagram HP Section ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยท34
4-20. Printed Wiring Board HP Section ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยท35
4-21. Schematic Diagram Sensor Section ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยท36
4-22. Printed Wiring Board Sensor Section ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยท37
4-23. Schematic Diagram Power Section ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยท38
4-24. Printed Wiring Board Power Section ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยท39
4-25. IC Block Diagrams ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 40
4-26. IC Pin Function Description ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยท44
5. SERVICING NOTES (2) ................................................ 57
6. TEST MODE ...................................................................... 58
7. EXPLODED VIEWS
7-1.Case Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยท 74
7-2.Front Panel Section ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยท 75
7-3.Main Chassis Section ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท\
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 76
7-4.CD Mechanism (CDM59-DVBU5) -1 Section ยทยทยทยทยทยทยทยทยทยทยทยทยทยท77
7-5.CD Mechanism (CDM59-DVBU5) -2 Section ยทยทยทยทยทยทยทยทยทยทยทยทยทยท78
8. ELECTRICAL PARTS LIST ........................................ 79
Page 2
3
SCD-C555ES
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
LASER DIODE AND FOCUS SEARCH OPERATION
CHECK
Carry out the S curve check in CD section adjustment and check
that the S curve waveform is output three times.
Notes on chip component replacement
- Never reuse a disconnected chip component.
- Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
- Keep the temperature of soldering iron around 270 หC
during repairing.
- Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
- Be careful not to apply force on the conductor when soldering
or unsoldering.
This appliance is classified as a CLASS 1 LASER product.
The CLASS 1 LASER PRODUCT MARKING is located on the
rear exterior.
SECTION 1
SERVICING NOTES (1)
NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repain parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
The emission check enables continuous checking of the S curve. When the bottom plate is removed, the RF board can be checked.
eleven screws
(BVTP3 ร 8)
RF board
bottom plate
