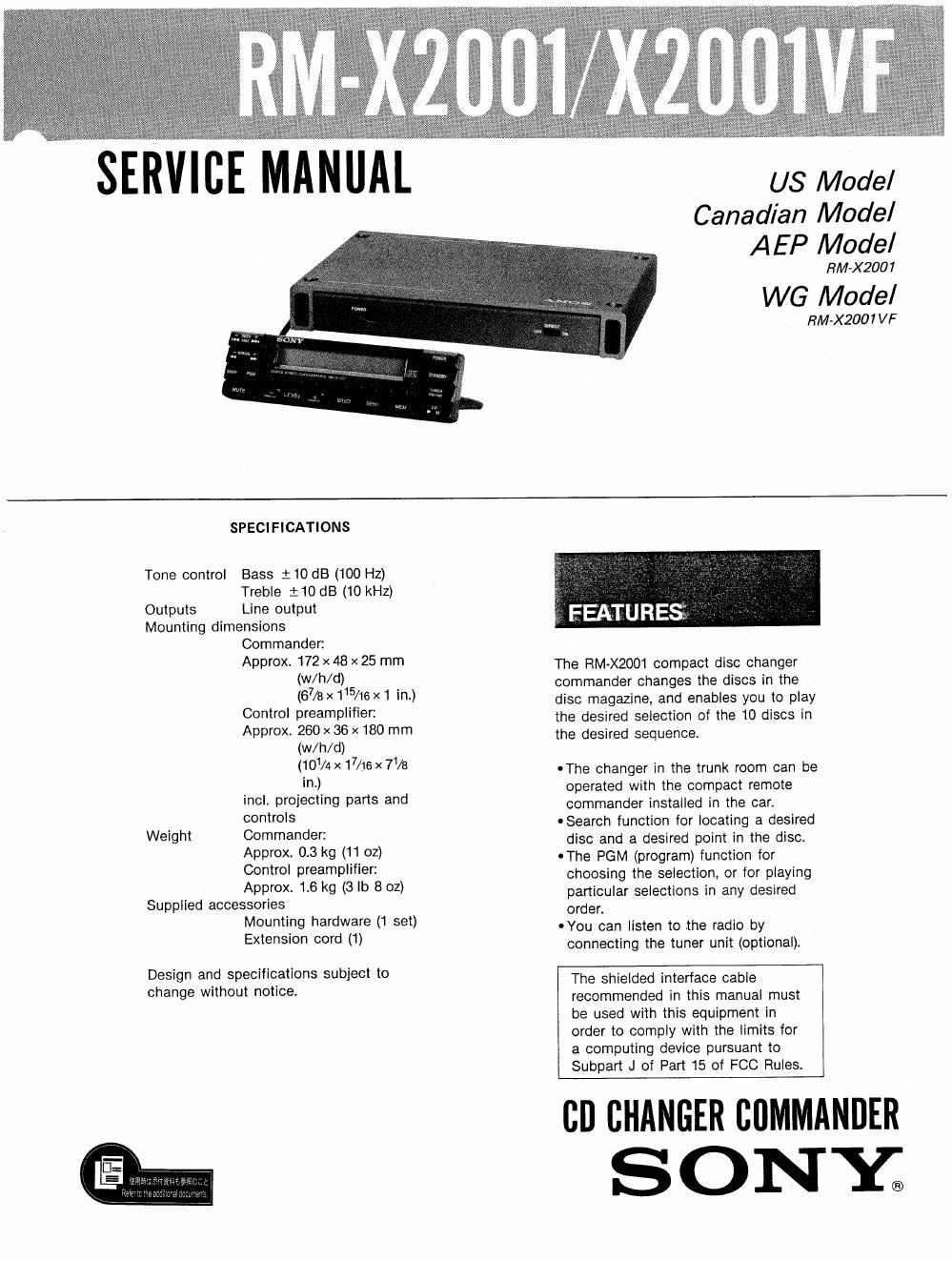

Page 1

SERVICE MANUAL

US Model
Canadian Model
AEP Model

RM-X 200 1

WG Model

RM-X 200 1 VF

SPECIFICATIONS

Tone control Bass :10 dB (100 Hz)
Treble :10 dB (10 kHz)

Outputs Line output
Mounting dimensions
Commander:
Approx. 172 x 48 x 25 mm
(w/h/d)

(67/8x115/1ex1 in.)
Control preamplifier:
Approx. 260 x 36 x 180 mm
(w/h/d)
(101/4 x 17/16 x 71/8
in.)
incl. projecting parts and
controls
Weight Commander:
Approx. 0.3 kg (11 02)
Control preamplifier:
Approx. 1.6 kg (3 lb 8 oz)
Supplied accessories
Mounting hardware (1 set)
Extension cord (1)

Design and specifications subject to
change without notice.

: FEATURES;

The RM-X2001 compact disc changer
commander changes the discs in the
disc magazine, and enables you to play
the desired selection of the 10 discs in
the desired sequence.

'The changer in the trunk room can be
operated with the compact remote
commander installed in the car.

'Search function for locating a desired
disc and a desired point in the disc.

OThe PGM (program) function for
choosing the selection, or for playing
particular selections in any desired
order.

-You can listen to the radio by
connecting the tuner unit (optional).

The shielded interface cable
recommended in this manual must
be used with this equipment in
order to comply with the limits for
a computing device pursuant to
Subpart J of Part 15 of FCC Rules.

CD CHANGER CDMMANDER
SONY;

Page 2

RM-X2001/X2001VF

TABLE OF CONTENTS

m Mg Page Section [121.9 Page
Specifications """""""""""""""""""" l 2,3 Hideaway Section Printed Wiring Boards ----- 10
Features """""""""""""""""""""""" 1 2-3, Hideaway Section Schematic Diagram ------- 13
1. GENERAL 3. EXPLODED VIEWS ------------------- 16
Location and Function of Controls ----------- 2
Installation of the Remote Commander ------- 3 4' ELECTRICAL PARTS LIST ------------ 18
Connections ............................. 4

2. DISASSEMBLY

21. Remote Commander Section

Printed Wiring Boards --------------------- 5
22 Remote Commander Section
Schematic Diagram ----------------------- 7

SECTION 1
GENERAL

LOCATION AND FUNCTION OF CONTROLS

Numeric

RADIO

- SEEK + button

544 AMS 5» button

Dtsplly Window

Reset button

POWER button

Press to turn the power on and
Off.

STANDBV button

P1655 lhls button to tum the CD
player and tuner olt. when a
cassette deck is connected lo
the unit. press to switch to the
cassette play,

TUNER FM/AM button

t RADIO t,

V MANUAL + button
00
« » button

SHUFF (shunt. play) button

MUTE bulton
Fress to decrease the volume
temporarilyv Press again to
retease it.

CD bll button

MEM (mortuary) button

pom (progrlm play) button

sans (senllllvlty) button

LEVEL button SELECT button
