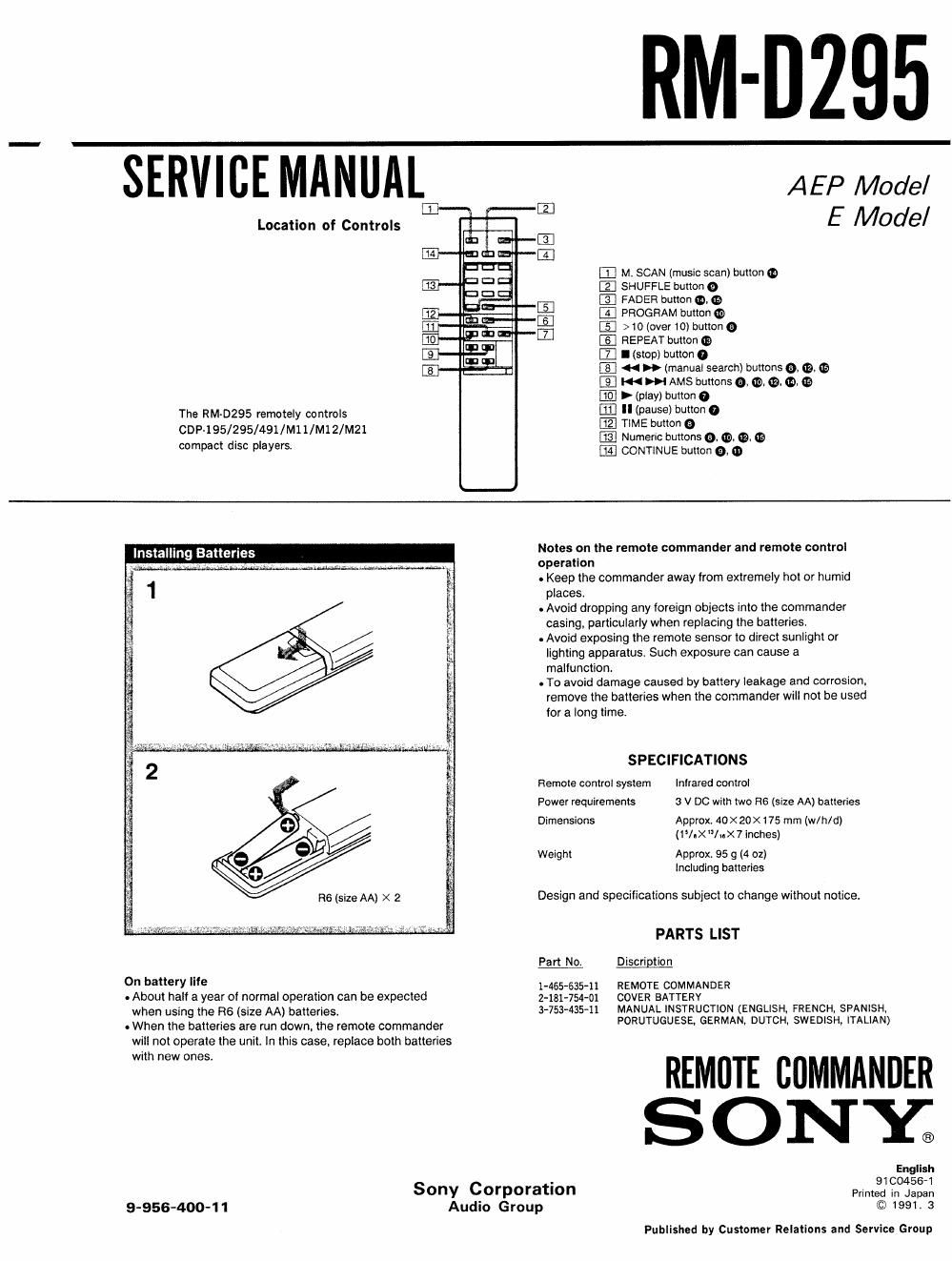

RM-DZQS

SERVICE MANUAL

Location of Controls

The RM-DZQS remotely controls
GDP-195/295/491/M11/M12/M21
compact disc players.

AEP Mode/
E Model

M. SCAN (music scan) button Q
SHUFFLE button 9

FADER button 0, G

)1] PROGRAM button 0

[E > 10 (over 10) button 0

[s] REPEAT button Q

[E I (stop) button 0

« » (manual search) buttons 9. Q, G
E] i« m AMS buttons 9. in, e, w. e
[E > (play) button 0

ll (pause) button 0

El TlME button 9

[lg Numenc buttons 0, Q, @- Q
CONTINUE button a, o

Installing Batteries

1

On battery life

. About halt a year of normal operation can be expected
when using the R6 (size AA) batteries.

- When the batteries are run down, the remote commander
will not operate the unit. In this case, replace both batteries
with new ones.

Notes on the remote commander and remote control

operation
. Keep the
places.

commander away lrom extremely hot or humid

. Avoid dropping any foreign objects into the commander
casing, particularly when replacing the batteries.

. Avoid exposing the remote sensor to direct sunlight or
lighting apparatus. Such exposure can cause a
malfunction.

. To avoid damage caused by battery leakage and corrosion.
remove the batteries when the commander will not be used

tor a long

Remote control system
Power requirements

Dimensions

Weight

Design and

Part No.

1-465>635- ll
2-181-75401
3-753~435-11

Sony Corporation

9-956-400-1 1

Audio Group

time.

SPECIFICATIONS
lulrared control
3 V DC with two R6 (size AA) batteries

Approx. 40X 20 X175 mm (w/h/d)
(FAX "/ux 7 inches)

Approx. 95 g (4 oz)
Including batteries

specifications subject to change without notice.

PARTS LIST

D_issLiP_ti0_n

REMOTE COMMANDER

COVER BATTERY

MANUAL INSTRUCTlON (ENGLISH. FRENCH, SPANISH,
PORUTUGUESE, GERMAN, DUTCH, SWEDISH, lTALlAN)

REMlllE CflMMANDER
S ONY;

English
91(304561
Printed in Japan
© 1991. 3

Published by Customer Relations and Service Group
