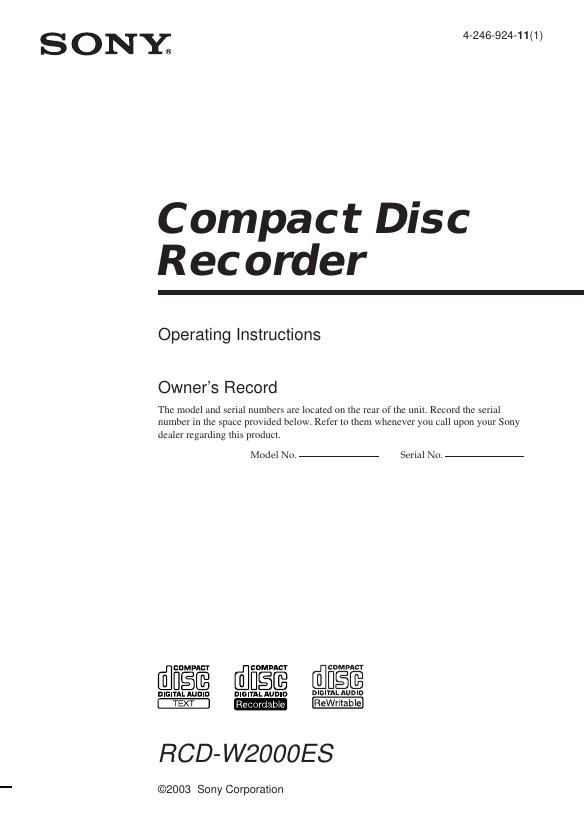

Sony RCD W2000ES Owners Manual

Page 1

2 WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. This symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. For the customers in the U.S.A. Dont throw away the battery with general house waste, dispose of it correctly as chemical waste. WARNINGThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -“Reorient or relocate the receiving antenna. -“Increase the separation between the equipment and receiver. -“Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -“Consult the dealer or an experienced radio/TV technician for help. CAUTIONYou are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Page 2

3 Table of Contents Getting Started Unpacking ............................................. 6 Hooking Up the System ........................ 6 This Unit Can Use the Following Discs ........................ 7 Basic Operations Playing a CD ......................................... 8 Playing a disc with MP3 files ................ 9 Using the Display ................................ 13 Locating a Specific Track .................... 15 Locating a Particular Point in a Track ...................................... 16 Playing Tracks/Discs Repeatedly (Repeat Play) ................................. 17 Playing in Random Order (Shuffle Play) ................................ 18 Creating Your Own Program (Program Play) .............................. 19 Playing Both Deck Simultaneously (Dual Play) .................................... 20 Recording/Editing Before Recording ................................ 21 Synchro-Recording a CD to CD-R or CD-RW ......................................... 23 Recording on a CD-R or CD-RW Manually ....................................... 26 Adjusting the Recording Level ............ 28 Marking Track Numbers While Recording ...................................... 29 Fading In and Out recording (Rec Fader) .................................... 30 Finalizing a CD-R or CD-RW ............. 30 Unfinalizing a CD-RW ........................ 31 Erasing Tracks of a CD-RW ............... 32 Labeling Tracks/Discs ......................... 33 Useful Tips for Recording ................... 34 Additional Information Using the Menu ................................... 36 Messages ............................................. 37 Self-diagnosis Function ....................... 38 System Limitations .............................. 39 Troubleshooting ................................... 39 Specifications ...................................... 41

Page 9

10 The playback order of the MP3 files The playback order of the folders and files is as follows: Tree1 Tree2 Tree3 Tree4 Tree5 (root) Notes -This player cannot read the MP3 files if the file name does not end with the extension .MP3. -Folders that do not include MP3 files are skipped. -When you insert a disc with many trees, it takes a longer time to start playback. We recommend that you make only one or two trees for each disc. -Maximum total number of MP3 files and folders is 300, and maximum number of folders is 150 (including root folder and empty folders). -If the maximum number of folders or MP3 files is exceeded, the additional folders/MP3 files are not recognized. For example, if you insert the disc with 151 folders, the player reads only 150 folders. -This unit can play MP3 files in folders nested up to 8 layers deep in the folder tree. 1 2 6 3 5 7 1 2 6 7 4 8 3 5 8 4 9 Folder (album) MP3 files (tracks) Notes -With formats other than ISO 9660 level 1, folder names or file names may not be displayed correctly. -When naming, be sure to add the file extension .MP3 to the file name. -If you add the extension .MP3 to a file other than MP3, the unit cannot recognize the file properly and will generate random noise that could damage your speakers. -The following discs take a longer time to start playback. -“a disc recorded with a complicated tree structure. -“a disc recorded in Multi Session. -“a disc to which data can be added (non-finalized disc). Cautions when playing a disc that is recorded in Multi Session CD-DA (audio) data or MP3 files stored on a Multi Session CD may be subject to some restrictions on playback. -“If the disc begins with a CD-DA session, it is recognized as a CD-DA (audio) disc, and MP3 playback is not possible. -“If the disc begins with an MP3 session, it is recognized as an MP3 disc, and playback continues until a CD-DA (audio) session is encountered. When the unit recognizes CD-DA data, MP3 playback is not possible. -“The playback range of an MP3 disc is determined by the tree structure of files produced by analyzing of the disc. -“A disc with a mixed CD format will be recognized as a CD-DA (audio) disc.
