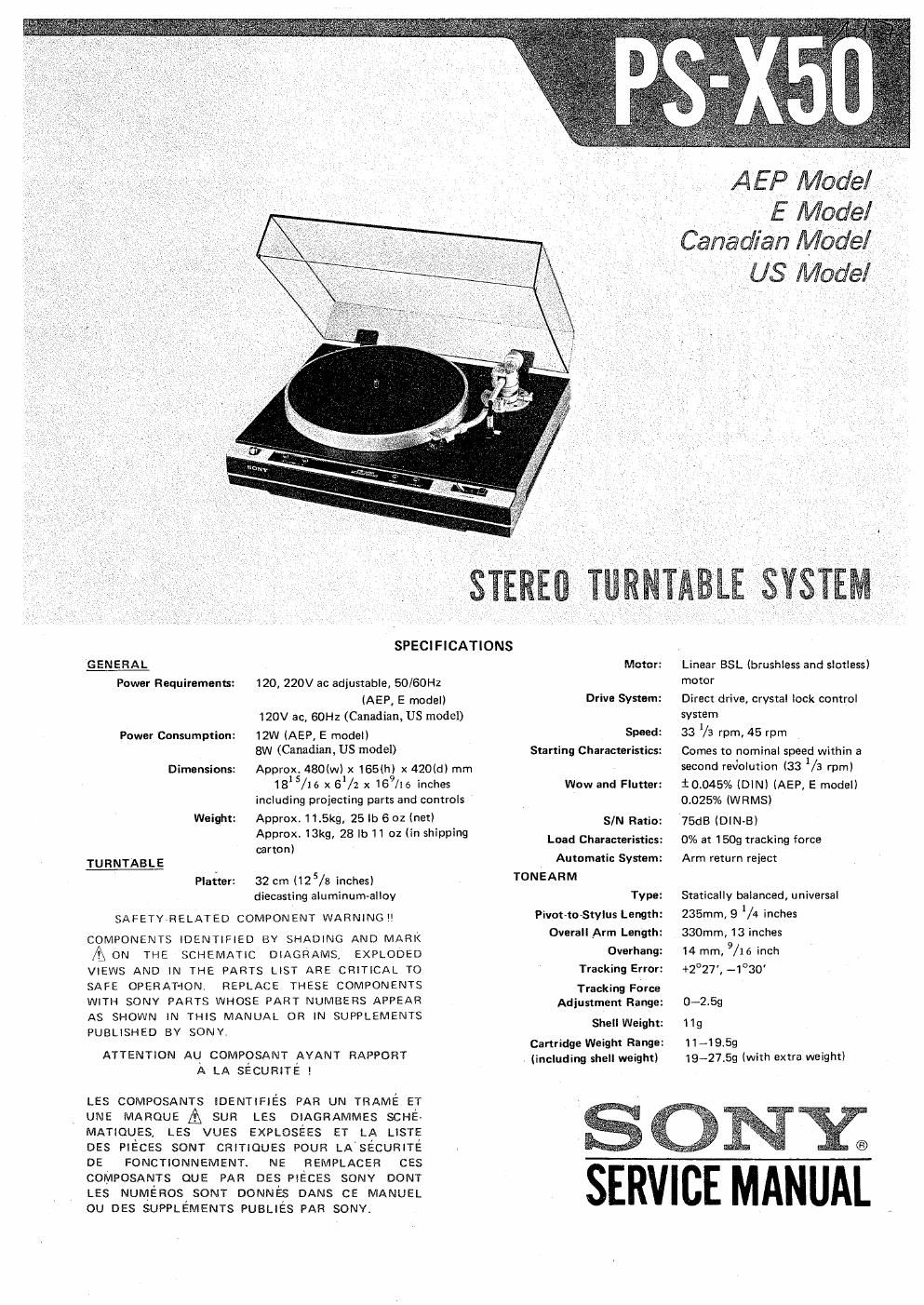

SPECIFICATIONS

GENERAL
Power Requirements: 120. 220V ac adjustable, SO/SOHZ
(AEP, E model)
120V ac, SOHz (Canadian, US model)
12W (AEP, E model)
8W (Canadian US model)

Approx. 480M)l x 165(h) x 420ld) mm
18 5/16 x6 /2 x 16 9/16 inches
including proiecting parts and controls '

Approx. 11.5kg, 25 lb 6 oz (net)
Approx. 13kg; 28 lb 11 oz (in shipping
carton)

Power. Consumption:

Dimensions:

Weight:

TURNTABLE
32 cm (125/3 inches)
diecasting aluminum-alloy

Platter:

SAFETY-RELATED COMPONENT WARNING!

COMPONENTS IDENTIFIED BY SHADING AND MARK
A ON THE SCHEMATIC DIAGRAMS, EXPLODED
VIEWS AND IN THE PARTS LIST ARE CRITICAL TO
SAFE OPERAT'ION, REPLACE THESE COMPONENTS
WITH SONY PARTS WHOSE PART NUMBERS APPEAR
AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BV SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE !

LES COMPOSANTS IDENTIFIES PAR UN TRAME ET
UNE MAROUE A SUFI LES DIAGRAMMES SCHE
MATIQUES LES VUES EXPLOSEES ET LA LISTE
DES PIECES SONT CRITIQUES POUFI LA SECURITE
DE FUNCTIONNEMENT. NE REMPLACER CES
COMPOSANTS QUE PAR DES PIECES SONV DONT
LES NUMEROS SONT DONNES DANS CE MANUEL
0U DES SUPPLEMENTS PUBLIES PAR SONV.

Motor:

Drive System:

Speed:
Starting Characteristics:

Wow and Flutter:

SIN Ratio:
Lead Characteristics:
Automatic System:

TONEARM

Type:

Phone-Stylus Length:
Overall _Arm Length:
Overhang:

Tracking Error:

Tracking Force

Adjustment Range:
Shell Weight:
Cartridge Weight Range:

(including shell weight)

Linear BSL (brushless and slotless)
mOIDI'

Direct drive, crystal lock control
sy51em

33 V3 rpm, 45 rpm

Comes to nominal Speed within a
second reVolution (33 1/3 rpm)
$004596 (DIN) (AEP, E model)
0.025% (WRMS)

75dB (DIN-B)

0% at 1509 tracking force

Arm return reject

Statically balanced, universal
235mm, 9 1/4 inches
330mm, 13 inches

14 mm, 9/1£I inch

+2°273 -1°3o'

0-259

119

1 1-1959
19-2759 (with extra weight)

SERVICE MANUAL

PS X50

SERVICING NOTE

1. Perform the checking of the adjustment a few min-
utes after the power switch is turned on.

2. When replacing the pilot lamp of automatic-
return detection, adjust the automatic-return
adjustment (13 page).

3. Platter handling,

bottom View of platter

Be sure not to spoil me magnetic
coating {dark brown color}.

4. When adjusting the set, confirm that the transit
screws alre removed.
I

transit scre ws

{rec/l

MODEL IDENTI FICATIONS
- Specification Label -
US, Canadian model AEP, E model
SONY STEREO TURNTABLE SYSTEM SONY" STEREO TURNTABLE SYSTEM
MODEL NOlPS-XSO MODEL N0: PS-XSO
AC |20V 60Hz 8w ~|20.220V 50/60Hz I2w
SERIAL N0. SERIAL N0. '
MADE IN JAPAN MADE IN JAPAN
MODEL IDENTIFICATIONS
- Power Cord - 3
E1 model: euro-plug E2 model: parallel-blade plug
1551-53041 1551-473-31

E)

I
I
