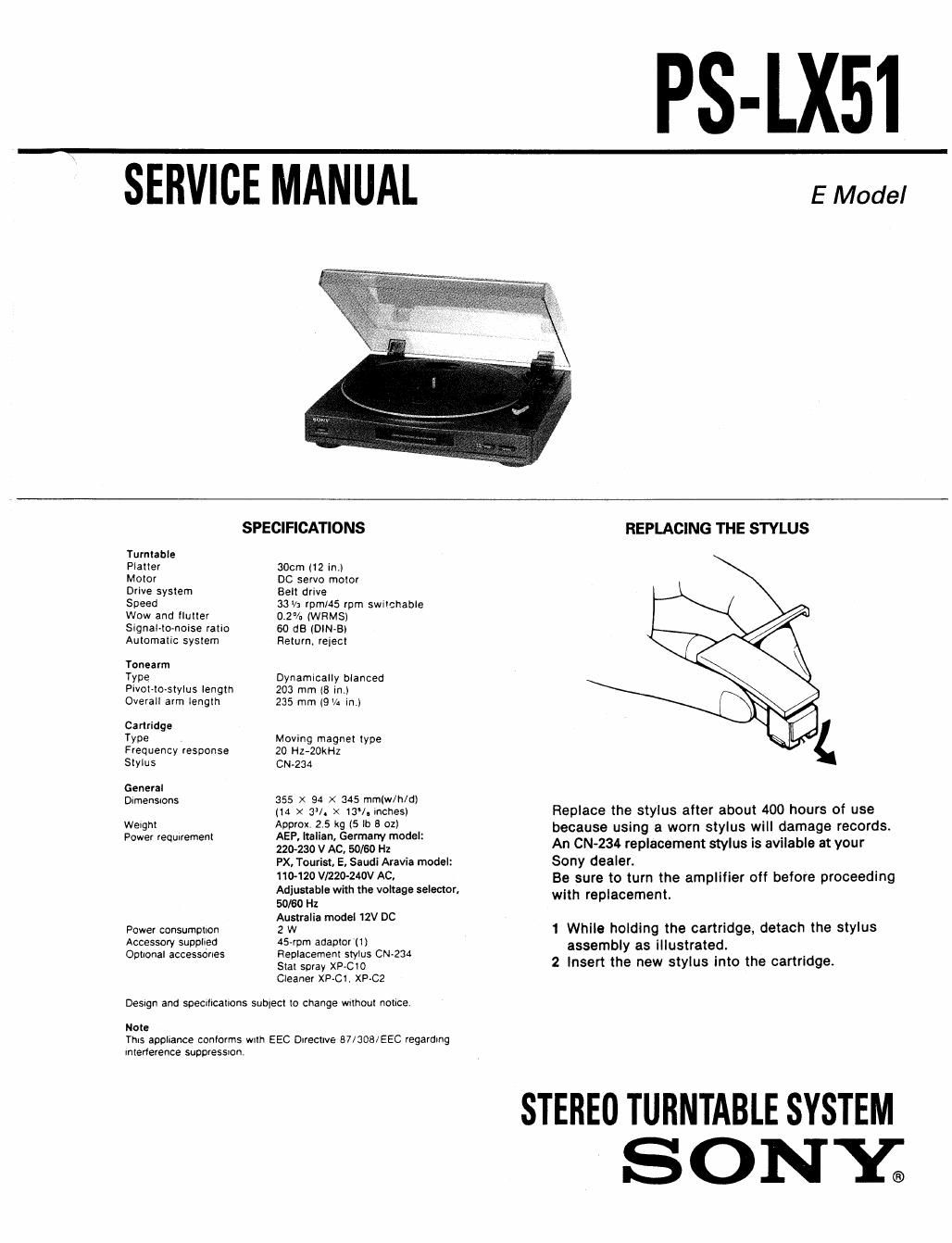

PS-LX51
SEITTIICE MANUAL
E Model
SPECIFICATIONS
Turntable
Platter 30cm (12 in.)
Motor DC servo motor
Drive system Belt drive
Speed 33V: rpm/45 rpm switchable
Wow and tlutter 0.2% tWFlMSl
Signallo-noise ratio 60 dB (DlN-Bl
Automatic system Return. reiect
Tonearm
Type Dynamtcally blanced
Plvot-to-stylus length 203 mm (B in.)
Overall arm length 235 mm (9% in)
Cartridge
Type Moving magnet type
Frequency response 20 Hz-20kHz
Stylus CN-234
General
OlmefISlOnS 355 X 94 X 345 mmtw/h/d)
(14 x 3W. x 13V. Inches)
Weight Approx. 2.5 kg (5 lb 8 oz)
Power requlremenl AEP, ltalien, Germany model:
220<230 V AC. 50/60 Hz
PX, Tourist, E, Saudi Aravia model:
110-120 Vl220>240V AC,
Adjustable with the voltage selector,
50/60 Hz
Australia model 12V DC
Power consumption 2 w
Accessory supplied «SS-rpm adaptor)
Replacement stylus CN-234
Stat spray XP-Clo
Cleaner XPCL XP-CZ
Optional accessories
Desrgn and soecrtrcatlons when to change wuthout notlce.
Note
ThtS appliance contorms with EEC Directive 67/308/EEC regarding
mterlerence suppresswnt
REPLACING THE STYLUS
Replace the stylus after about 400 hours of use
because using a worn stylus will damage records.
An CN-234 replacement stylus is avileble at your
Sony dealer.
Be sure to turn the amplifier off before proceeding
with replacement.
1 While holding the cartridge, detach the stylus
assembly as illustrated.
2 Insert the new stylus into the cartridge.
STEREO TURNTABLE SYSTEM
SONY;
LOCATION OF CONTROLS
m-.
T
III 45-er adaptor
I2] Center spindle
El POWER switch
E] Cueinglever
IE Tonearm
E Arm rest
cartridge
REJECT button
El Speed selector
