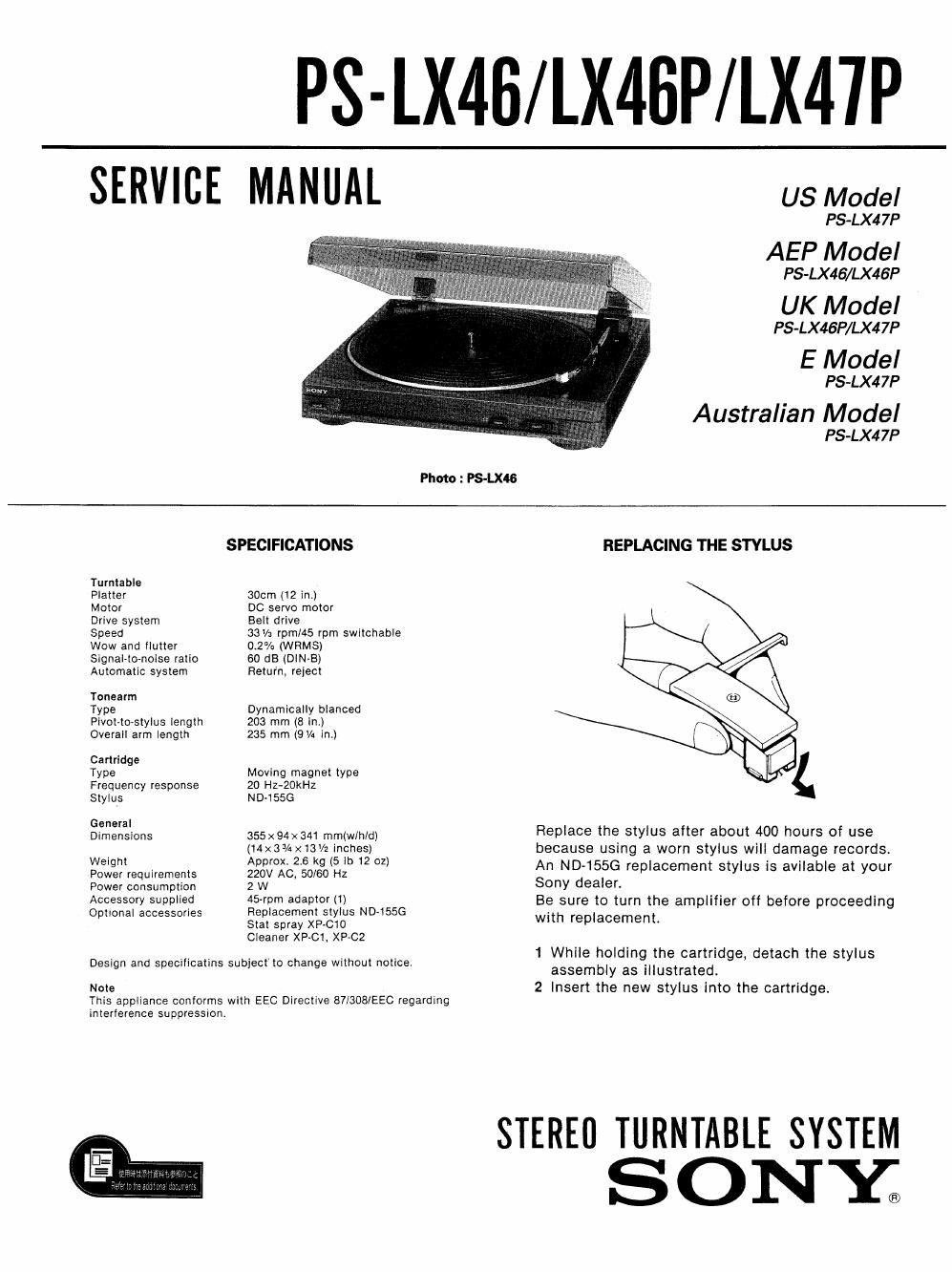

Page 1
PS-LX4B/LX4BP/LX4'IP
SERVICE MANUAL
US Model
PS-LX47P
AEP Model
PS-LX46/LX46P
UK Model
PS-LX46P/LX47P
E Model
PS-LX47P
Australian Model
PS-LX47P
Photo : PS-LX46
SPECIFICATIONS
Turntable
Platter 30cm (12 in.)
Motor DC servo motor
Drive system Belt drive
Speed 331/: rpm/45 rpm switchable
Wow and llutter
SignaHo-noise ratio
Automatic system
0.2% (WRMS)
60 dB (DIN»B)
Return, reject
Tonearm
Type Dynamically blanced
Pivot-to-stylus length 203 mm (8 in.)
Overall arm length 235 mm (91/4 in.)
Cartridge
Type Moving magnet type
Frequency response 20 Hz-ZOkHz
Stylus ND-lSfiG
General
Dimensions 355x94x341 mm(wlhld)
(14x3 3/4 x 13 V2 inches)
Weight Approx, 2.6 kg (5 lb 12 02)
Power requirements 220V AC, 50/60 Hz
Power consumption 2 W
45-rpm adaptor (1)
Replacement stylus NDvlSSG
Stat spray XPAC1O
Cleaner XP-C1, XP-CZ
Accessory supplied
Optional accessories
Design and speciticatins subject'to change without notice.
Note
This appliance conforms with EEC Directive 87/3OSIEEC regarding
interference suppreesmn.
REPLACING THE STYLUS
Replace the stylus after about 400 hours of use
because using a worn stylus will damage records.
An ND-155G replacement stylus is avilable at your
Sony dealer.
Be sure to turn the amplifier off before proceeding
with replacement.
1 While holding the cartridge, detach the stylus
assembly as illustrated.
2 Insert the new stylus into the cartridge.
STEREO TURNTABLE SYSTEM
SONY;
Page 2
PS-LX46/LX46P/LX47P
REPAIRING macmnou (mm/map only) mmem
We! wpply
[To supply B+voltagel wilh white line out corner
The power of fllis unit is fed from HST-D201, D301, D301CD or
DSOICD. Because of this, connect the regulated power supply as
illusuated right when this unit alone operates.
DD
'0
BLK 3P connector
LOCATION AND FUNCI10N OF CONTROLS
\wm my
El Center spindle
E} Rubber mat
El Tumble platter
E rowan swash «:9wa only)
El Guelng luau/1)
Tonearm
Arm rest
Cartridge
E] REJECT button
srsm salon button
Allows selection of 45rpm or 33rpm turntable speed.
