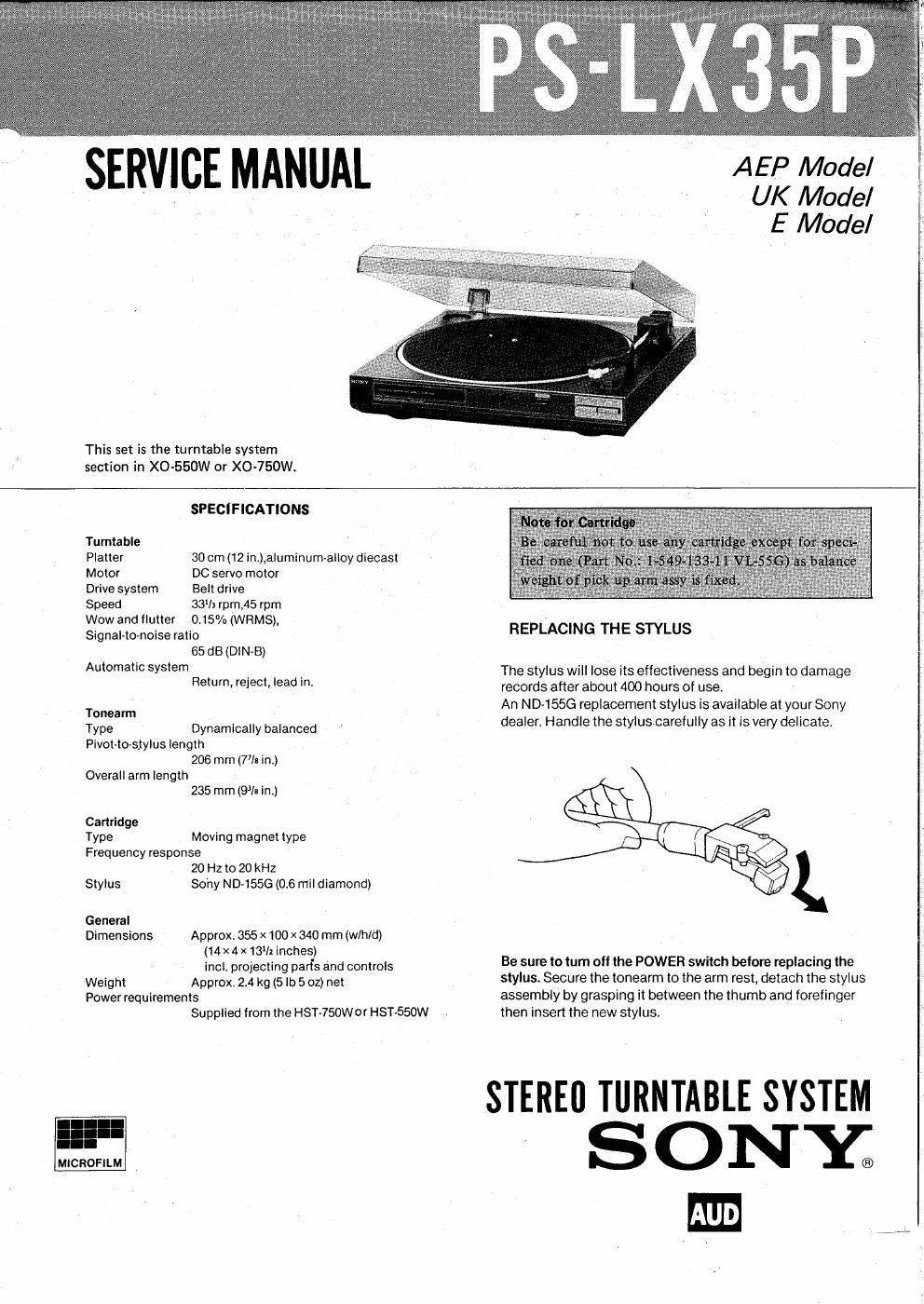

Page 1

SERVICE MANUAL

AEP Model

UK Model
E Model

This set is the turntable system
section in XO-550W or XO-750W.

SPECIFICATIONS
Turntable
Platter 30 cm (12 in.),aluminum-alloy diecast
Motor DC servo motor
Drive system Belt drive
Speed 33% rpm,45 rpm

Wowandllutter 0,15%(WRMS),
Signal-to-noise ratio

65 dB (DIN-B)
Automatic system

Return, reject, lead in.

Tonearm
Type Dynamically balanced
Pivot-to-stylus length

206 mm (77/: in.)
Overall arm length

235 mm (9% in.)

Cartridge
Type Moving magnet type
Frequency response
20 Hz to 20 kHz
Stylus Sohy ND-1556 (0.6 mil diamond)
General
Dimensions Approx. 355 x 100 X 340 mm (w/h/d)

(14 x 4 x 13% inches)
incl. projecting parts and controls
Weight Approx. 2.4 kg (5 Ib502) net
Power requirements
Supplied from the HST-750W or HST-550W

Elill

MICROFILM

REPLACING THE STYLUS

The stylus will lose its effectiveness and begin to damage
records after about 400 hours of use

An ND-155G replacement stylus Is available at your Sony
dealer. Handle the stylusoarelully as it is very delicate.

W2.

Be sure to tum off the POWER switch before replacing the
stylus. Secure the tonearm to the arm rest, detach the stylus
assembly by grasping it between the thumb and forefinger
then insert the new stylus.

STEREll TURNTABLE SYSTEM

SONY.
MT

Page 2

REPAIRING PRECAUTION , regularednc
, Power supply
[To spply B+ voltage] 3mm card 3P connector
The power of this unit is fed from HST-550W or 750 (BLKI / [:1 D
W. Because of this, connect the regulated powér sup- 1 [7ch
ply as illustrated right when this unit alone operates. END-IO .,,
0
0--o -
J l.-

with white line

LOCATION AND FUNCTION OF CONTROLS

Center spindle Rubber mat

N. ..,Cueing Iever(! !)

> Am rest

., SIZE selector

START button
STOP button

SPEED select button
