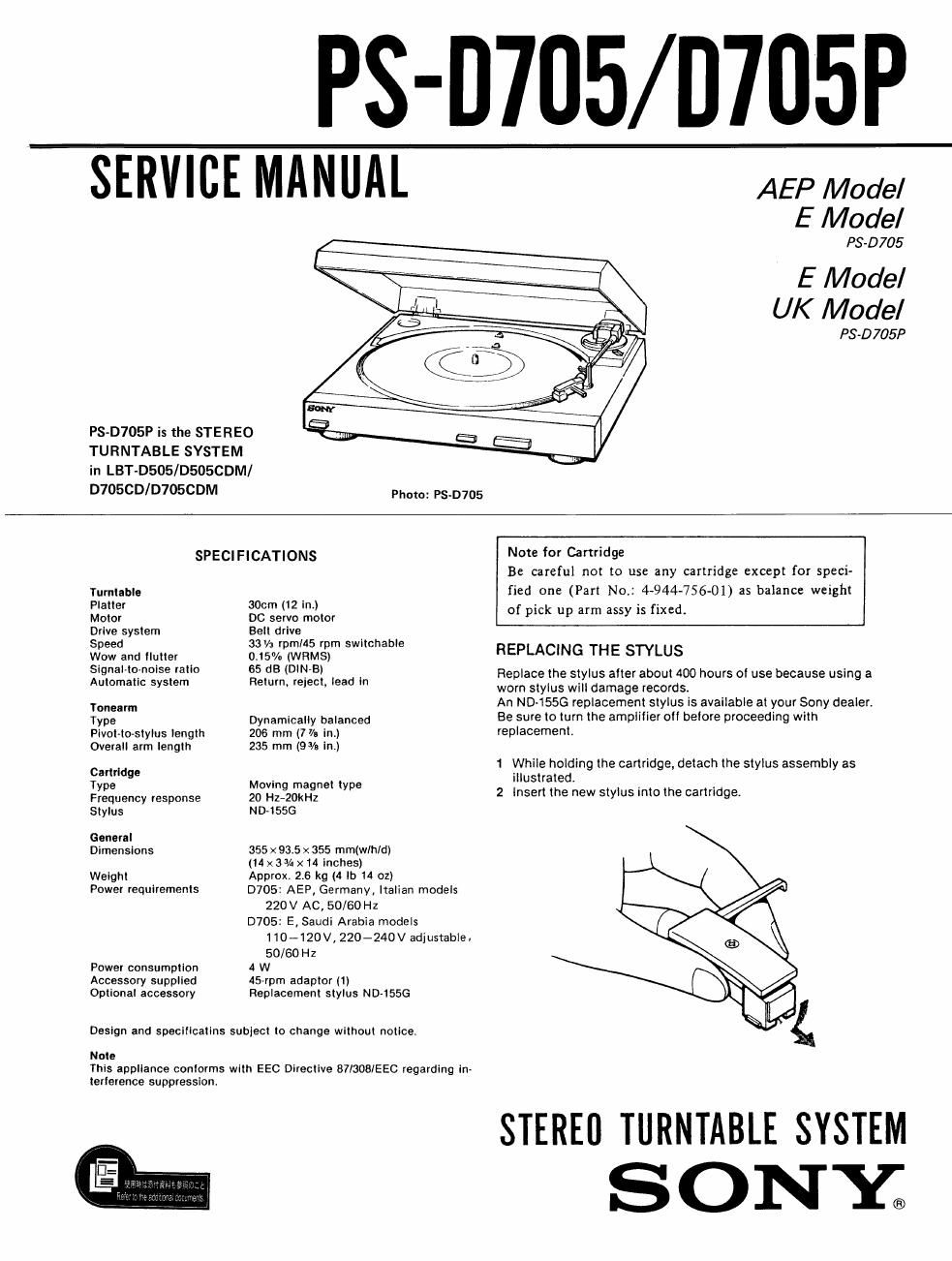

Page 1

PS-D705/D705P w

SERVICE MANUAL AEPMode/

E Model

PS-D705

E Model
UK Model

PS-D705P
PS-D705P is the STEREO
TURNTABLE SYSTEM
in LBT-DSOS/DSOSCDM/
D7050DlD705CDM mm: P543705
SPECIFICATIONS Nate for Cartridge
Be careful not to use any cartridge except for speci~

Turntable fled one (Part No.: 4-944-756-0 1) as balance weight
Platter 30cm (12 In.) . . .
Motor DC servo motor of pick up arm assy Is fixed.
Drive system Belt drive
Speed 33% rpm/45 rpm switchable
Wow and ilutter 0.15% (WRMS) REPLACING THE STYLUS
Slg"°"°'se 'au" 55 dB (D'N'B Replace the stylus alter about 400 hours oi use because using a
Automatic system Return, reyect, lead In wom Stylus will damage records.
new An ND-tSSG replacement stylus is available at your Sony dealer.
Type Dynamically balanced Be sure to turn the amplifier oil before proceeding with
Pivot-lo-stylus length 206 mm (7 V3 in.) replacement.
Overall arm length 235 mm (9% in.)

1 While holding the cartridge, detach the stylus assembly as
giggldge Moving magnet type illustrated.
Frequency response 20 Hz-20kHz 2 insert the new stylus Into the cartrldge.
Stylus ND-1SSG
General
Dimensions 355 x 93.5 x 355 mm(wlhld)

(14 x 33/4 x14 inches)

Weight Approx. 2.6 kg (4 lb 14 02)
Power requirements D705: AEP, Germany, ltalian models

220V AC, 50/60Hz
D705: E, Saudi Arabia models
110-120V, 220-240V adjustable,

50/60 Hz
Power consumption 4 W
Accessory supplied 45-rpm adaptor (1)
Optional accessory Replacement stylus ND-1556

Design and specificatlns subject to change without notice.

Note
This appliance coniorms with EEC Directive 87/308IEEC regarding in»
tertevence suppression.

STEREO TURNTABLE SYSTEM
SONY.

Page 2

PS-D705/D705P

SECTION 1
GENERAL
1-1. LOCATION OF CONTROLS
45-rpm adaptor-fl r-Record size sensor

\\/m /

POWER switchfi

START/STOP button

\

a E
k--SF"EED selector

r-Drop point adjustment hole

Jueing lever

Tonearm
rmrest
Cartrldg
REPAIRING PRECAUTION (PSD705P only)
[To supply B+ voltage]
The power of this unit is fed from HST-D505 or
TA-V705. Because of this, connect the regulated
power supply as illustrated right when this unit alone
operates.
ngulatodDC
3P connector pow-r supp/r
Scorecard
(BLKI D
m El
DC
I 4
o...__° _

with white [Inc
