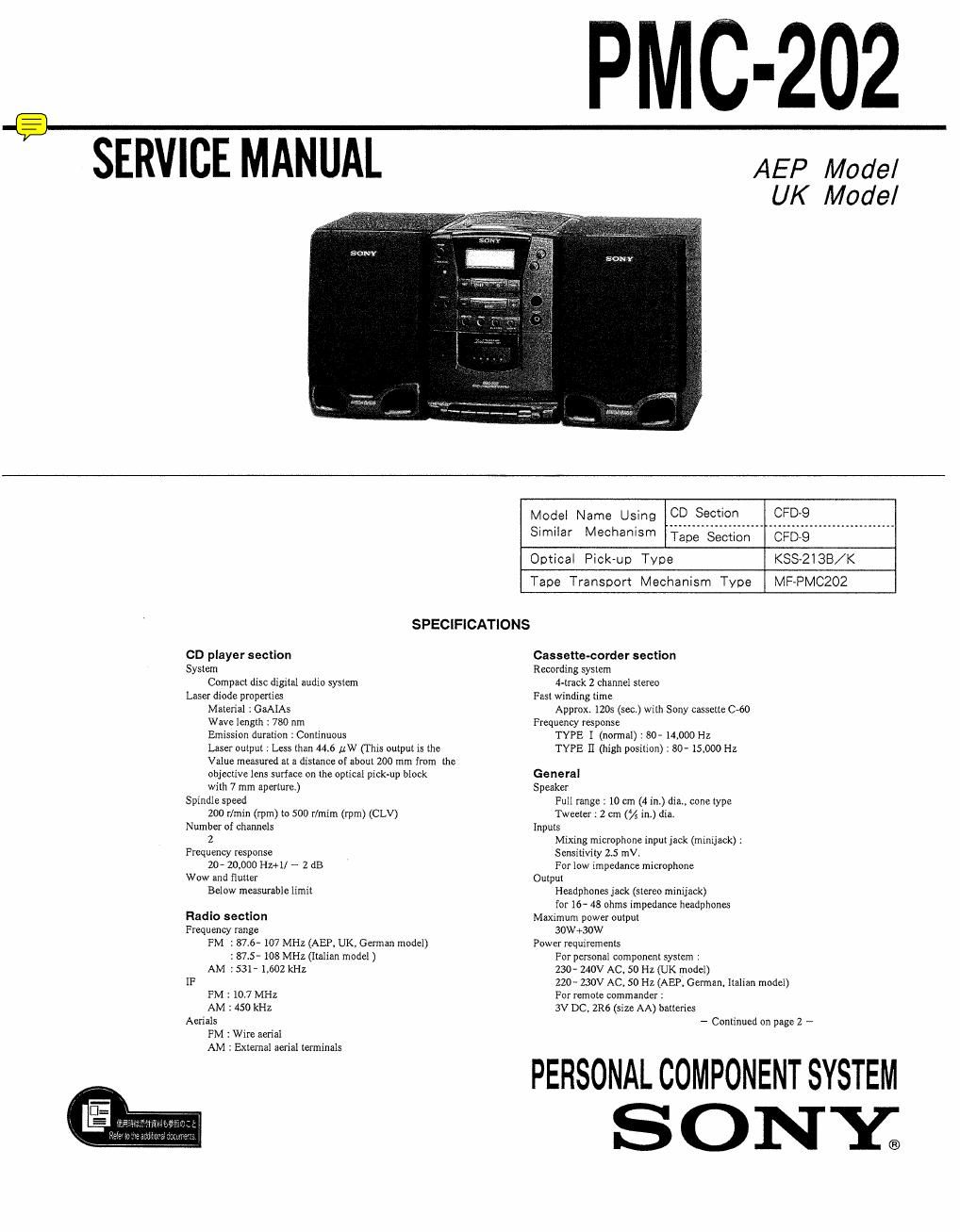

PMC-202
SERVICE MANUAL
AEP Model
UK Model
Model Name Using CD Section CFDVQ
Similar Mechanism Tangs-action CF09
Optical Pick-up Type KSS-ZlBB/K
Tape Transport Mechanism Type MF-PMCZOZ
SPECIFICATIONS
CD player section
System
Compact disc digital audio system
Laser diode properties
Material : GaAIAs
Wave length : 780 nm
Emission duration : Continuous
Laser output : Less than 44.6 nw (This output is the
Value measured at a distance of about 200 mm from the
objective lens surface on the optical pick-up block
with 7 mm aperture.)
Spindle speed
200 r/min (rpm) to 500 r/mim (rpm) (CLV)
Number of channels
2
Frequency response
20- Z0.000 Hz+ll -- 2 dB
Wow and flutter
Below measurable limit
Radio section
Frequency range
FM ; 87.6~ 107 MHz (AEP, UK. German model)
1875- 108 MHz (ltalian model)
AM :531- L602 kHz
[F
FM : 107 MHz
AM : 450 kHz
Aerials
FM 1 Wire aerial
AM : External aerial terminals
Cassette-corder section
Recording system
4-track 2 channel stereo
Fast winding lime
Approx. 120: (see) with Sony cassette C-w
Frequency response
TYPE I (normal) :80- 14.000 Hz
TYPE II (high position) : 80- 15,000 Hz
General
Speaker
Full range : 10 cm (4 in.) dial, tone type
Tweeter l 2 cm (A in.) ma,
inputs
Mixing microphone input jack (miniiack) :
Sensitivity 2.5 mV,
For low impedance microphone
Output
Headphones jack (stereo minijack)
for 16- 48 ohms impedance headphones
Maximum power output
30W+30W
Power requirements
For personal component system :
Z30- Z40V AC 50 Hz (UK model)
ZZO~ 230V AC, 50 Hz (AER German. Italian model)
For remote commander:
3V DC. 2R6 (size AA) batteries
- Continued on page Z -
PERSONAL COMPONENT SYSTEM
S 0 NY;
