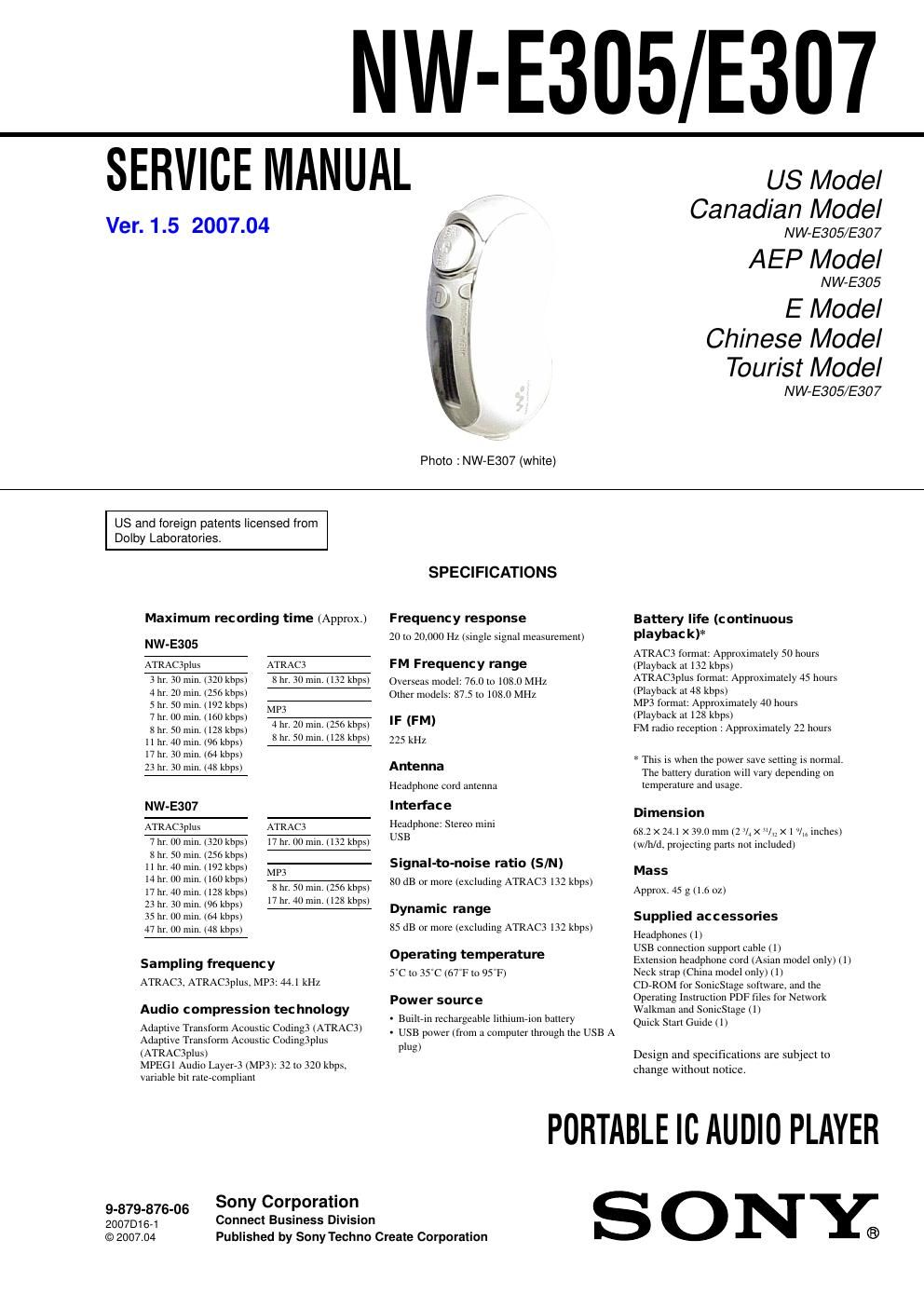

TABLE OF CONTENTS
1. GENERAL
................................................................... 4
2. DISASSEMBLY
2-1. Disassembly Flow ........................................................... 5
2-2. Window, Case (Upper), USB Lid .................................... 6
2-3. Case (Lower) ................................................................... 6
2-4. MAIN Board .................................................................... 7
2-5. HEADPHONE Board ...................................................... 8
2-6. SWITCH FLEXIBLE Board,
Organic EL Indicator Module ......................................... 8
2-7. Lithium Battery ............................................................... 9
2-8. Release Plate .................................................................... 9
2-9. Spring (Lock) And Lock Spring (Out) ............................ 10
2-10. USB Guide Assy .............................................................. 11
2-11. Spring (Arm A) And Spring (Arm B) .............................. 12
2-12. Chassis Assy .................................................................... 12
2-13. USB Board ...................................................................... 13
3. TEST MODE ............................................................... 14
4. DIAGRAMS
4-1. Block Diagram ................................................................ 16
4-2. Printed Wiring Board -“ MAIN Board (Side A) -“ ........... 17
4-3. Printed Wiring Board -“ MAIN Board (Side B) -“ ........... 18
4-4. Schematic Diagram -“ MAIN Board (1/4) -“ ................... 19
4-5. Schematic Diagram -“ MAIN Board (2/4) -“ ................... 20
4-6. Schematic Diagram -“ MAIN Board (3/4), USB Board,
HEADPHONE Board -“ ................................................... 21
4-7. Schematic Diagram -“ MAIN Board (4/4) -“ ................... 22
4-8. Printed Wiring Boards -“ HEADPHONE Board,
USB Board -“ ................................................................... 23
5. EXPLODED VIEWS
5-1. Overall Section-1 ............................................................. 31
5-2. Overall Section-2 ............................................................. 32
5-3. Chassis Section ................................................................ 33
6. ELECTRICAL PARTS LIST .................................. 34Microsoft, Windows and Windows Media are trademarks or
registered trademarks of Microsoft Corporation in the United States
and/or other countries.
US and foreign patents licensed from Dolby Laboratories.
All other trademarks and registered trademarks are trademarks or
registered trademarks of their respective holders.
Charging the Battery
-Charge the battery in an ambient temperature of between 5 to
35 °C (67 to 95 °F)
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
-Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
-Strong viscosity
Unleaded solder is more viscou-s (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
-Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder. Flexible Circuit Board Repairing
-Keep the temperature of the soldering iron around 270 °C
during repairing.
-Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
-Be careful not to apply force on the conductor when soldering
or unsoldering.
Notes on chip component replacement
-Never reuse a disconnected chip component.
-Notice that the minus side of a tantalum capacitor may be
damaged by heat.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Page 2
3
NW-E305/E307
SERVICING NOTE
A model both old and new exists in NW-E305/E307. For the old
model, it is exchanged for the whole of main body. Moreover, please
refer to this manual (9-879-876-0[]) about accessories.
Please refer to this manual for the new model.
How to distinguish
1. The most remarkable difference between the new model and
the old model is near button (DIRECTION JOG) as showing
in the photograph below.
Old Model New Model
2. It is possible to confirm also with serial No. for the new model
and the old model and so refer to the table below.
The position of a serial No.
Flexible
wireFlexible
guard
1.3 ± 0.1
1.3 ± 0.1
Serial No. for NW-E305/E307
Serial No.
Model Name Old Model New Model
NW-E305 5000001-5017490 5017452-5017571
5017491-5026000 5026001-5029625
5030126-5030625 5030626-5047505
5047506-5053460 5053461-5053505
5053506-5055440 Since 5055441
NW-E307 5000751-5001720 5001721-5001750
5001751-5003480 5003481-5006000
5006001-5006700 Since 5006701
Serial Number
3.The position that USB FLEXIBLE WIRE is set in USB
FLEXIBLE GUARD is different in the new model and the
old model. As for the new model, it is out of the hole match of
USB FLEXIBLE GUARD by 1 mm to the right by the figure
below.
Model WHITE BLUE PINK BLACK
NW-E305 USaa-
Canadianaaaa
AEP - - -a
Koreanaaaa
HongKongaaaa
Taiwanaa-
Mexicanaaaa
Tourista-a-
Chineseaaaa
NW-E307 USa-aa
Canadianaaaa
Koreanaaaa
HongKongaaaa
Mexicanaaaa
Touristaa-
Chineseaaaa
Color Variation
Show the color variation for NW-E305/E307.
