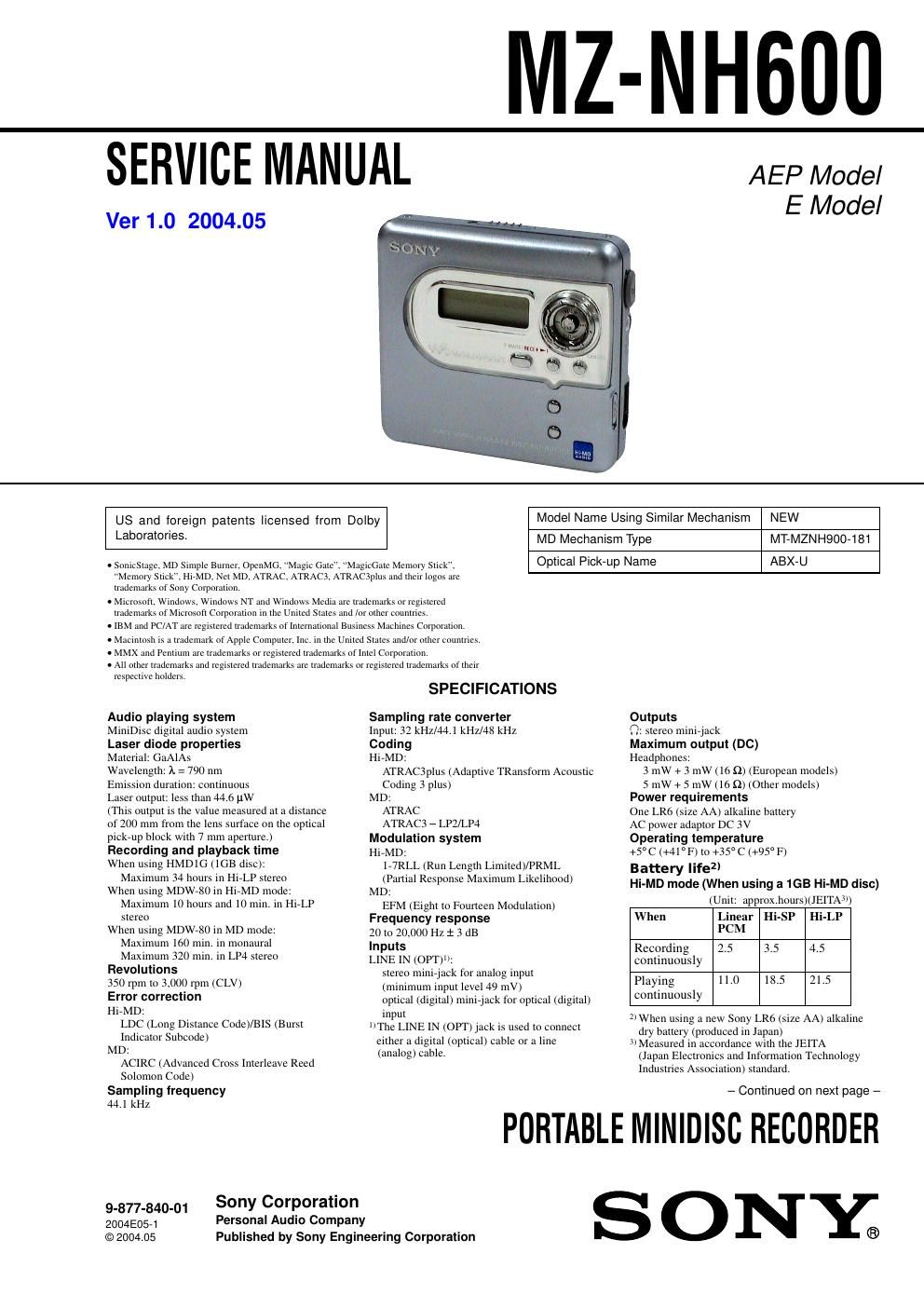

Page 1
MZ-NH600
SERVICE MANUAL
AEP Model
E Model
Ver 1.0 2004.05
Laboratories.
US and foreign patents licensed from Dolby
Model Name Using Similar Mechanism NEW
- SonicStnge, MD Simple Burnert OpenMG, Magic (3
MD Mechanism Type
MT-MZNH900-1 81
Memory Stick'fi Hi-MD. Net MD, AIRACI ATRACl ATRAC3p1us and their logos are
trademarks of Sony Corpoinlion.
- Microsoft. Windows. Windows NT and Windows Media are trademarks or registered
trademarks of Microsoft Corporation in the United States and /or other countries,
- IBM and PC/AT are registered trademarks of International Business Machines Corporation.
- Macintosh is a trademark or Apple ComputCi', Inc. in the United States turd/or other countries,
. MMX and Pentium are trademarks or registered trademarks of Intel Corporation.
. All other trademni ks and registered trademarks are trademarks or registered trademarks of their
respective holders.
Audio playing system
MiniDise digital audio system
Laser diode properties
Material: GaAlAs
Wavelength: l : 790 nm
Emission duration: continuous
Laser output: le. than 44.6 uW
(This output is the value measured at a distance
of 200 mm from the lens surface on the optical
pickrup block with 7 mm aperture.)
Recording and playback time
When using HMDIG (IGB disc):
Maximum 34 hours in HirLP stereo
When using MDWeSO in HieMD mode:
Maximum 10 hours and 10min. in HirLP
stereo
When using MDW780 in MD mode:
Maximum 160 min. in monaural
Maximum 320 min. in LP4 stereo
Revolutions
350 rpm to 3,000 rpm (CLV)
Error correction
HirMD:
LDC (Long Distance Code)/BIS (Burst
Indicator Subcode)
MD:
ACIRC (Advanced Cross Interleave Reed
Solomon Code)
Sampling frequency
Input: 32 kHz/44,1 kHz/48 kHz
Coding
I-IirMD:
ATRACSplus (Adaptive TRansl'erm Acoustic
Ceding 3 plus)
MD:
ATRAC
ATRAC3 7 LPZ/LP4
Modulation system
HirMD:
177RLL (Run Length Limited)/PRML
(Partial Response Maximum Likelihood)
MD:
EFM (Eight to Fourteen Modulation)
Frequency response
20 to 20.000 Hz i 3 dB
Inputs
LINE IN (OPTW:
stereo minirjack for analog input
(minimum input 1 49 mV)
optical (digital) min k for optical (digital)
input
The LINE IN (OPT) jack is used to connect
either a digital (optical) cable or a line
(analog) cable.
MagieGate Memory stick", Optical PICK-UP Name ABX-U
SPECIFICATIONS
Sampling rate converter Outputs
Q: stereo minijack
Maximum output (DC)
Headphones:
3 mW + 3 mW (16 9) (European models)
5 mW + 5 mW (16 9) (Other models)
Power requirements
One LR6 (size AA) alkaline battery
AC power adaptor DC 3V
Operating temperature
+5 C (+41 F) to +35 C (+95 F)
Battery life
Hi-MD mode (When using a 1GB Hi-MD disc)
(Unit: approx.hours)(JEITA3l)
When Linear Hi-SP Hi-LP
PCM
Recording 2.5 3.5 4.5
continuously
Playing 11.0 18.5 21.5
continuously
1) When using a new Sony LR6 (size AA) alkaline
dry battery (produced in Japan)
3) Measured in accordance with the JEITA
(Japan Electronics and Information Technology
Industries Association) standard.
- Continued on next page -
44.1 kHL
9.877.34o_01 Sony Corporation
20045054 Personal Audio Company
©2004.05 Published by Sony Engineering Corporation ®
Page 2
MZ-NHGOO
Hi-MD mode (When using 3 60/74/80-
minute standard disc)
(Unit: approx.hours)(JEITA)
When Linear Hi-SP Hi-LP
PCM
Recording 5.0 8.0 9.5
continuously
Playing 9.5 17.0 20.0
continuously
MD mode
(Unit: approx.hours)(JEITA)
When SP LP2 LP4
Stereo Stereo Stereo
Recording 7.5 9.5 11.0
continuously
Playing 20.5 24.0 26.0
continuously
Dimensions
Approx. 83.6 X 28.9 X 77.0 mm (w/h/d)
(3% X 13/16 X 3% in.) (excluding projecting
parts aud controls)
MESS
Approx. 101 g (3.6 oz) (the recorder only)
Supplid accessories
Headphones/earphones ( 1)
Dedicated USB cable (1)
Clamp filters for the AC power adaptor (2)
Attach the clamp filters when using the optional
AC power adaptor 1
CDVROM (SonicStnge Ver. 2.0/MD Simple
Burner Ver. 2.0) (1)*
*Do not play a CDVROM on an audio CD player.
4» When using the optional AC power
adaptor Ac-ESOHG:
Before using the AC power adaptor
AC-ESOHG, do the following procedure to
attach the clamp filters to the cord of the
AC power adaptor. (You must affix the
ferrite cores to comply with applicable
EMC standards.)
(D Open the clamp fitters.
®Wind the Ac power cont into the clamp
tilters as shown below.
Maximum length:
(approx. 4 cm _1
©ctnse the clamp tilters.
Make sure the
claws are
tully engaged.
Dcsigu and specifications are subject to change
without notice.
