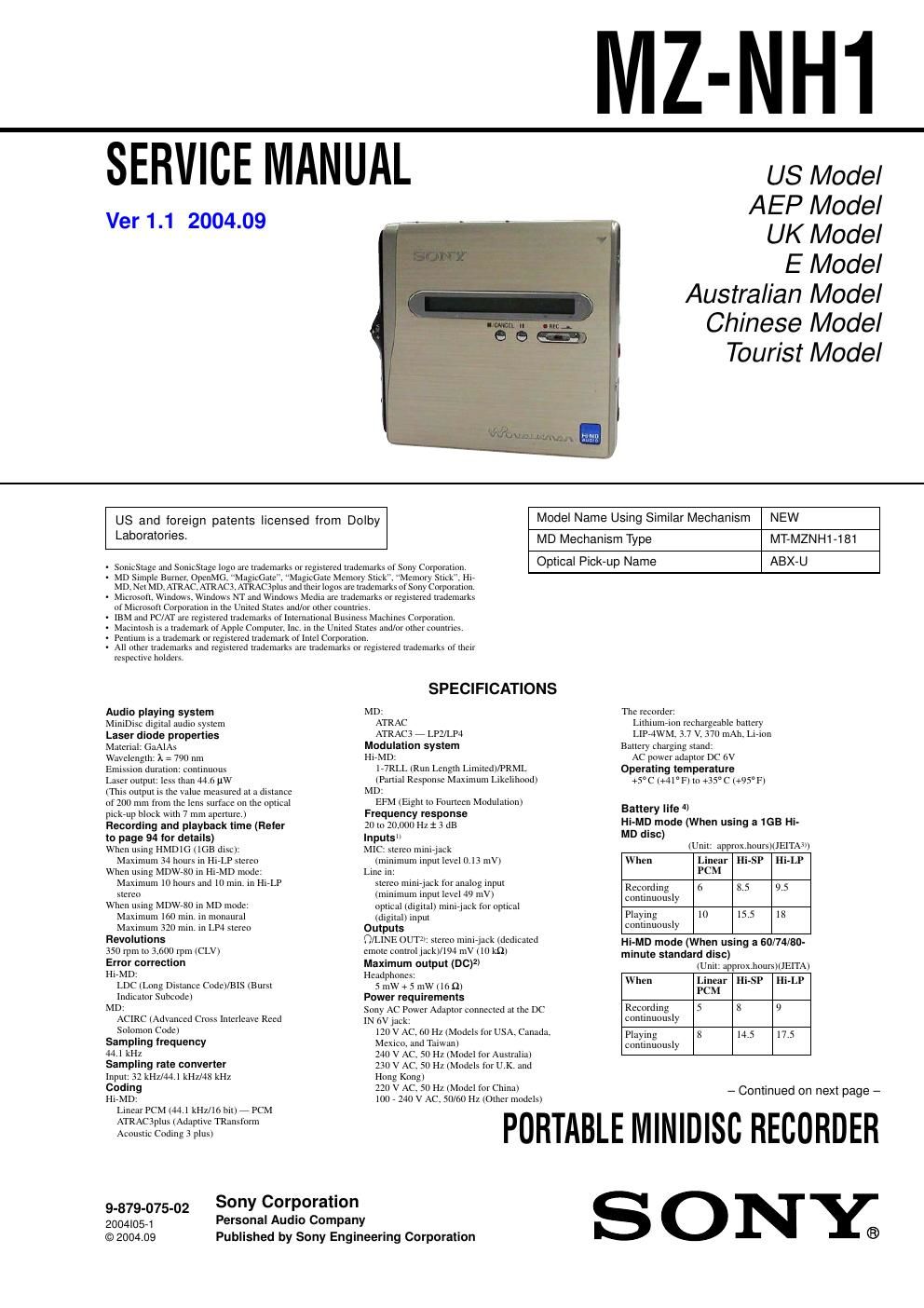

Page 1
2
MZ-NH1
DimensionsApprox. 81.7 × 76.1 × 14.8 mm (w/h/d)
(31/4 × 3 × 19/32 in.) (excluding projecting parts
and controls)
MassApprox. 97 g (3.4 oz) (the recorder only)
Approx. 107 g (3.8 oz) (including the
rechargeable battery)
1)The LINE IN (OPT) jack is used to connect
either a digital (optical) cable or a line
(analog) cable.
2)The i/LINE OUT jack connects either
headphones/earphones or a line cable.
Design and specifications are subject to change
without notice.
Your dealer may not handle some of the above
listed accessories. Please ask the dealer for
detailed information about the accessories in
your country.
When using optional headphones, use only
headphones/earphones with stereo mini
plugs. You cannot use headphones/
earphones with micro plugs.
4)When using a 100% fully charged lithium-ion
rechargeable battery
3)Measured in accordance with the JEITA
(Japan Electronics and Information
Technology Industries Association) standard.
On power sources Use house current or rechargeable battery. For use in your house: For the supplied battery
charging stand, use the AC power adaptor
supplied with this recorder. Do not use any
other AC power adaptor since it may cause the
recorder to malfunction.
Polarity of the plug
MD mode (Unit: approx.hours)(JEITA) When SP
StereoLP2
StereoLP4
Stereo
Recording
continuously81010.5
Playing
continuously14.5 17 18.5
Page 2
3
MZ-NH1
TABLE OF CONTENTS
1. SERVICING NOTES
............................................... 4
2. GENERAL ................................................................... 5
3. DISASSEMBLY
3-1. Disassembly Flow ........................................................... 7
3-2. Bottom Panel Sub Assy ................................................... 7
3-3. MAIN Board .................................................................... 8
3-4. Upper Panel Sub Assy ..................................................... 8
3-5. Control Ornament Block ................................................. 9
3-6. Mechanism Deck Assy (MT-MZNH1-181) .................... 9
3-7. Gear (SA), Gear (SB) ...................................................... 10
3-8. Op Service Assy .............................................................. 10
3-9. DC SSM18D/C-NP Motor (Spindle) (M701),
DC SSM21A/C-NP Motor (Sled) (M702),
DC Motor Unit (Over Write Head Up/Down) (M703) ... 11
3-10. Holder Assy ..................................................................... 11
4. TEST MODE ............................................................... 12
5. ELECTRICAL ADJUSTMENT ............................. 16
6. DIAGRAMS
6-1. Block Diagram -“MD SERVO Section -“ ......................... 21
6-2. Block Diagram -“AUDIO Section -“ ................................. 22
6-3. Block Diagram -“POWER SUPPLY Section -“ ................ 23
6-4. Schematic Diagram -“MAIN Section (1/9) -“ ................... 25
6-5. Schematic Diagram -“MAIN Section (2/9) -“ ................... 26
6-6. Schematic Diagram -“MAIN Section (3/9) -“ ................... 27
6-7. Schematic Diagram -“MAIN Section (4/9) -“ ................... 28
6-8. Schematic Diagram -“MAIN Section (5/9) -“ ................... 29
6-9. Schematic Diagram -“MAIN Section (6/9) -“ ................... 30
6-10. Schematic Diagram -“MAIN Section (7/9) -“ ................... 31
6-11. Schematic Diagram -“MAIN Section (8/9) -“ ................... 32
6-12. Schematic Diagram -“MAIN Section (9/9) -“ ................... 33
6-13. Printed Wiring Board -“MAIN Section (1/2) -“ ................ 34
6-14. Printed Wiring Board -“MAIN Section (2/2) -“ ................ 35
7. EXPLODED VIEWS
7-1. PANEL SECTION ........................................................... 49
7-2. MAIN SECTION ............................................................ 50
7-3. MECHANISM DECK SECTION ................................... 51
8. ELECTRICAL PARTS LIST ................................ 52Notes on chip component replacement
-Never reuse a disconnected chip component.
-Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
-Keep the temperature of the soldering iron around 270 ËšC
during repairing.
-Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
-Be careful not to apply force on the conductor when soldering
or unsoldering. CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
