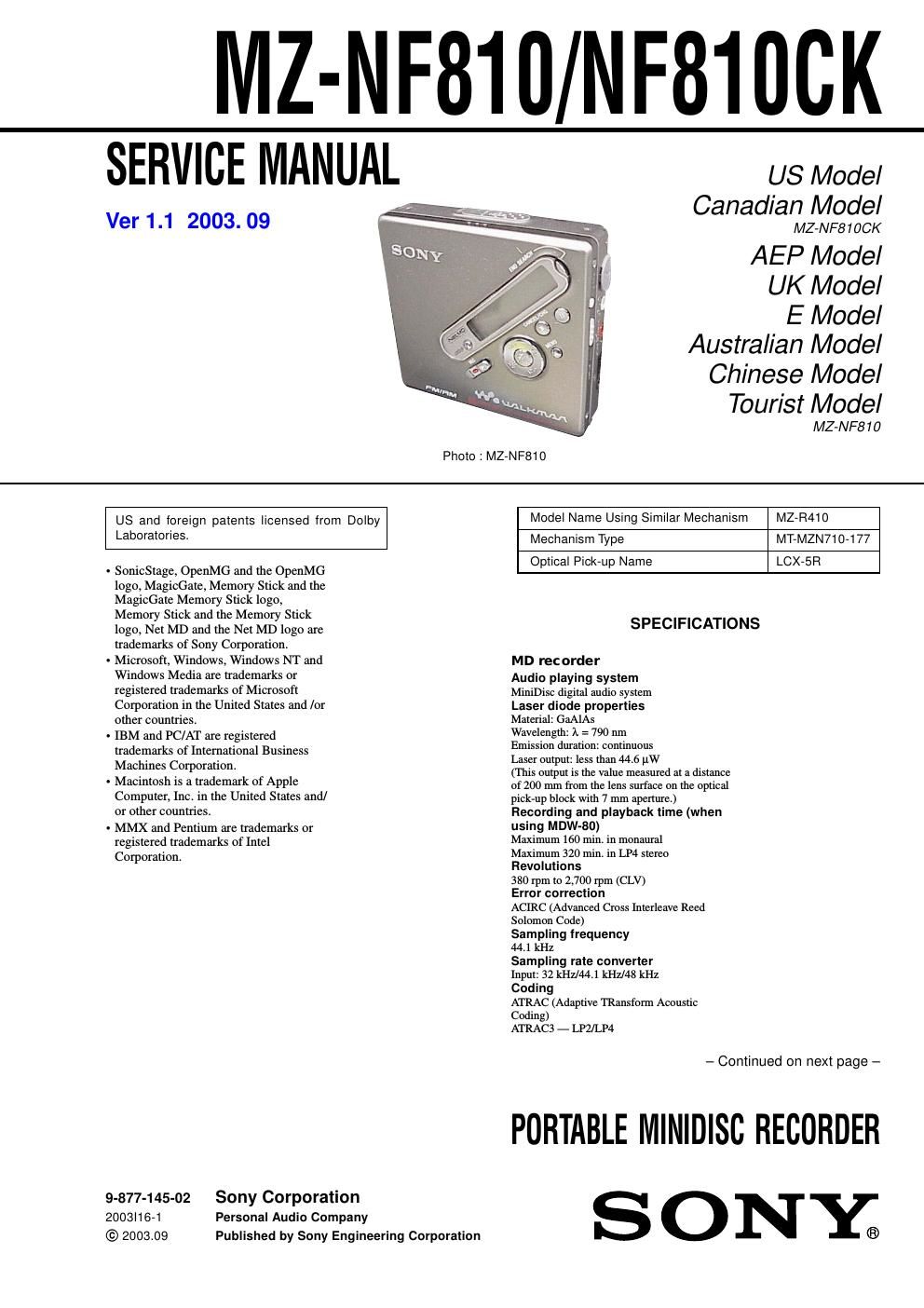

Extracted text from sony mz nf 810 ck service manual (Ocr-read)
Page 1
2
MZ-NF810/NF810CK
Radio
Frequency rangeUSA model:FM: 87.5 - 108.0 MHz
AM: 530 - 1,710 kHz (10 kHz step) 531 - 1,710 kHz (9 kHz step)
TV: 2 - 13 CH
WEAT HER: 1 - 7 CH
Canadian model:
FM: 87.5 - 108.0 MHz
AM: 530 - 1,710 kHz (10 kHz step) 531 - 1,710 kHz (9 kHz step)
AntennaFM/TV/WEATHER:Headphones/earphones cord antenna
AM:
Built-in fe rrite bar antenna
General
Po wer requirementsSony AC Power Adaptor connected at the DC
IN 3V jack: 120 V AC, 60 Hz (Models for USA, Canada,
Mexico, and Taiwan)
230 V AC, 50/60 Hz (Models for continental
Europe and Chili)
240 V AC, 50 Hz (Model for Australia)
220 V AC, 50 Hz (Model for China)
230 V AC, 50 Hz (Models for U.K. and
Hong Kong)
220 V AC, 60 Hz (Model for Korea)
100 - 120 V/220 - 240 V AC, 50/60 Hz
(Other m odels)
The r ecorder:
Nickel metal hydride rechargeable battery
NH-10WM 1.2V 900 mAh (MIN) Ni-MH
LR6 (size AA) alkaline battery
Ba tter y charging stand:
AC power ad aptor DC 3V
DimensionsApprox. 81.0 × 74.4 × 20.0 mm (w/h/d)
(31/4 × 3 × 13/16 in.) MassApprox. 108 g (3.8 oz) the recorder only
1)The LI NE IN (OPTICAL) jack is used to
connect either a digital (optical) cable or a line
(anal og) cable.
2)The i jack connects either headphones/
ear phones or a line cable.
3)Me asured in accordance with JEITA.
Car kit
Car connecting packFr equency response: 50 to 20,000Hz (Differs
dependi ng on your car cassette deck)
Dimensions: Approx. 102.4 × 12.1 × 63.8 mm
(w/h/d) (4
1/8 × 1/2 × 2 5/8 in.)
Mass: Approx. 42 g (1.5 oz)
Co rd length: Approx. 1.5 m
Car battery cordInput vo ltage: DC 12 V/24 V (only for negative
# ground cars)
Rated output voltage: DC 3.0 V
Rated output current: 1,000 mA
Dimensions: Approx. 36.0 × 26.2 × 101.1 mm
(w/h/d) (1
7/16 × 1 1/16 × 4 in.) including
projecting parts
Mass: Approx. 60 g (2.2 oz)
Co rd length: Approx. 1.5 m
US and foreign patents licensed from Dolby
Laborato ries.
Design and specifications are subject to change
wi thout notice.
When playing (Unit: approx.hours)(JEITA)
When using the radio (Unit: approx.hours)(JEITA)
NoteWhen you use the radio, it is recommended that
yo u us e a fully charged rechargeable battery or
a new dry battery since more power is
c onsumed by the radio than by MD playback.
When to replace the batteries
When the dry battery or rechargeable
battery is we ak, flashing r or L OW
BATT a ppears in the display. Replace the
dr y ba ttery or charge the rechargeable
ba ttery.
The battery leve l indicator is approximate.
It may be more or less than the indication
dependi ng on the operating condition.
NoteStop the recorder before replacing battery.
Ba
Supplied accessories
ttery life
The battery life may be shorter due to
operating conditions, the temperature of
the location , or alkaline dry battery you
use.
Wh en recording (Unit: approx.hours)(JEITA 1))
1)Measured in accordance with the JEITA
(Japan Electronics and Information
Technolo gy Industries Asso ciation) standard.
Batteries SP
StereoLP2
Stereo LP4
Stereo
Nick el metal
hydride
rechargeable
ba ttery
2)
2)Wh en us ing a 100% fully charged nickel metal
hydride rechargeable battery (NH-10WM).
79 12
LR6 Sony
alkaline dry
ba ttery
3)
3)When usin g a Sony LR6 (SG) STAMINA
al kaline dry battery (produced in Japan).
12 15 18.5
Nick el metal
hydride
rechargeable
ba ttery + One
LR6 22 30 35
Batteries SP
StereoLP2
Stereo LP4
Stereo
Nick el metal
hydride
rechargeable
ba ttery 17 21 23.5
LR6 Sony
alkaline dry
ba ttery 38 44 50.5
Nick el metal
hydride
rechargeable
ba ttery + One
LR6 57 66.5 73.5
Batt eries FM/
AMTV/Wb
(wea
ther)
(USA
mode l only)
Nickel metal hydride
rechargeable battery 99
LR6 (SG) Sony
alkaline dry battery 18.5 17
Nickel metal
hydride
rechargeable battery
+ One LR6 (SG) 29 23
M odulation systemEFM (Eight to Fourteen Modulation)Fr equency response20 to 20,000 Hz ± 3 dBInputs 1)
MIC: st ereo mini-jack
(m inimum input level 0.12 mV)
Line in: stereo mini-jack for analog input
(minim um input level 49 mV)
optical (digital) mini-jack for optical
(digital) input
Outputsi : stereo mini-jackMaximum output level5 mW + 5 mW; load impedance 16 -„¦
Optical cable (1)
CD-ROM (SonicStage Ver. 1.5) (1) -ˆ— Car battery cord (1)
Car connecting pack (1)
Carryi ng case with Velcro strips (1)
Carrying case wi th a belt clip (1)
(Canadian model only)
-ˆ— Do not play a CD-ROM on an audio CD player.
AC p ower ad aptor (1)
Battery charging stand (1)
Headphones with a remote control (1)
(for USA model) NH-10 WM Nickel metal hydride
rechargeable battery (1)
Dedi cated USB cable (1)
Battery ca rrying case (1)
Dry batter
y case (1)
Rota ry commander (1)
Earphones with a remote control (1)
(for Ca
nadian model)
Page 2
3
MZ-NF810/NF810CK
TABLE OF CONTENTS
1. SERVICING NOTES
................................................ 4
2. GENERAL ................................................................... 5
3. DISASSEMBLY
3-1. Disassembly Flow........................................................... 6
3-2. Case (Lower) ................................................................... 7
3-3. MAIN Board, Battery Case............................................ 7
3-4. Panel (Upper) Section..................................................... 8
3-5. LCD Module, Panel Upper Block.................................. 8
3-6. Mechanism Deck (MT-MZN710-177)........................... 9
3-7. OP Service Assy (LCX-5R)............................................ 10
3-8. Holder Assy ..................................................................... 11
3-9. DC Motor (Sled) (M602)................................................ 11
3-10. DC Motor (Over Write Head Up/Down) (M603), DC SSM18B Motor (Spindle) (M601)........................... 12
4. TEST MODE ............................................................... 13
5. ELECTRICAL ADJUSTMENTS .......................... 18
6. DIAGRAMS
6-1. Block Diagram ................................................................ 37
6-2. Note for Printed Wiring Board and Schematic Diagrams ....................................................... 38
6-3. Printed Wiring Board -“ MAIN Board (Side A) -“............................................. 39
6-4. Printed Wiring Board -“ MAIN Board (Side B) -“............................................. 40
6-5. Schematic Diagram -“ MAIN Board (1/4) -“.................. 41
6-6. Schematic Diagram -“ MAIN Board (2/4) -“.................. 42
6-7. Schematic Diagram -“ MAIN Board (3/4) -“.................. 43
6-8. Schematic Diagram -“ MAIN Board (4/4) -“.................. 44
6-9. IC Pin Function Description........................................... 50
7. EXPLODED VIEWS
7-1. Case Section .................................................................... 56
7-2. Chassis Section ............................................................... 57
7-3. MAIN Board Section...................................................... 58
7-4. Mechanism Deck Section-1 (MT-MZN710-177) ........... 59
7-5. Mechanism Deck Section-2 (MT-MZN710-177) ........... 60
8. ELECTRICAL PARTS LIST .................................. 61
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous ra-
diation exposure.
Notes on chip component replacement
-N
ever reuse a disconnected chip component.
- Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
Flexible Circuit Board Repairing
-K eep the temperature of the soldering iron around 270 ËšC dur-
ing repairing.
- Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
- Be careful not to apply force on the conductor when soldering
or unsoldering.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
- Unleaded solder melts at a temperature about 40 ËšC higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 ËšC .
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
- Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow) than
ordinary solder so use caution not to let solder bridges occur
such as on IC pins, etc.
- Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
On power sources
-Use house current, nickel metal hydride
rechargeable battery, LR6 (size AA) battery,
or car battery.
-
For use in your house: For the supplied battery
charging stand, use the AC power adaptor
s upplied with this recorder. Do not use any other
AC power adaptor since it may cause the recorder
to ma lfunction.
-C onnect the AC power adaptor to an easily
accessible AC outlet. Should you notice an
abnormality in the AC power adaptor,
disc onnect it from the AC outlet immediately.
- The recorder is not disconnected from the AC
power s ource (mains) as long as it is
connected to the wall outlet, even if the
recorder itself has been turned off.
- If you are not going to use this recorder for a
l ong time, be sure to disconnect the power
s upply (AC power adaptor, dry battery,
rechargeable battery, or car battery cord). To
remove the AC power adaptor from the wall
outlet, grasp the adaptor plug itself; never pull
the cord.
Polarity of the
plug
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE
PA RTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE
THESE COMPONENTS WITH SONY PARTS WHOSE PART NUM-
BERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLE-
MENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
Ã- LA SÉCURITÉ!
LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES
SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES
SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL
OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.
