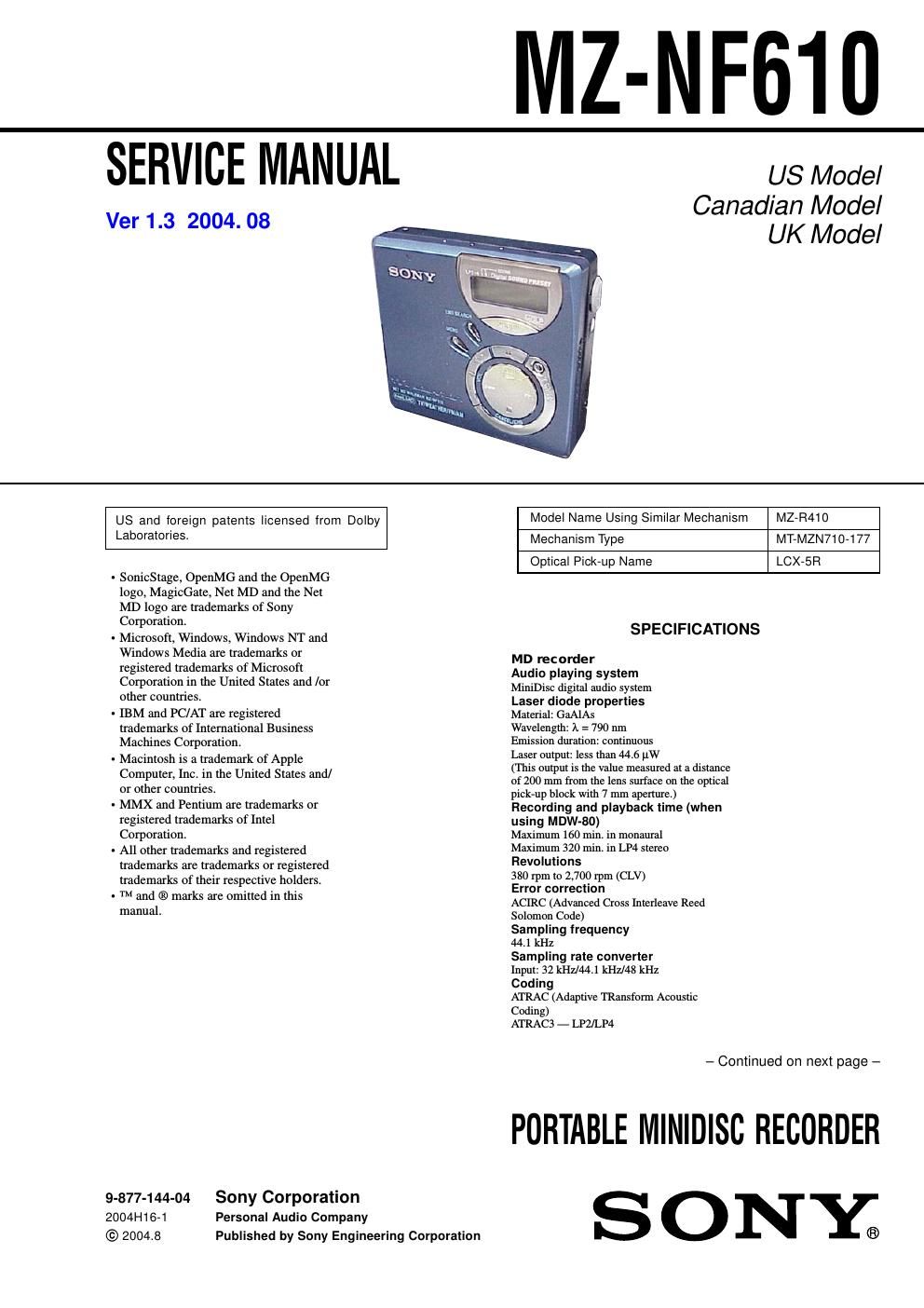

Page 1
2
MZ-NF610
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE
PA RTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE
THESE COMPONENTS WITH SONY PARTS WHOSE PART NUM-
BERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLE-
MENTS PUBLISHED BY SONY. A
TTENTION AU COMPOSANT AYANT RAPPORT
Ã- LA SÉCURITÉ!
LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES
SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES
SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL
OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.
M odulation systemEFM (Eight to Fourteen Modulation)Frequency response20 to 20,000 Hz ± 3 dBInputs 1)
Line in:
stereo mini-jack for analog input
(minimum input level 49 mV)
optical (digital) mini-jack for optical
(digital) input
Outputsi : stereo mini-jackMaximum output levelUSA model:
5mW + 5mW; load impedance 24 -„¦
Canadian model:
5mW + 5mW; load impedance 16 -„¦
Radio
Frequency range
USA model:
FM: 87.5-108 MHz
AM: 530-1,710 kHz (10 kHz step) 531-1,710 kHz (9 kHz step)
TV: 2-13 CH
WEAT HER: 1-7 CH
Canadian model:
FM: 87.5-108 MHz
AM: 530-1,710 kHz (10 kHz step) 531-1,710 kHz (9 kHz step)
AntennaFM/TV/WEATHER: Headphones/earphones cord antenna
AM: Built-in ferrite bar antenna
General
Po wer requirements
Sony AC Power Adaptor connected at the DC
IN 3V jack: 120 V AC, 60 Hz (Models for USA, Canada,
Mexico, and Taiwan)
230 V AC, 50/60 Hz (Models for continental
Europe and Chili)
240 V AC, 50 Hz (Model for Australia)
220 V AC, 50 Hz (Model for China)
230 V AC, 50 Hz (Models for U.K. and
Hong Kong)
220 V AC, 60 Hz (Model for Korea)
100 - 120 V/220 - 240 V AC, 50/60 Hz
(Other m odels)
The recorder: Nickel metal hydride rechargeable battery
NH-7WMAA 1.2V 700 mAh (MIN) Ni-MH
LR6 (size AA) alkaline battery
DimensionsApprox. 81.0 × 27.7 × 74.4 mm (w/h/d)
(31/4 × 1 1/8 × 3 in.) Mass Supplied accessoriesApprox. 103 g (3.6 oz) the recorder only
1)The LI
NE IN (OPTICAL) jack is used to
connect either a digital (optical) cable or a line
(ana log) cable.
2)The i jack connects either headphones/
earphones or a line cable.
3)Measured in accordance with JEITA. US and foreign patents licensed from Dolby
Laboratories.
Design and specifications are subject to change
wi
thout notice.
AC p ower ad aptor (1)
Head phones with a remote
contro l (1)
(for USA model)
NH-7WMAA Nickel metal
hydride rechargeable
battery (1)
Dedi
cated USB cable (1)
Earphones with a remote control (1)
(for Canadian model)
Battery ca
rrying case (1)
CD-ROM (SonicStage Ver. 1.5) (1)*
-ˆ—Do not play a CD-ROM on an audio CD player.
Battery life
The battery life may be shorter due to
operating conditions, the temperature of
the location , or alkaline dry battery you
use.
Wh en recording (Unit: approx.hours)(JEITA 1))
1)Measured in accordance with the JEITA (Japan
Electronics and Information Technology
In dustries Association) standard.
Batteries SP
StereoLP2
Stereo LP4
Stereo
Nick el metal
hydride
rechargeable
ba ttery
2)
2)Wh en using a 100% fully charged nickel metal
hydride rechargeable battery (NH-7WMAA).
5.5 8 9
LR6 Sony
alkaline dry
ba ttery
3)
3)When usin g a Sony LR6 (S G) STAMINA
al kaline dry battery (produced in Japan).
91216
When using the radio (Uni t: approx.hours)(JEITA)
NoteWhen you use the radio, it is recommended that
you us e a fully charged rechargeable battery or
a new dry battery since more power is
c onsumed by the radio than by MD playback.
When playing (Uni t: approx.hours)(JEITA)
Batteries SP StereoLP2
Stereo LP4
Stereo
Nick el metal
hydride
rechargeable
ba ttery 14.5 15.5 17.5
LR6 Sony
alkaline dry
ba ttery 36 42.5 48 Batt
eries FM/
AMTV/Wb
(weather)
(USA model
only)
Nick el metal
hydride
rechargeable
ba ttery 7.5 7
LR6 Sony
alkaline dry
ba ttery 18.5 17
Page 2
3
MZ-NF610
On power sources
-Use house current, nickel metal hydride
rechargeable battery, LR6 (size AA) battery,
or car battery.
-For use in your house: Do not use any other
AC power adaptor since it may cause the
recorder to malfunction
.
-Connect the AC power adaptor to an easily
accessible AC outlet. Should you notice an
abnormality in the AC power adaptor,
disconnect it from the AC outlet immediately.
-The recorder is not disconnected from the AC
power source (mains) as long as it is
connected to the wall outlet, even if the
recorder itself has been turned off.
-If you are not going to use this recorder for a
long time, be sure to disconnect the power
supply (AC power adaptor, dry battery,
rechargeable battery, or car battery cord). To
remove the AC power adaptor from the wall
outlet, grasp the adaptor plug itself; never pull
the cord.
Polarity of the
plug
TABLE OF CONTENTS
1. SERVICING NOTES
............................................... 4
2. GENERAL ................................................................... 5
3. DISASSEMBLY
3-1. Disassembly Flow........................................................... 6
3-2. Case (Lower)................................................................... 7
3-3. Upper Panel Section........................................................ 7
3-4. LCD Module, Button (Control)...................................... 8
3-5. MAIN Board................................................................... 8
3-6. Mechanism Deck (MT-MZN710-177)........................... 9
3-7. Set Chassis Assy............................................................. 9
3-8. OP Service Assy (LCX-5R)............................................ 10
3-9. Holder Assy..................................................................... 11
3-10. DC Motor (Sled) (M602)................................................ 11
3-11. DC Motor (Over Write Head Up/Down) (M603),
DC SSM18B Motor (Spindle) (M601)........................... 12
4. TEST MODE .............................................................. 13
5. ELECTRICAL ADJUSTMENTS ......................... 19
6. DIAGRAMS
6-1. Block Diagram................................................................ 39
6-2. Note for Printed Wiring Board and
Schematic Diagrams....................................................... 40
6-3. Printed Wiring Board
-“ MAIN Board (Side A) -“............................................. 41
6-4. Printed Wiring Board
-“ MAIN Board (Side B) -“............................................. 42
6-5. Schematic Diagram -“ MAIN Board (1/4) -“.................. 43
6-6. Schematic Diagram -“ MAIN Board (2/4) -“.................. 44
6-7. Schematic Diagram -“ MAIN Board (3/4) -“.................. 45
6-8. Schematic Diagram -“ MAIN Board (4/4) -“.................. 46
6-9. IC Pin Function Description........................................... 52
7. EXPLODED VIEWS
7-1. Case Section.................................................................... 58
7-2. Chassis Section............................................................... 59
7-3. MAIN Board Section...................................................... 60
7-4. Mechanism Deck Section-1 (MT-MZN710-177)........... 61
7-5. Mechanism Deck Section-2 (MT-MZN710-177)........... 62
8. ELECTRICAL PARTS LIST ............................... 63 CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous ra-
diation exposure.
Notes on chip component replacement
-Never reuse a disconnected chip component.
-Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
Flexible Circuit Board Repairing
-Keep the temperature of the soldering iron around 270 ËšC dur-
ing repairing.
-Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
-Be careful not to apply force on the conductor when soldering
or unsoldering.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
-Unleaded solder melts at a temperature about 40 ËšC higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 ËšC .
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
-Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow) than
ordinary solder so use caution not to let solder bridges occur
such as on IC pins, etc.
-Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
