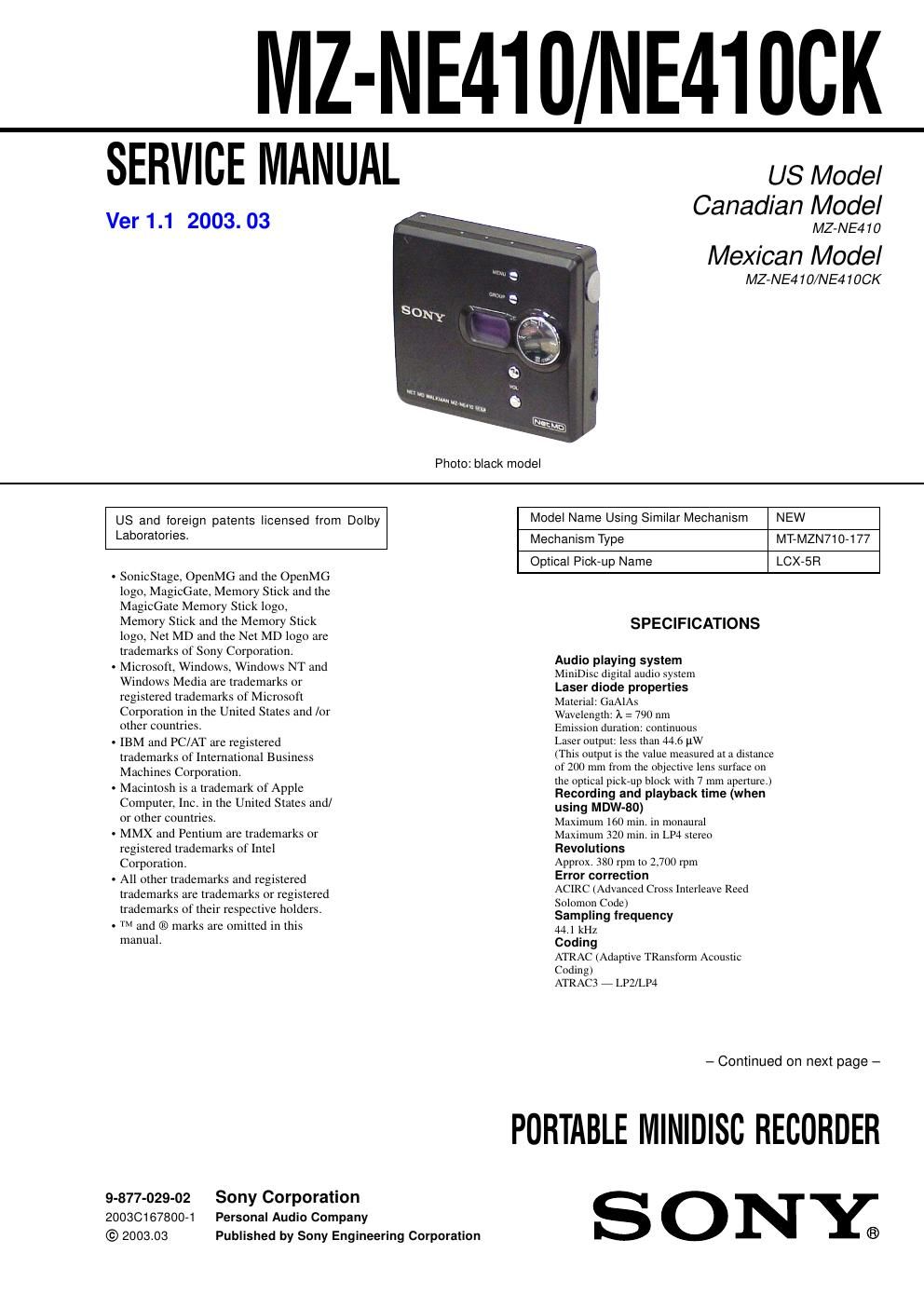

Sony mz ne 410 ck service manual

Page 1

2 MZ-NE410/NE410CK SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUM- BERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLE- MENTS PUBLISHED BY SONY.ATTENTION AU COMPOSANT AYANT RAPPORT Ã- LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY. Modulation systemEFM (Eight to Fourteen Modulation)Number of channels2 stereo channels 1 monaural channel Frequency response20 to 20,000 Hz ± 3 dB (USA, Mexican) Outputsi: stereo mini-jack, maximum output level 5 mW + 5 mW, load impedance 24 -„¦ (USA, Mexican) 5 mW + 5 mW, load impedance 16 -„¦ (Canada) General Power requirements One LR6 (size AA) alkaline battery (not supplied) Recommended temperature for check-in/check-out +5 °C (+41°F) or higher Battery operation time Dimensions Approx. 81 × 28.9 × 74.4 mm (w/h/d) (3 1/4 × 1 3/16 × 3 in.) without projections. MassApprox. 106 g (3.8 oz) the recorder only Design and specifications are subject to change without notice. Supplied accessoriesHeadphones/earphones (1) Dedicated USB cable (1) CD-ROM (SonicStage Ver. 1.5 and Net MD Simple Burner Ver. 1.1) (1)* * Do not play a CD-ROM on an audio CD player. Notes-Disconnect the dedicated USB cable before replacing the dry battery. -The battery life may be shorter than that specified, depending on the operating conditions, the temperature of the location, and varieties of batteries. 1)When using a new Sony LR6 (size AA) STAMINA alkaline dry battery (produced in Japan). WhenSP Stereo LP2 Stereo LP4 Stereo playing 2) 2)Measured in accordance with the JEITA (Japan Electronics and Information Technology Industries Association) standard. Approx. 42 hours Approx. 48 hours Approx. 56 hours checking out audio data from the computer 3) 3)The numbers of tracks that can be checked out differs according to the computers operating environment. 75 tracks (of about 5 minutes each)300 tracks (of about 5 minutes each)600 tracks (of about 5 minutes each) 20 Hz ± 3dB to 20,000 Hz +1/-5 dB (CANADA) Car connectiing pack (1) (NE410CK model) Carrying case with Velcro strap (1) (NE410CK model) Ver 1.1 2003.03

Page 2

3 MZ-NE410/NE410CK CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. Notes on chip component replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing -Keep the temperature of the soldering iron around 270 ËšC dur- ing repairing. -Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). -Be careful not to apply force on the conductor when soldering or unsoldering. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. -Unleaded solder melts at a temperature about 40 ËšC higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 ËšC . Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! -Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. -Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. 1. SERVICING NOTES ....................................................... 4 2. GENERAL .......................................................................... 5 3. DISASSEMBLY 3-1. Disassembly Flow.......................................................... 6 3-2. Case (Lower).................................................................. 7 3-3. MAIN Board................................................................... 7 3-4. Panel (Upper) Section.................................................... 8 3-5. LCD Module, Button (Control)..................................... 8 3-6. Mechanism Deck (MT-MZN710-177).......................... 9 3-7. Set Chassis Assy............................................................. 9 3-8. OP Service Assy (LCX-5R)......................................... 10 3-9. Holder Assy.................................................................. 11 3-10. DC Motor (Sled) (M602)........................................... 11 3-11. DC Motor (Over Write Head Up/Down) (M603), DC SSM18B Motor (Spindle) (M601)...................... 12 4. TEST MODE .................................................................... 13 5. ELECTRICAL ADJUSTMENTS ............................... 18 6. DIAGRAMS 6-1. Block Diagram............................................................. 37 6-2. Note For Printed Wiring Board And Schematic Diagrams.................................................... 38 6-3. Printed Wiring Board - MAIN Board (Side A)........... 39 6-4. Printed Wiring Board - MAIN Board (Side B)........... 40 6-5. Schematic Diagram - MAIN Board (1/4).................... 41 6-6. Schematic Diagram - MAIN Board (2/4).................... 42 6-7. Schematic Diagram - MAIN Board (3/4).................... 43 6-8. Schematic Diagram - MAIN Board (4/4).................... 44 7. EXPLODED VIEWS 7-1. Case Section................................................................. 55 7-2. Chassis Section............................................................. 56 7-3. MAIN Board Section................................................... 57 7-4. Mechanism Deck Section-1 (MT-MZN710-177)........ 58 7-5. Mechanism Deck Section-2 (MT-MZN710-177)........ 59 8. ELECTRICAL PARTS LIST ....................................... 60 TABLE OF CONTENTS On power sources -Use house current, nickel metal hydride rechargeable battery, LR6 (size AA) battery, or car battery. -For use in your house: Do not use any other AC power adaptor since it may cause the recorder to malfunction . -Connect the AC power adaptor to an easily accessible AC outlet. Should you notice an abnormality in the AC power adaptor, disconnect it from the AC outlet immediately. -The recorder is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the recorder itself has been turned off. -If you are not going to use this recorder for a long time, be sure to disconnect the power supply (AC power adaptor, dry battery, rechargeable battery, or car battery cord). To remove the AC power adaptor from the wall outlet, grasp the adaptor plug itself; never pull the cord. Polarity of the plug
