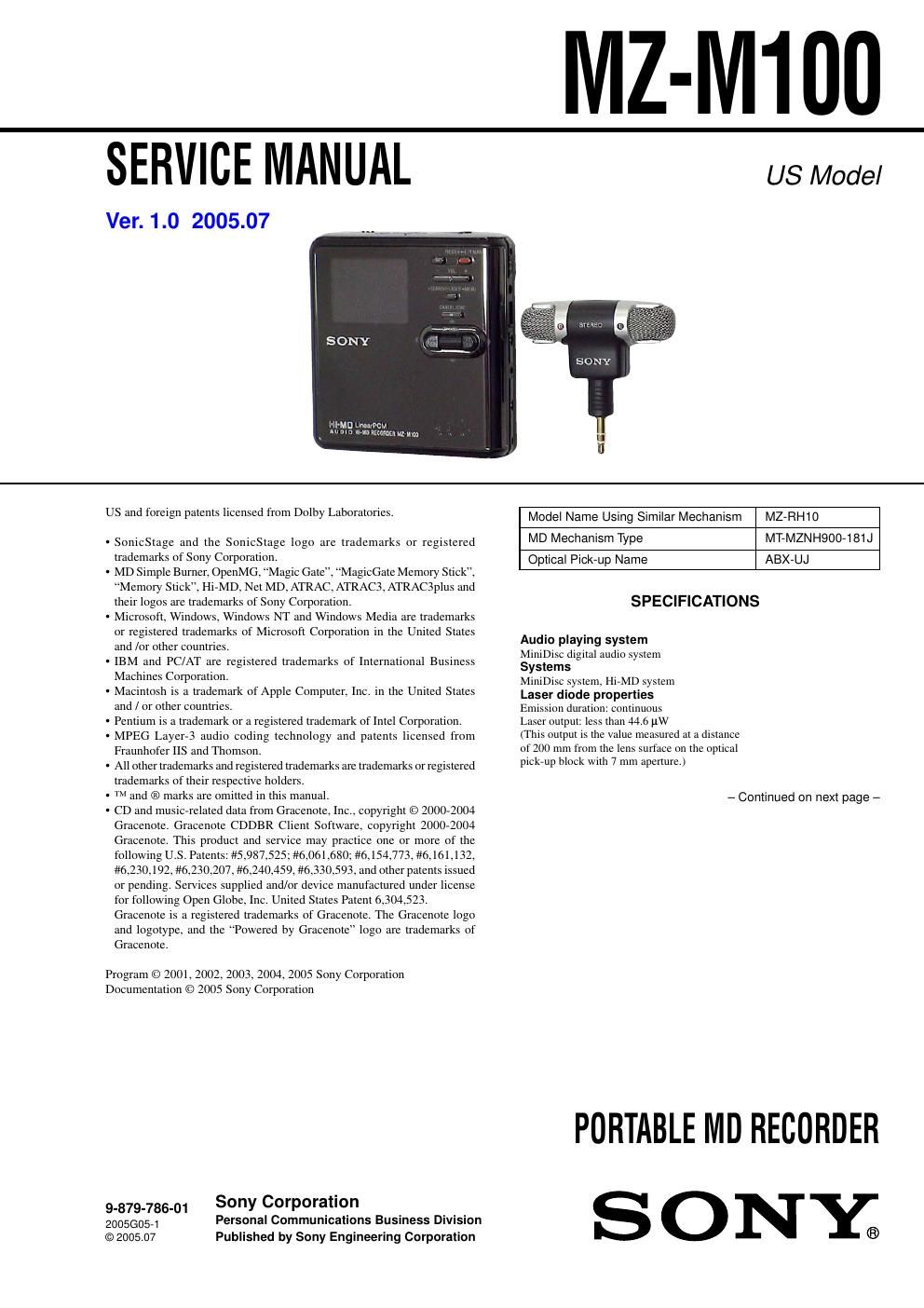

Page 1
MZ-M100
2
Recording and playback time
Supplied accessories
Clamp filters (small-size)
CD-ROM (SonicStage/MD Simple Burner/Hi-MD WAV Importer for Mac)*
Carrying pouch
*Do not play a CD-ROM on an audio CD player.
AC power adaptor
USB cable
NH-14WM Nickel metal hydride rechargeable battery Remote control
Earphones
Battery carrying case
Dry battery case Stereo microphone
Design and specifications are subject to change
without notice.
List of the record ing time for each discWhen using a disc in Hi-MD mode
When recording on the
recorderRecording time 1)
1)Approximate time
Recording
mode on the
recorderCodec/
Bit rate1GB Hi-MD
disc80-minute
standard
disc74-minute
standard
disc60-minute
standard
disc
PCM LinearPCM/
1.4Mbps1 hour and 34
minutes28 minutes 26 minutes 21 minutes
Hi-SP ATRAC3plus/
256kbps7 hours and 55
minutes2 hours and 20
minutes2 hours and
10 minutes1 hour and 40
minutes
Hi-LP ATRAC3plus/
64kbps34 hours 10 hours and
10 minutes9 hours and
20 minutes7 hours and
40 minutes
When transferring from the
Windows computerRecording time
1)2)
2)When transferring 4-minute tracks
Codec/Bit rate 1GB Hi-MD
disc80-minute
standard
disc74-minute
standard
disc60-minute
standard
disc
LinearPCM/1.4Mbps 1 hour and 34
minutes28 minutes 26 minutes 21 minutes
ATRAC3plus/256kbps 7 hours and 55
minutes2 hours and 20
minutes2 hours and
10 minutes1 hour and 40
minutes
ATRAC3plus/64kbps 34 hours 10 hours and
10 minutes9 hours and
20 minutes7 hours and
40 minutes
ATRAC3plus/ 48 kbps 45 hours 13 hours and
30 minutes12 hours and
30 minutes10 hours
ATRAC3/132kbps 16 hours and
30 minutes4 hours and 50
minutes4 hours and
30 minutes3 hours and
40 minutes
ATRAC3/105kbps 20 hours and
40 minutes6 hours and 10
minutes5 hours and
40 minutes4 hours and
40 minutes
ATRAC3/66kbps 32 hours and
40 minutes9 hours and 50
minutes9 hours 7 hours and
20 minutes
MP3/128kbps 17 hours 5 hours 4 hours and
30 minutes3 hours and
30 minutes
When using a disc in MD modeYou cannot record in MD mode on this recorder.When transferring from the
Windows computerRecording time 1)2)
1)Approximate time2)When transferring 4-minute tracks
Codec/Bit rate 80-minute
standard disc74-minute
standard disc60-minute
standard disc
ATRAC(stereo)/292kbps 80 minutes 74 minutes 60 minutes
ATRAC3/132, 105kbps 2 hours and 40
minutes2 hours and 28
minutes2 hours
ATRAC3/66kbps 5 hours and 20
minutes4 hours and 56
minutes4 hours
When playing continuously in Hi-MD mode (Unit: approx.hours)(JEITA)
When playing continuously in MD mode (Unit: approx.hours)(JEITA)
Battery life 1)
When recording continuously in Hi-MD mode (Unit: approx.hours)(JEITA 2)) Disc type Batteries LinearPCM Hi-SP Hi-LP
1GB Hi-MD disc NH-14WM 3) 5.5 7.5 8.5
LR6 4) 233
NH-14WM + LR6 8 11.5 12.5
60/74/80-minute
standard discNH-14WM 5 7.5 8.5
LR6 4 6 6.5
NH-14WM + LR6 9.5 14.5 16.5
1)Measured with EL Light is set to Auto Off2)Measured in accordance with the JEITA (Japa n Electronics and Information Tech nology Industries
Association) standard.3)When using a 100% fully charged nickel metal hydride rechargeable battery4)When using a Sony LR6 (size AA) a lkaline dry battery (produced in Japan)
Disc type Batteries LinearPCM Hi-SP Hi-LP MP3 1)
1)Trac ks transferred at 128 kbps
1GB Hi-MD
discNH-14WM 9 12.5 14.5 13
LR6 9.5 13.5 15.5 14.5
NH-14WM + LR6 20 28.5 33 30
60/74/80-minute
standard discNH-14WM 7.5 12 15 13.5
LR6 8 13 16 14.5
NH-14WM + LR6 17 27.5 34 30.5
Disc type Batteries SP LP2 LP4
60/74/80-minute
standard discNH-14WM 13.5 15 15.5
LR6 16 17.5 18.5
NH-14WM + LR6 32 35.5 37 RevolutionsApprox. 350 rpm to 3,000 rpm (CLV)Error correctionHi-MD:
LDC (Long Distance Code)/BIS (Burst
Indicator Subcode)
MD:
ACIRC (Advanced Cross Interleave Reed
Solomon Code)
Sampling frequency44.1 kHzSampling rate converterOptical (digital) input: 32 kHz/44.1 kHz/
48 kHz
Audio formats supported by this
recorder
Recording:
LinearPCM (44.1 kHz/16 bit)
ATRAC3plus (Adaptive TRansform
Acoustic Coding 3 plus) (Hi-SP/Hi-LP)
Playback:
LinearPCM
ATRAC3plus
AT R AC3
AT R AC
MP3 (MPEG-1 Audio Layer-3/Sampling
frequency 44.1 kHz/Bit rate 32 - 320 kbps
(constant/variable bit rate))
Modulation systemHi-MD:
1-7RLL (Run Length Limited)/PRML
(Partial Response Maximum Likelihood)
MD:
EFM (Eight to Fourteen Modulation)
Frequency response20 to 20,000 Hz Β± 3 dB
Inputs 1) MIC: stereo mini-jack
(minimum input level 0.13 mV)
Line in:
stereo mini-jack for analog input
(minimum input level 49 mV)
optical (digital) mini-jack for optical
(digital) input
Outputsi: stereo mini-jack (dedicated remote control
jack)
Maximum output (DC)Headphones:
2.8 mW + 2.8 mW (16 -¦) (European
models)
5 mW + 5 mW (16 -¦) (Other models)
Power requirementsSony AC Power Adapto r connected at the DC
IN 3V jack:
120 V AC, 60 Hz
The recorder:
Nickel metal hydride rechargeable battery
NH-14WM 1.2V 1,350 mAh (MIN) Ni-MH
LR6 (size AA) alka line battery
AC power adaptor DC 3V
Operating temperature+5Β°C (+41Β°F) to +35Β°C (+95Β°F)Battery operation time 2)
1)The LINE IN (OPT) jack is used to connect
either a digital (optical) cable or a line
(analog) cable.
2)Measured in accordance with JEITA .
DimensionsApprox. 80.2 Γ 18.9 Γ 84.1 mm (w/h/d)
(31/4Γ3/4Γ 33/8 in.) (excluding projecting parts
and controls)
MassApprox. 120 g (4.2 oz) (the recorder only)
Approx. 147 g (5.2 oz) (including the
rechargeable battery)
Page 2
MZ-M100
3
TABLE OF CONTENTS
1. SERVICING NOTES
............................................... 4
2. GENERAL ................................................................... 5
3. DISASSEMBLY
3-1. Disassembly Flow ........................................................... 6
3-2. Case (Lower) Block ......................................................... 6
3-3. Main Board ...................................................................... 7
3-4. Panel (Upper) Section ..................................................... 7
3-5. Mechanism Deck (MT-MZNH900-181J) ........................ 8
3-6. Battery Case Block .......................................................... 8
3-7. Gear (BSA), Gear (SB) ................................................... 9
3-8. OP Service Assy .............................................................. 9
3-9. DC Motor SSM18D/C-NP (Spindle) (M701),
DC Motor (Sled) (M702),
DC Motor Unit (Over Write Head Up/Down) (M703) ... 10
3-10. Holder Assy ..................................................................... 10
3-11. Position of Ferrite Core ................................................... 11
4. TEST MODE .............................................................. 12
5. ELECTRICAL ADJUSTMENTS .......................... 16
6. DIAGRAMS
6-1. Block Diagram - MD SERVO Section - ...................... 21
6-2. Block Diagram - AUDIO Section - .............................. 22
6-3. Block Diagram - POWER SUPPLY Section - ............. 23
6-4. Schematic Diagram - MAIN Board (1/9) - ................... 25
6-5. Schematic Diagram - MAIN Board (2/9) - ................... 26
6-6. Schematic Diagram - MAIN Board (3/9) - ................... 27
6-7. Schematic Diagram - MAIN Board (4/9) - ................... 28
6-8. Schematic Diagram - MAIN Board (5/9) - ................... 29
6-9. Schematic Diagram - MAIN Board (6/9) - ................... 30
6-10. Schematic Diagram - MAIN Board (7/9) - ................... 31
6-11. Schematic Diagram - MAIN Board (8/9) - ................... 32
6-12. Schematic Diagram - MAIN Board (9/9) - ................... 33
6-13. Printed Wiring Board
- MAIN Board (Component Side) - ............................... 34
6-14. Printed Wiring Board
- MAIN Board (Conductor Side) - ................................. 35
6-15. Printed Wiring Board - AMP Board - .......................... 36
6-16. Schematic Diagram - AMP Board - .............................. 36
7. EXPLODED VIEWS
7-1. Case (Lower) Section ...................................................... 50
7-2. Panel (Upper) Section ..................................................... 51
7-3. Chassis Section ................................................................ 52
7-4. Mechanism Deck Section (MT-MZNH900-181J) ........... 53
7-5. Microphone Section (ECM-DS70P) ............................... 54
8. ELECTRICAL PARTS LIST ................................ 55 Notes on chip component replacement
-Never reuse a disconnected chip component.
-Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
-Keep the temperature of the soldering iron around 270 ΛC
during repairing.
-Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
-Be careful not to apply force on the conductor when soldering
or unsoldering.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
On power sources
For use in your house: Use the AC power
adaptor supplied with this recorder. Do not
use any other AC power adaptor since it may
cause the recorder to malfunction.
Polarity of the plug
