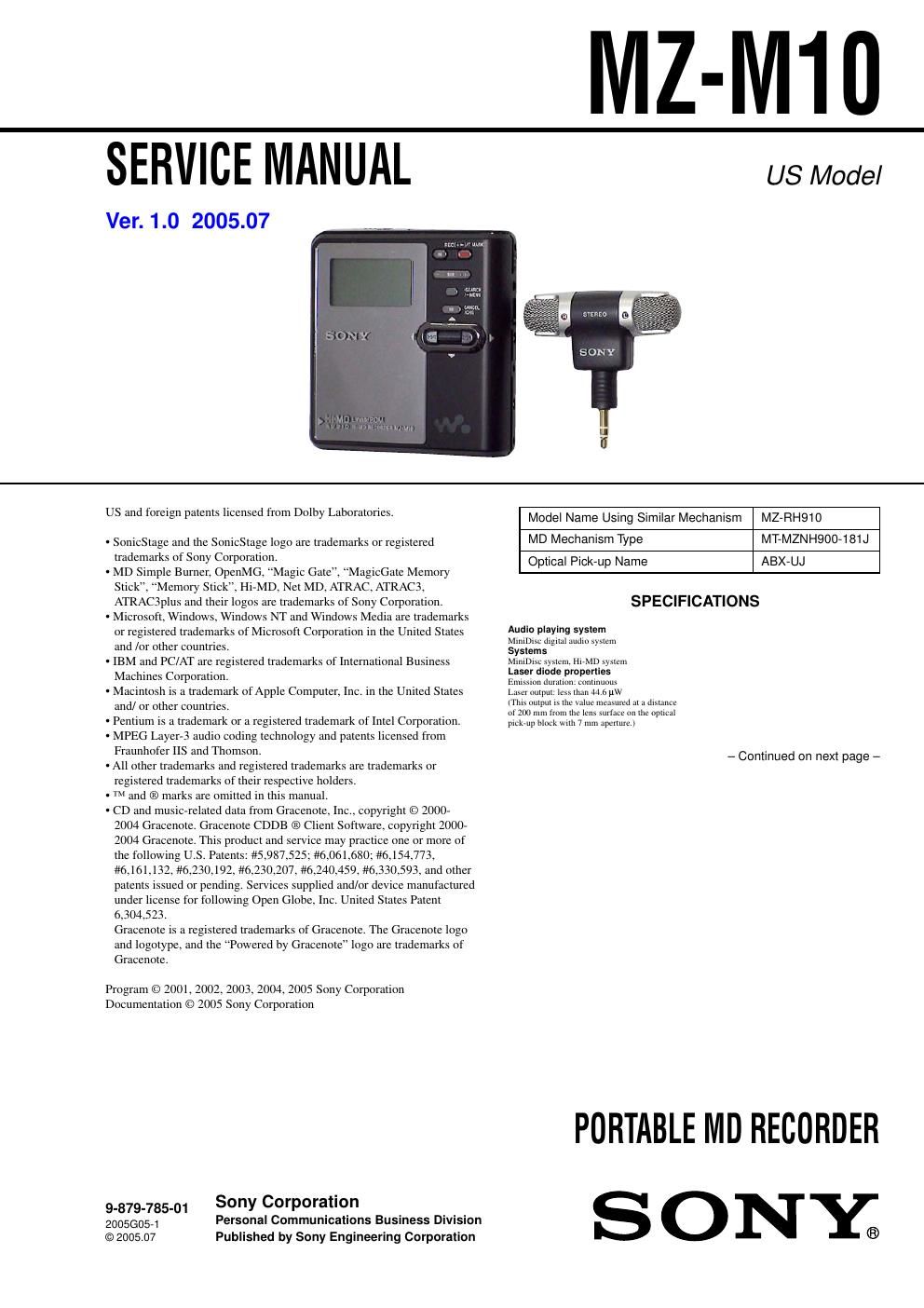

Page: 1 / 64
left right
sony mz m 10 service manual

Extracted text from sony mz m 10 service manual (Ocr-read)


Page 1

2 MZ-M10 Recording and playback time Revolutions Approx. 350 rpm to 3,000 rpm (CLV)Error correctionHi-MD: LDC (Long Distance Code)/BIS (Burst Indicator Subcode) MD: ACIRC (Advanced Cross Interleave Reed Solomon Code) Sampling frequency44.1 kHzSampling rate converterOptical (digital) input: 32 kHz/44.1 kHz/ 48 kHz Audio formats supported by this recorder Recording: LinearPCM (44.1 kHz/16 bit) ATRAC3plus (Adaptive TRansform Acoustic Coding 3 plus) (Hi-SP/Hi-LP) Playback: LinearPCM ATRAC3plus AT R AC3 AT R A C MP3 (MPEG-1 Audio Layer-3/Sampling frequency 44.1 kHz/Bit rate 32 - 320 kbps (constant/variable bit rate)) Modulation systemHi-MD: 1-7RLL (Run Length Limited)/PRML (Partial Response Maximum Likelihood) MD: EFM (Eight to Fourteen Modulation) Frequency response20 to 20,000 Hz Β± 3 dB List of the recording time for each discWhen using a disc in Hi-MD mode When recording on the recorderRecording time 1) 1)Approximate time Recording mode on the recorderCodec/ Bit rate1GB Hi-MD disc80-minute standard disc74-minute standard disc60-minute standard disc PCM LinearPCM/ 1.4Mbps1 hour and 34 minutes28 minutes 26 minutes 21 minutes Hi-SP ATRAC3plus/ 256kbps7 hours and 55 minutes2 hours and 20 minutes2 hours and 10 minutes1 hour and 40 minutes Hi-LP ATRAC3plus/ 64kbps34 hours 10 hours and 10 minutes9 hours and 20 minutes7 hours and 40 minutes When transferring from the Windows computerRecording time 1)2) 2)When transferring 4-minute tracks Codec/Bit rate 1GB Hi-MD disc80-minute standard disc74-minute standard disc60-minute standard disc LinearPCM/1.4Mbps 1 hour and 34 minutes28 minutes 26 minutes 21 minutes ATRAC3plus/256kbps 7 hours and 55 minutes2 hours and 20 minutes2 hours and 10 minutes1 hour and 40 minutes ATRAC3plus/64kbps 34 hours 10 hours and 10 minutes9 hours and 20 minutes7 hours and 40 minutes ATRAC3plus/ 48 kbps 45 hours 13 hours and 30 minutes12 hours and 30 minutes10 hours ATRAC3/132kbps 16 hours and 30 minutes4 hours and 50 minutes4 hours and 30 minutes3 hours and 40 minutes ATRAC3/105kbps 20 hours and 40 minutes6 hours and 10 minutes5 hours and 40 minutes4 hours and 40 minutes ATRAC3/66kbps 32 hours and 40 minutes9 hours and 50 minutes9 hours 7 hours and 20 minutes MP3/128kbps 17 hours 5 hours 4 hours and 30 minutes3 hours and 30 minutes When using a disc in MD modeYou cannot record in MD mode on this recorder. When transferring from the Windows computerRecording time 1)2) 1)Approximate time2)When transferring 4-minute tracks Codec/Bit rate 80-minute standard disc74-minute standard disc60-minute standard disc ATRAC(stereo)/292kbps 80 minutes 74 minutes 60 minutes ATRAC3/132, 105kbps 2 hours and 40 minutes2 hours and 28 minutes2 hours ATRAC3/66kbps 5 hours and 20 minutes4 hours and 56 minutes4 hours Inputs 1) MIC: stereo mini-jack (minimum input level 0.13 mV) Line in: stereo mini-jack for analog input (minimum input level 49 mV) optical (digital) mini-jack for optical (digital) input 1)The LINE IN (OPT) jack is used to connect either a digital (optical) cable or a line (analog) cable. Outputsi: stereo mini-jack (dedicated remote control jack) Maximum output (DC)Headphones: 2.8 mW + 2.8 mW (16 -„¦) (European models) 5 mW + 5 mW (16 -„¦) (Other models) Power requirementsSony AC Power Adaptor connected at the DC IN 3V jack: 120 V AC, 60 Hz The recorder: Nickel metal hydrid e rechargeable battery NH-10WM 1.2V 900 mAh (MIN) Ni-MH LR6 (size AA) alkaline battery AC power adaptor DC 3V Operating temperature+5Β°C (+41Β°F) to +35Β°C (+95Β°F)Battery operation time 2) 2)Measured in accordance with JEITA. DimensionsApprox. 80.2 Γ— 20.7 Γ— 84.3 mm (w/h/d) (31/4 Γ— 27/32 Γ— 33/8 in.) (excluding projecting parts and controls) MassApprox. 112 g (4.0 oz) (the recorder only) Approx. 138 g (4.9 oz) (including the rechargeable battery) When playing continuously in Hi-MD mode (Unit: approx.hours)(JEITA) When playing continuously in MD mode (Unit: approx.hours)(JEITA) Battery life When recording continuously in Hi-MD mode (Unit: approx.hours)(JEITA 1)) Disc type BatteriesLinearPCM Hi-SP Hi-LP 1GB Hi-MD disc NH-10WM 2) 45.56.5 LR6 3) 233.5 NH-10WM + LR6 6.5 9 11 60/74/80-minute standard discNH-10WM 3.5 5.5 6.5 LR6 4 6.5 7.5 NH-10WM + LR6 8 13 15 1)Measured in accordance with the JEITA (Japan Electronics and Information Technology Industries Association) standard. 2)When using a 100% fully charged nickel metal hydride rechargeable battery3)When using a Sony LR6 (size AA) alkaline dry battery (produced in Japan) Disc type Batteries LinearPCM Hi-SP Hi-LP MP3 1) 1)Tracks transferred at 128 kbps 1GB Hi-MD disc NH-10WM 6.5 9.5 11 10 LR6 10.5 15.5 18 16.5 NH-10WM + LR6 20 30 34.5 31.5 60/74/80-minute standard discNH-10WM 5.5 9 11 10 LR6 8.5 1518 16.5 NH-10WM + LR6 16.5 28.5 34.5 31.5 Disc type Batteries SP LP2 LP4 60/74/80-minute standard discNH-10WM 10 11 12 LR6 17.520 21 NH-10WM + LR6 33 37 39.5 Supplied accessoriesAC power adaptor Earphones Stereo microphone USB cable NH-10WM Nickel metal hybride rechargeable battery Battery carrying case Dry battery case Clamp filters (small-size) CD-ROM (SonicStage/MD Simple Burner/Hi-MD WAV Importer for Mac)* Carrying poach * Do not play a CD-ROM on an audio CD player. Design and specifications are subject to change without notice.

Page 2

3 MZ-M10 Notes on chip component replacement- Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing - Keep the temperature of the soldering iron around 270 ˚C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation e xposure. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PA RT NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. On powe r sources -Fo r use in your house: Use the AC power adaptor supplied with th is recorder. Do not use any other AC power adaptor si nce it may cause the recorder to ma lfunction. Polarity of the plug TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 4 2. GENERAL ................................................................... 5 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 6 3-2. Case (Lower) Block ......................................................... 6 3-3. MAIN Board .................................................................... 7 3-4. Panel (Upper) Section ..................................................... 7 3-5. Mechanism Deck (MT-MZNH900-181J) ........................ 8 3-6. Battery Case Block .......................................................... 8 3-7. Gear (BSA), Gear (SB) ................................................... 9 3-8. OP Service Assy .............................................................. 9 3-9. DC Motor SSM18D/C-NP (Spindle) (M701), DC Motor (Sled) (M702), DC Motor Unit (Over Write Head Up/Down) (M703) ... 10 3-10. Holder Assy ..................................................................... 10 3-11. Position of Ferrite Core ................................................... 11 4. TEST MODE .............................................................. 12 5. ELECTRICAL ADJUSTMENTS .......................... 16 6. DIAGRAMS 6-1. Block Diagram -“ MD SERVO Section -“ ........................ 21 6-2. Block Diagram -“ AUDIO Section -“ ................................ 22 6-3. Block Diagram -“ POWER SUPPLY Section -“ ............... 23 6-4. Schematic Diagram -“ MAIN Board (1/9) -“ .................... 25 6-5. Schematic Diagram -“ MAIN Board (2/9) -“ .................... 26 6-6. Schematic Diagram -“ MAIN Board (3/9) -“ .................... 27 6-7. Schematic Diagram -“ MAIN Board (4/9) -“ .................... 28 6-8. Schematic Diagram -“ MAIN Board (5/9) -“ .................... 29 6-9. Schematic Diagram -“ MAIN Board (6/9) -“ .................... 30 6-10. Schematic Diagram -“ MAIN Board (7/9) -“ .................... 31 6-11. Schematic Diagram -“ MAIN Board (8/9) -“ .................... 32 6-12. Schematic Diagram -“ MAIN Board (9/9) -“ .................... 33 6-13. Printed Wiring Board -“ MAIN Board (Component Side) -“ ............................... 34 6-14. Printed Wiring Board -“ MAIN Board (Conductor Side) -“ ................................. 35 6-15. Printed Wiring Board -“ AMP Board -“ ............................ 36 6-16. Schematic Diagram -“ AMP Board -“ ............................... 36 7. EXPLODED VIEWS 7-1. Case (Lower) Section ...................................................... 50 7-2. Panel (Upper) Section ..................................................... 51 7-3. Chassis Section ................................................................ 52 7-4. Mechanism Deck Section (MT-MZNH900-181J) ........... 53 7-5. Microphone Section (ECM-DS70P) ............................... 54 8. ELECTRICAL PARTS LIST ................................ 55
