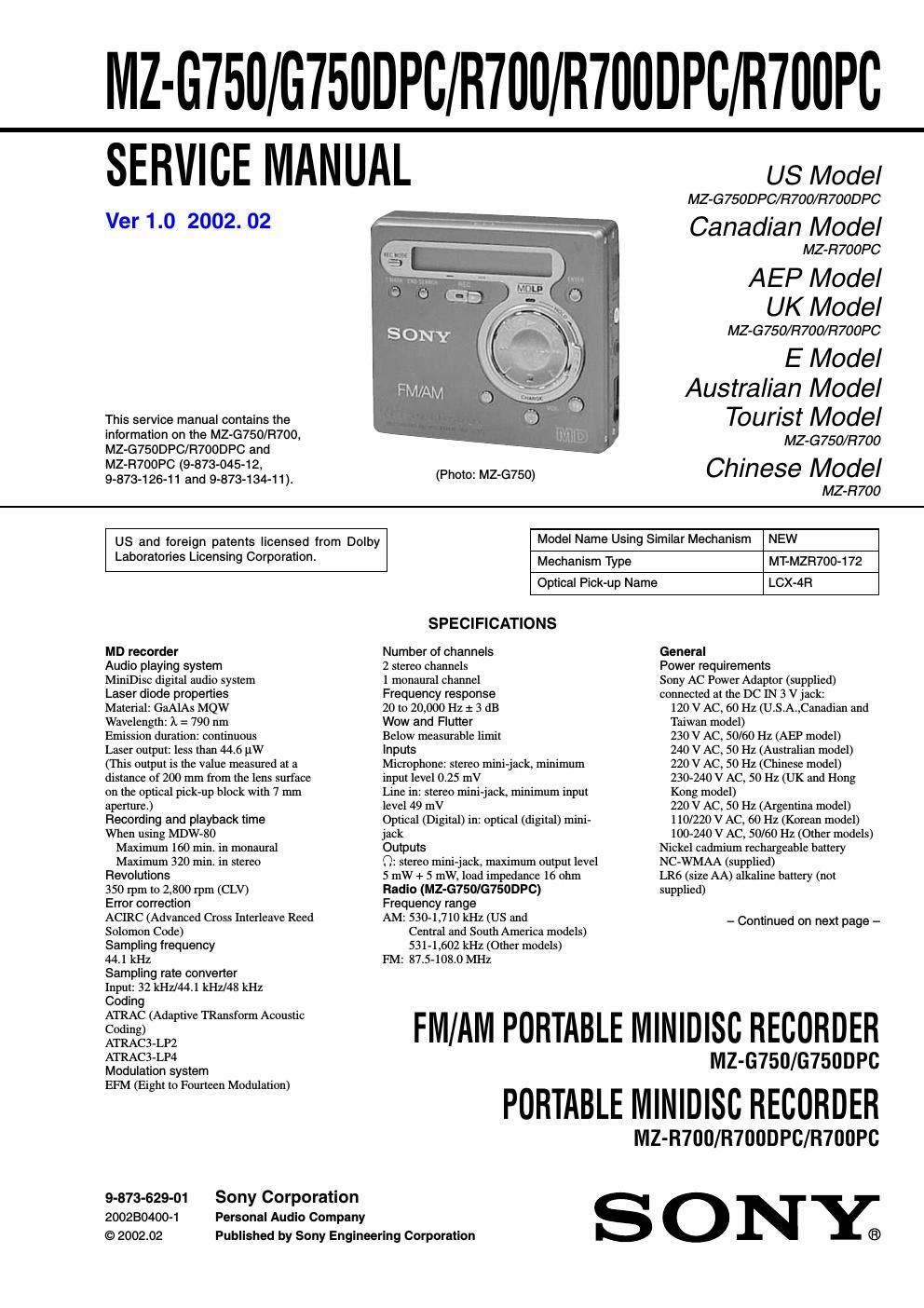

Sony mz g 700 dpc service manual

Page 1

2 Flexible Circuit Board Repairing - Keep the temperature of the soldering iron around 270°C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be damaged by heat. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Battery operation time Battery life 1) (MZ-G750/G750DPC) When recording 2) (Unit: approx.hours) (EIAJ 3)) Batteries Stereo LP2 LP4 NC-WMAA Nickel Cadmium 4 6 7.5 rechargeable battery 4) LR6 (SG) Sony alkaline dry 9 6) 136) 166) battery 5) 1) The battery life may be shorter due to operating conditions and the temperature of the location. 2)When you record, use a fully charged rechargeable battery.3)Measured in accordance with the EIAJ (Electronic Industries Association of Japan) standard. 4)When using a 100% fully charged rechargeable battery.5)When using a Sony LR6 (SG) STAMINA alkaline dry battery (produced in Japan). 6)Recording time may differ according to the alkaline batteries. When playing(Unit: approx.hours) (EIAJ 1)) Batteries Stereo LP2 LP4 NC-WMAA Nickel Cadmium11.5 14 16 rechargeable battery 2) LR6 (SG) Sony alkaline dry 36 42 48 battery 3) 1) Measured in accordance with the EIAJ (Electronic Industries Association of Japan) standard. 2)When using a 100% fully charged rechargeable battery.3)When using a Sony LR6 (SG) STAMINA alkaline dry battery (produced in Japan). When using the radio(EIAJ 1)) Batteries Approx. hours NC-WMAA Nickel Cadmium rechargeable 9.5 battery 2) LR6 (SG) Sony alkaline dry battery 3) 28.5 1)Measured in accordance with the EIAJ (Electronic Industries Association of Japan) standard. 2)When using a 100% fully charged rechargeable battery.3)When using a Sony LR6 (SG) STAMINA alkaline dry battery (produced in Japan). Battery life 1) (MZ-R700/R700DPC/R700PC )(Unit: approx.hours) (EIAJ 2)) Batteries Stereo LP2 LP4 NC-WMAA Nickel Cadmium Recording 4 6 7.5 rechargeable battery 3) Playback 13 14.5 18 LR6 (SG) Sony alkaline dry Recording 9 13 16 battery 4) Playback 40 46 53 1)The battery life may be shorter due to operating conditions and the temperature of the location. 2)Measured in accordance with the EIAJ (Electronic Industries Association of Japan) standard. 3)When using a 100% fully charged rechargeable battery.4)When using a Sony LR6 (SG) STAMINA alkaline dry battery (produced in Japan). Dimensions Approx. 81 × 28.1 × 74.4 mm (w/h/d) (3 1/4 × 1 1/8 × 3 in.) without projections. Mass Approx. 118 g (4.2 oz) the recorder only (MZ-G750/G750DPC) Approx. 116 g (4.1 oz) the recorder only (MZ-R700/R700DPC/R700PC) Supplied accessories AC power adaptor (1) Headphones/earphones with a remote control (1) Optical cable (1) NC-WMAA nickel cadmium rechargeable battery (1) Rechargeable battery carrying case (1) Carrying pouch/carrying case with a belt clip (except U.S.A model) (1) Design and specifications are subject to change without notice.SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT Ã- LA SÉCURITÉ!! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. MZ-G750/G750DPC/R700/R700DPC/R700PC
