Sony mxd d 3 schematics

This is the 7 pages manual for sony mxd d 3 schematics.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 7
left right
sony mxd d 3 schematics

Extracted text from sony mxd d 3 schematics (Ocr-read)

Page 1

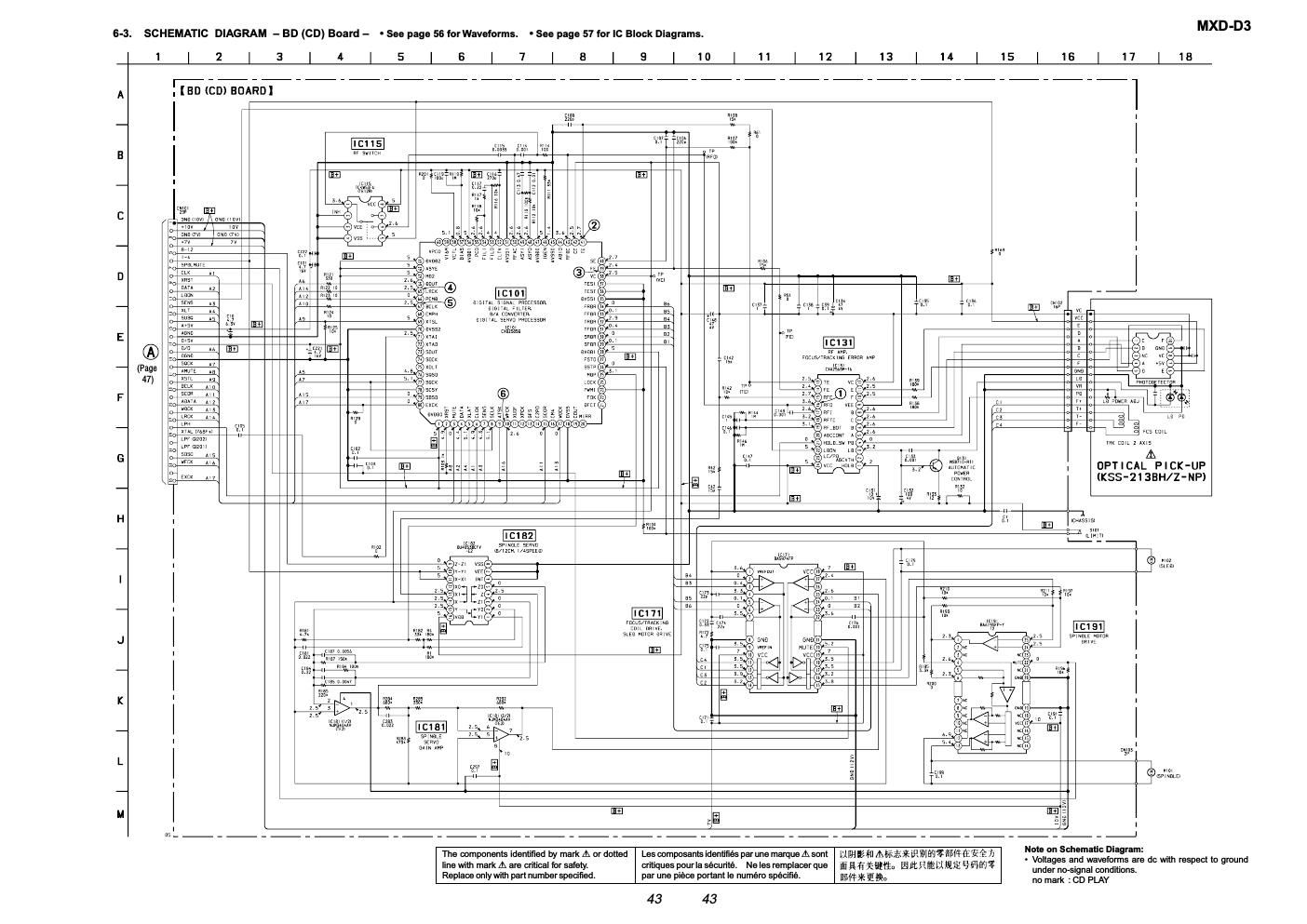

44 44 MXD-D3 6-4. SCHEMATIC DIAGRAM -“ BD (MD) Board (1/2) -“ - See page 56 for Waveforms. - See page 59 for IC Block Diagrams. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Note on Schematic Diagram: - Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : MD STOP (Page 45)
