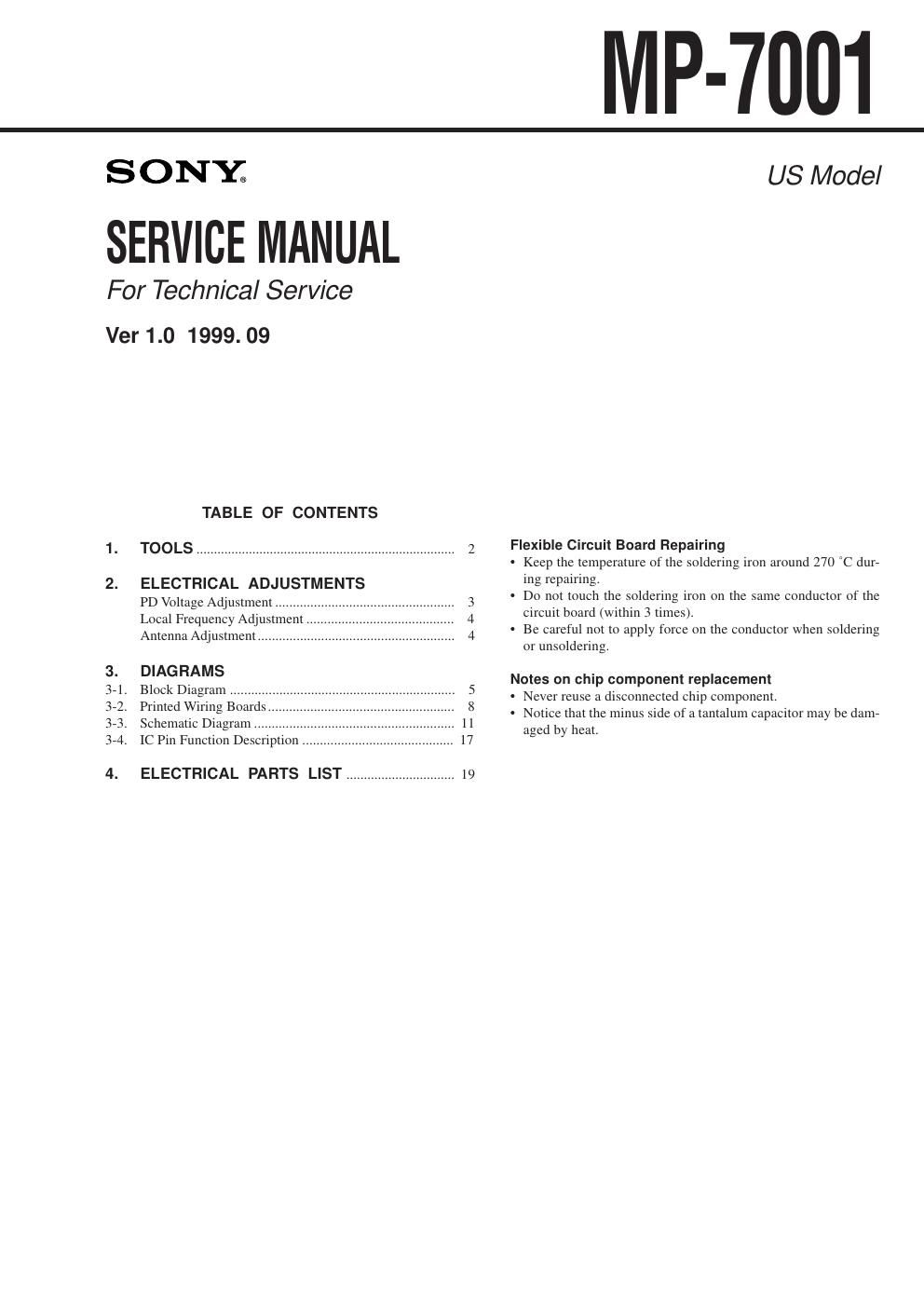

Extracted text from sony mp 7001 service manual (Ocr-read)
Page 1
Ð 2 Ð
MANIAL
SECTION 1
TOOLS
Fig. Description Part No. Remarks
1Programming Jig J-2503-006-A Include 23456
2Programming Jig J-2502-043-2
3Rom Writer Software J-2503-007-A
Fig. Description Part No. Remarks
4Manual J-2503-008-A
5AC Adaptor 1-473-709-11
6Cable (RS-232C) 1-777-797-12
2 Programming Jig 3 Rom Writer Software 4 Manual
5 AC Adaptor 6 Cable (RS-232C)
1
[ Connecting MP-7001 and Programming Jig ]
1 Peel off t he label (Blank) on the back of the pager cabinet.2 Remove the batteries.3 Set the Pager in the programming jig.4 Lower the programming jig clamp and secure the pager in place.
3
4 1
label (Blank)
2 Dry BatteryMP-7001
IBM-PC (not supplied)
Cable
(RS-232C)
9 pin
D-Sub
25 pin
D-Sub
Programming JigAC Adaptor
