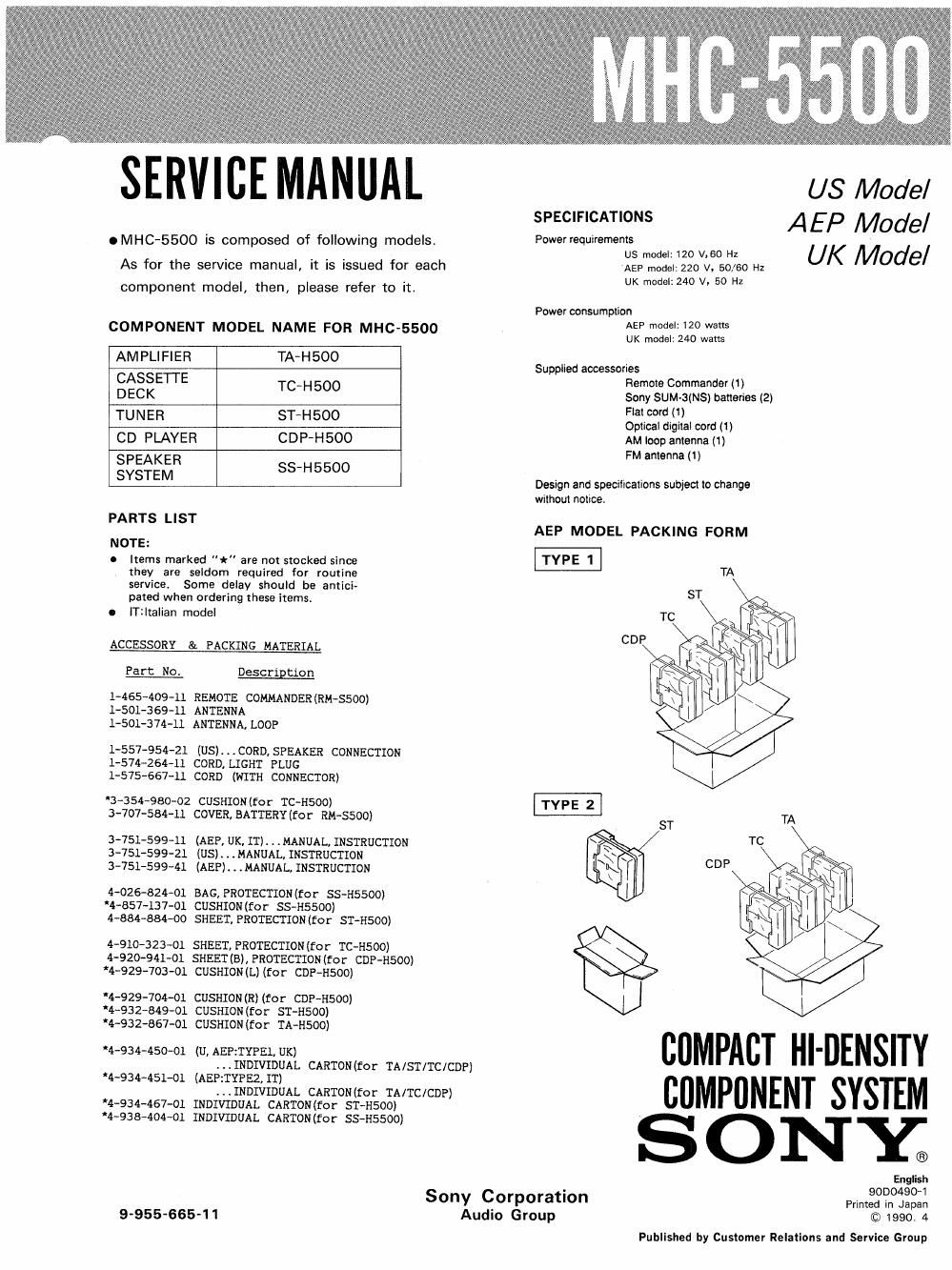

SERVICE MANUAL
oMHC-5500 is composed of following models.
As for the service manual, it is issued for each
component model, then, please refer to it
COMPONENT MODEL NAME FOR MHC-5500
AMPLIFIER TA-HSOO
CASSETTE _
DECK TC H500
TUNER ST-H500
CD PLAYER CDP-H500
SPEAKER _
SYSTEM 38 H5500
PARTS LIST
NOTE:
0 Items marked "i" are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.
0 IT: Italian model
ACCESSORY & PACKING MATERIAL
Part No Descrigtion
1-465-409-11 REMOTE COMMANDER(RM-SSOO)
1-501-369-11 ANTENNA
1-501-374-11 ANTENNA, LOOP
1-557-954-21 (US). . . CORD, SPEAKER CONNECTION
1-574-264-11 CORD. LIGHT PLUG
1-575-667-11 CORD (WITH CONNECTOR)
'3-354-980-02 CUSHION(for TC-HSOO)
3-707-584-11 COVER, BATTERYIfor RM-SSOO)
3-751-599-11 (AEP, UK, IT). . I MANUAL, INSTRUCTION
3-751-599-21 (US). . MANUAL, INSTRUCTION
3-751-599-41 (AEP) . . . MANUAL, INSTRUCTION
4-026-824-01 BAG, PROTECTION(for SS-HSSOO)
4-857-137-01 CUSHION(for SS-HSSOO)
4-884-384-00 SHEET. PROTECTION (for ST-HSOO)
4-910-323-01 SHEET,PROTECTION(for TC-H500)
4-920-941-01 SHEET(B),PROTECTION(fot CDP-HSOO)
*4-929-703-01 CUSHION(L)(for CDP-HSOO)
4-929-704-01 CUSHIONIRI (for CDP-HSOO)
4-932-849-01 CUSHION(for ST-H500)
4-932-867-01 CUSHION(for TA-HSOO)
4-934-450-01 (U, AEP:TYPEI, UK)
.INDIVIDUAL CARTOMfor TA/STITC/CDP)
t4_934-451-01 (AEPzTYPEZ, IT)
...INDIVIDUAL CARTON (for TA/TC/CDP)
*4-934-457-0). INDIVIDUAL CARTON (for ST-HSOO)
*4-938-404-01 INDIVIDUAL CARTON(for SS-HSSOO)
Sony Corporation
Audio Group © 1990. 4
9-955-665-11
US Mode/
AEP Model
UK Model
SPECIFICATIONS
Power requirements
US model: 120 V,60 Hz
AEP model: 220 V, 50/60 Hz
UK model: 240 V, 50 Hz
Power consumplion
AEP model: 120 watts
UK modeI: Z40 wens
Supplied accessories
Remote Commander (1)
Sony SUM-3(NS) batteries (2)
Flat cord (1)
Optical digital card (I)
AM loop anlenna ( 1)
FM antenna (1)
Design and specifications subject to change
without nolice,
AEP MODEL PACKING FORM
CflMPACT Hl-DENSITY
CUMPDNENT SYSTEM
SONY;
English
90D0490-1
Printed in Japan
Published by Customer Relations and Service Group
