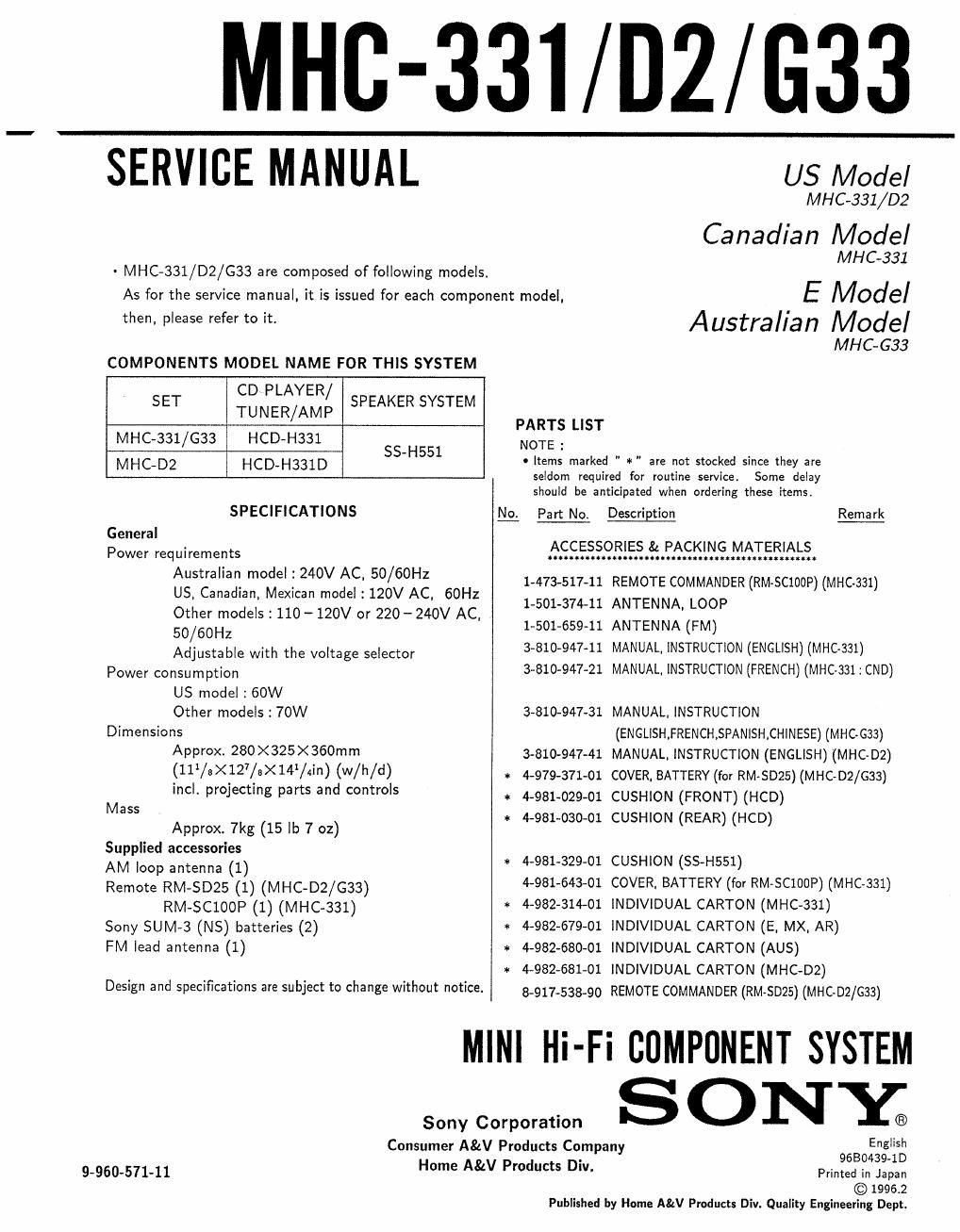

Page 1
MHC-331/DZ/G33
SERVICE MANUAL
- MHC-331/D2/633 are composed of following models
As for the service manual, it is issued for each component model,
then, please refer to it.
COMPONENTS MODEL NAME FOR THIS SYSTEM
CD-PLAYER/
SET TUNER/AMP SPEAKER SYSTEM
MHC-331/G33 HCD-H33l
SS-H551
MHC-DZ HCD-H331D
SPECIFICATIONS
General
Power requirements
Australian model : 240V AC, 50/60Hz
US. Canadian, Mexican model : 120V AC, 60Hz
Other models : 110- 120V or 220- 240V AC,
50/60Hz
Adjustable with the voltage selector
Power consumption
US model : 60W
Other models : 70W
Dimensions
Approx. 280x325><360mm
(111/3x127/Ix141/4In) (w/h/d)
incl. projecting parts and controls
Mass
Approx. 7kg (15 lb 7 oz)
Supplied accessories
AM loop antenna (1)
Remote RM-SDZS (1) (MHC-D2/G33)
RM-SCIOOP (1) (MHC-33l)
Sony SUM-3 (NS) batteries (2)
FM lead antenna (1)
Design and specifications are subject to change without notice.
US Model
MHC-331/02
Canadian Model
MHC-331
E Model
Australian Model
MHC-G33
PARTS LIST
NOTE :
0 Items marked " t " are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items,
& Part No Description Remark
ACCESSORIES & PACKING MATERIALS
1-473-517-11 REMOTE COMMANDER (RM-SCIOOP) (MHC-331)
1-501-374-11 ANTENNA, LOOP
1.501.65941 ANTENNA (FM)
$810-947-11 MANUAL, INSTRUCTION (ENGLISH) (MHC-331)
3-810-947-21 MANUAL, INSTRUCTION (FRENCH) (MHC~331:CND)
3-810-947-31 MANUAL. INSTRUCTION
(ENGLISH,FRENCH,SPANISH,CHINESE) (MHC-G33)
3-810v947-41 MANUAL. INSTRUCTION (ENGLISH) (MHCDZ)
* 4-979-371-01
* 4-981-029-01
* 4-981~030-01
COVER, BATTERY (for RM-SDzS) (MHCDz/caa)
CUSHION (FRONT) (HCD)
CUSHION (REAR) (HCD)
* 4-981-329-01
4-981<643-01
* 4-982-314-01
x 4482-6794)].
* 4-982-680e01
t 4-982-681-01
8-917-538-90
NI Hi-Fi COMPONENT SYSTEM
CUSHION (5SH551)
COVER. BATTERY (for RM-SClOOP) (MHC331)
INDIVIDUAL CARTON (MHC-331)
INDIVIDUAL CARTON (E. MX, AR)
INDIVIDUAL CARTON (AUS)
INDIVIDUAL CARTON (MHC-D2)
REMOTE COMMANDER (RM-SD25) (MHCD2/G33)
Sony Corporation S 0 N m
Consumer A&V Products Company
Home A&V Products Div.
9-960-571-11
English
96BO439-1D
Printed in Japan
© 1996.2
Published by Home A&V Products Div. Quality Engineering Dept.
