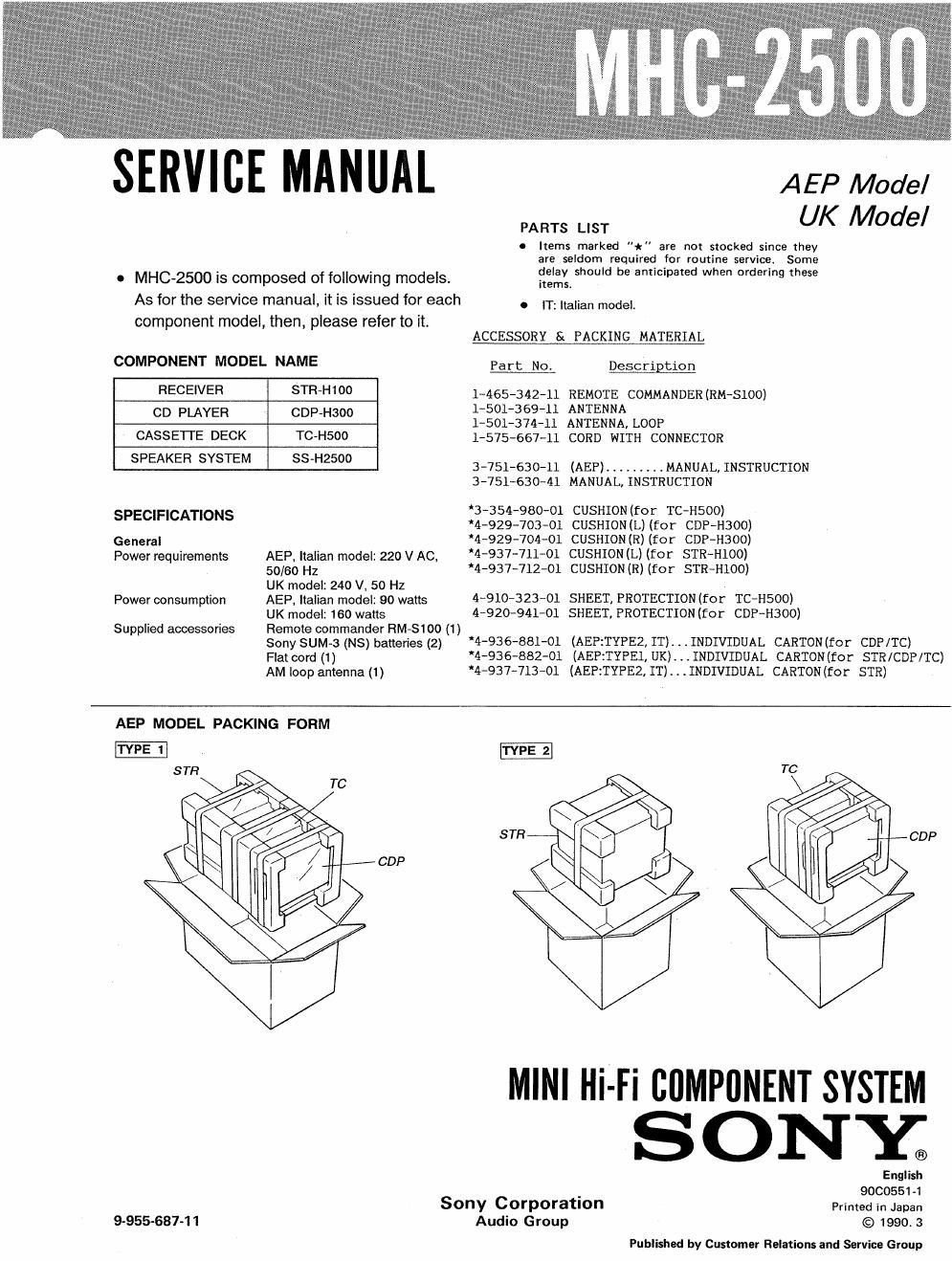

SERVICE MANUAL
0 MHC-2500 is composed of following models.
As for the service manual, it is issued for each
component model, then, please refer to it.
COMPONENT MODEL NAME
RECEIVER STR-HIOO
CD PLAYER CDP»H300
CASSETTE DECK TC-HSOO
SPEAKER SYSTEM SS-H2500
SPECIFICATIONS
General
Power requirements
Power consumption
Supplied accessories
AEP, Italian model: 220 V AC,
50/60 Hz
UK model: 240 V, 50 Hz
AEP, Italian model: 90 watts
UK model: 160 watts
Remote commander RM-SI 00 (1)
Sony SUM-3 (NS) batteries (2)
Flat cord (1)
AM loop antenna (1)
AEP Model
PARTS LIST UK Made/
0 Items marked "t" are not stocked since they
are seldom required for routine service Some
delay should be anticipated when ordering these
items.
0 IT: Italian model.
ACCESSORY & PACKING MATERIAL
Part No Description
1-465-342-11 REMOTE COMMANDERRM-SIOO)
1-501-369-11 ANTENNA
1-501-374-11 ANTENNA, LOOP
1-575-667-11 CORD WITH CONNECTOR
3-751-630-11 (AEP) ......... MANUAL, INSTRUCTION
3-751-630-41 MANUAL, INSTRUCTION
3e354-980-01 CUSHION(f0r TC-HSOO)
*4-929-703-01 CUSHION(L)(for CDP-H300)
*4-929-704-01 CUSHIONIR) (for CDP-H300)
"4-937~711-01 CUSHION(L) (for STR-HlOO)
*4-937-712-01 CUSHION(R) (for STR-HIOO)
4-910-323-01 SHEET,FROTECTION(for TC-H500)
4-920-941-01 SHEET, PROTECTIONIfor CDP-H300)
4-936v881e01 (AEPzTYFEZ, IT). . . INDIVIDUAL CARTON (for CDP/TC)
4-936-882-01 (AEP1TYPEI, UK) . . . INDIVIDUAL CARTON (for STR/CDP/TC)
4-937-713-01 (AEP:TYPE2, IT) . . . INDIVIDUAL CARTON(for STR)
AEP MODEL PACKING FORM
9-955-687-1 1
TYPE 2
MINI Hi4Fi CUMPIINENT SYSTEM
SONY®
English
90005514
Sony Corporation Printed in Japan
Audio Group © 1990 3
Published by Customer Relations and Service Group
