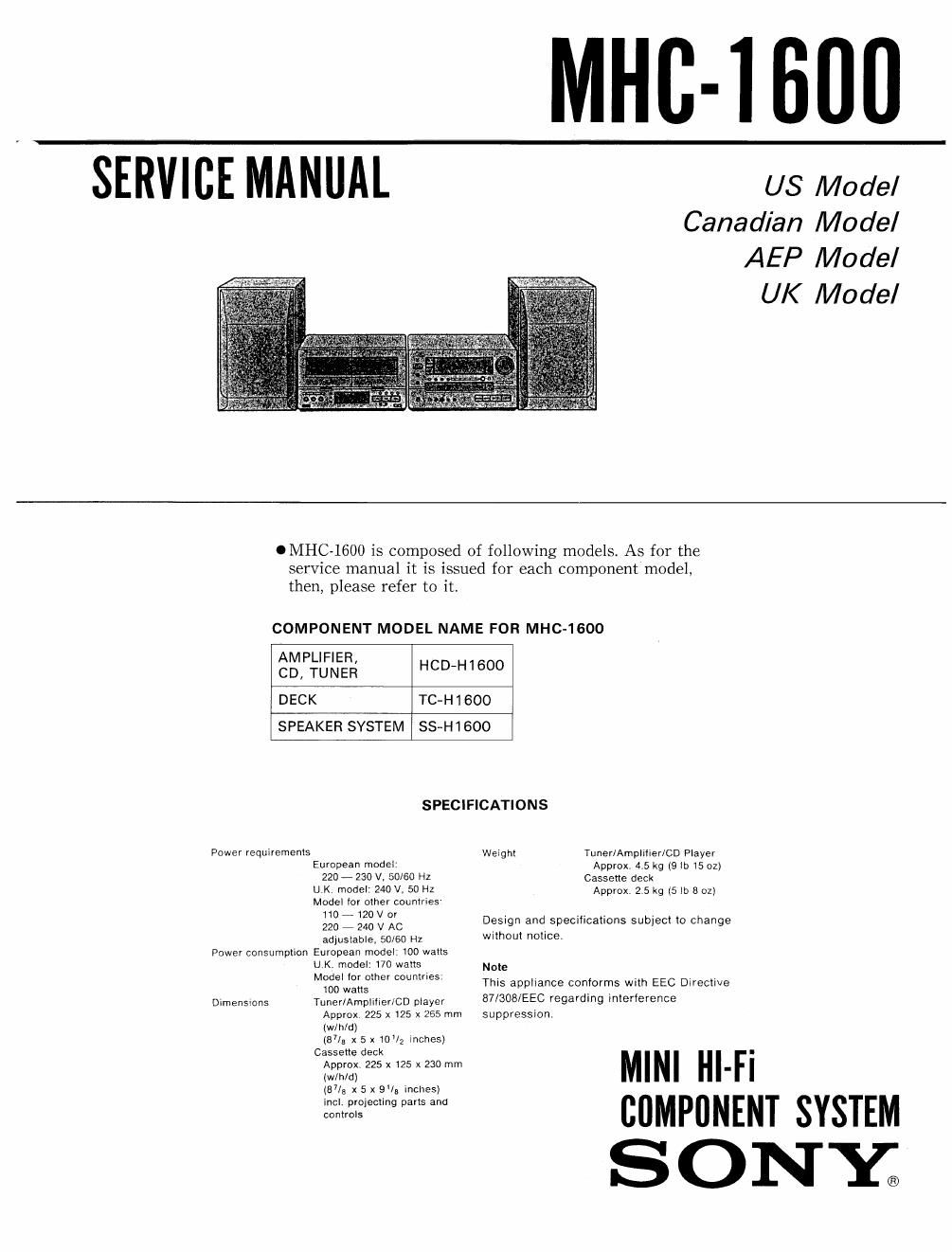

Page 1

MHC-l 600

SERVICE MANUAL

US Model
Canadian Model
AEP Model

UK Model

OMHC-1600 is composed of following models. As for the
service manual it is issued for each component model,
then, please refer to it.

COMPONENT MODEL NAME FOR MHC-1600

AMPLIFIER,
CD, TUNER HCD-HlGOO
DECK TC-H1600
SPEAKER SYSTEM SS~H1600
SPECIFICATIONS
Power requirements Weight Tuner/Ampiiiier/CD Player

European model:
220 7 230 V, 50/60 Hz
U.K. model: 240 V. 50 HZ
Model for other countries
110 - 120 V or
220 7 240 V AC
adjustable. 50/60 Hz
Power consumpiion European model: 100 watts
U K model: 170 walls
Model for olher countries.
100 walls
Tuner/Amplllier/CD player
Approx 225 x 125 x 265 mm
(wlh/d)
(8% x 5 x mug inches)
Cassette deck
Approx. 225 x \25 x 230 mm
(w/h/d)
(87/9 x 5 x 9% inches)
incl. pvojeciing parts and
controls

Dimensions

Approx 4 5 kg (9 io 15 oz)
Cassette deck
Approx. 2 5 kg (5 lb 8 oz)

Design and specifications subjeci to change
without notice.

Note

This appliance coniorms with EEC Directive
87l308/EEC regarding interierence

suppression.
l

CUMPIJNENT SYSTEM
ONE.

Page 2

MHC-1600

ACCESSORY 8i PACKING MATERIAL

RELND. Part No. Descrigtion Remark
|»465-707»|l REMOTE COMMANDER (RM-Sl60)(CND, AEP, G, IT, UK)

l-SOI-369-Il ANTENNA (AEP, e, lT, UK)
l-50I-374-ll ANNTENNA, LOOP

A l-575-I3l-Il CORD, POWER (AEP, G, IT)
3-707-584-l I COVER, BATTERV (REMOTE COMMANDER)
3-753-097-42 MANUAL, INSTRUCTION (AEP, G, IT)

(GERMAN, DUTCH, SWEDISH, ITALIAN, PORTUGUESE)
4-943-347CI CUSHION, UPPER (HCD-HIGOO/TC-HIGOU)
4-943-848-0l CUSHION, UPPER (HOD-HIeOO/TCHIOOC)

* 4-944-315-0I INDIVIDUAL CARTON (US, CND)
* 4-944-3I I-Ol INDIVIDUAL CARTON (AEP, UK)
|»559-9B4-|| CORD, SPEAKER CONNECTION (US, CND)
A I-575-706-Il CORD, POWER (US, CND)
A |-558-032»l| CORD, POWER (UK)
3-753-097»2l MANUAL, INSTRUCTION (US,CND)(ENGL|SH, FRENCH)
3453-09742 MANUAL, INSTRUCTION (AEP,UK)
(ENGLISH, FRENCH, SPANISH, CHINESE)
* 4-944-059-0I CUSHION (SS-H I sooxus, CN D)
*4<920-|5|-02 SHEET, PROTECTION (SS-HI600)(US, CND)

l-465-708-ll REMOTE COMMANDER (RM-SI55)(US)
- Item marked * are not stocked since ClID:CanadiarI
they are seldom required for routIne GzGerInany
service, Some delay should be anticlpated |T= Malian

when ordering these iiems.

Note: Note:
The components identi- Les composanls identifies par
fied by mark Aor dot- une marque Asont critiques

ted line with mark pourla sécurilé.
are critical for safety. Ne Ies remplacer que par une
Replace only with part piece portant Ie numéro spéci-
number specified. fié.
Sony Corporation
Audio Group
9-956-362-1 1 2

Engfish

91 E18894

Printed in Japan

©1991. 5

Published by Customer Relations and Service Group
