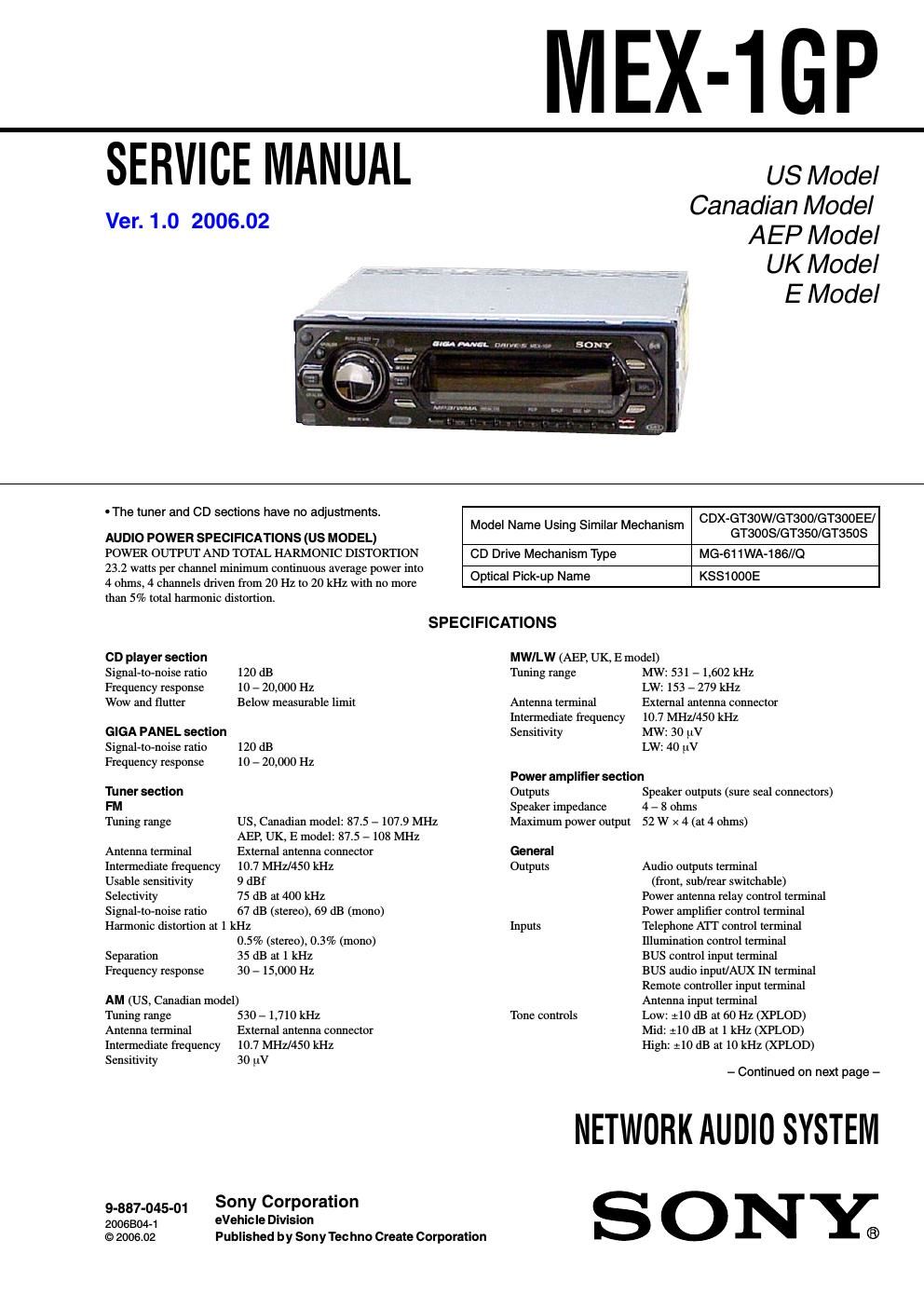

2
MEX-1GP
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
breakdown because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic breakdown and also use
the procedure in the printed matter which is included in the repair
parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
Notes on Chip Component Replacement
-Never reuse a disconnected chip component.
-Notice that the minus side of a tantalum capacitor may be damaged
by heat.
TEST DISCS
This set can playback CD-R and CD-ROM discs. The following
test discs should be used to check the capability:
CD-R test disc TCD-R082LMT (Part No. J-2502-063-1)
CD-RW test disc TCD-W082L (Part No. J-2502-063-2)If the optical pick-up block is defective, please replace the whole
optical pick-up block.
Never turn the semi-fixed resistor located at the side of optical pick-
up block.
optical pick-up
semi-fixed resistor
SERVICE NOTES
This label is located on the bottom of the chassis.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
Power requirements 12 V DC car battery
(negative ground)
Dimensions Approx. 178 × 50 × 181 mm
(7
1/8 × 2 × 7 1/4 in.) (w/h/d)
Mounting dimensions Approx. 182 × 53 × 162 mm
(7
1/4 × 2 1/8 × 6 1/2 in.) (w/h/d)
Mass Approx. 1.2 kg
(2 lb 11 oz)
Supplied accessories Parts for installation and connections (1 set)
Card remote commander RM-X151
USB cable (1)
US and foreign patents licensed from Dolby Laboratories.
Note
This unit cannot be connected to a digital preamplifier or an equalizer
which is Sony BUS system compatible.
Design and specifications are subject to change without
notice.
- AEP, UK, E model
ATTENTION AU COMPOSANT AYANT RAPPORT
Ã- LA SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
Page 2
3
MEX-1GP
SERVO BOAR D CN2 MAIN BOARD
CN751
J-2502-076-1
-CD Playback:
You can play CD-DA (also containing CD TEXT* 1), CD-R/CD-
RW (MP3/WMA files also containing Multi Session and ATRAC
CD (ATRAC3 and ATRAC3plus format).
Type of discs Label on the disc
CD-DA
MP3
WMA
ATRAC CD
*1 A CD TEXT disc is a CD-DA that includes information such as
disc, artist and track name.
EXTENSION CABLE AND SERVICE POSITION
When repairing or servicing this set, connect the jig (extension cable)
as shown below.
-Connect the MAIN board (CN751) and the SERVO board (CN2)
with the extension cable (Part No. J-2502-076-1).
