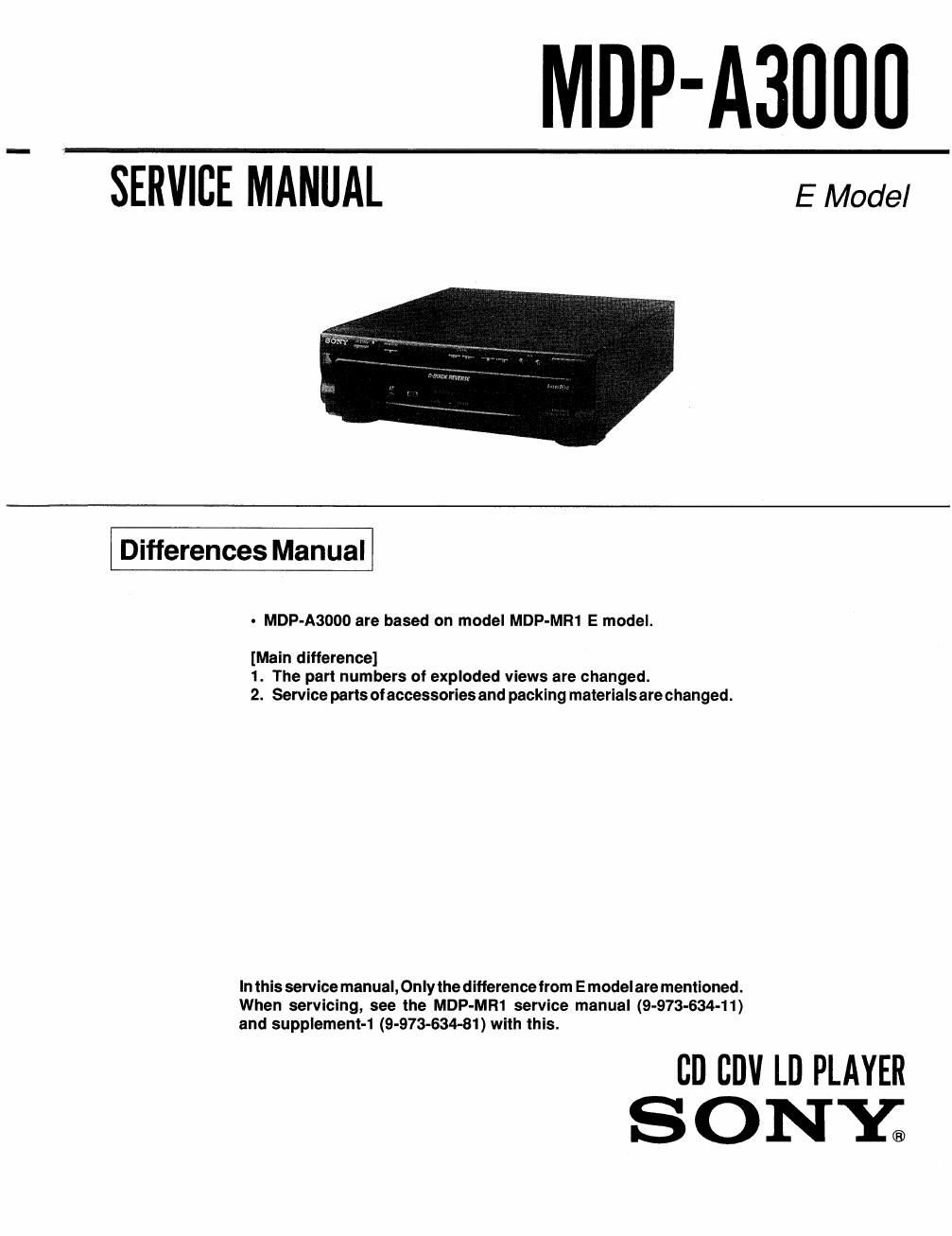

Page 1

MDP-A3Uflfl

SERVICE MANUAL E Model

Differences Manual

. MDP-A3000 are based on model MDP-MR1 E model.

[Main difierence]
1. The part numbers of exploded views are changed.
2. Service parts of accessories and packing materials arechanged.

In this service manual, Only the difference from E model are mentioned.
When servicing, see the MOP-Mm service manual (9-973-634-11)

and supplement-1 (9-973-634-81) with this.
an cnv LD PLAYER
S O N Y®

Page 2

5-1-1. CASE AND FRONT PANEL ASSEMBLY (Page. 5-1)

MDP-MR1 (E) MDP-A3000 (E)
hf. No. Part No. Description Ref. No. Part No. Description

I X-3944-515-l mOR (90E) ASSY (EXCEPT W) 1 X-3945-O43-1 DOOR (90A) ASSY

4 X-3944-516-1 PANEL (90E) ASSV, FRONT (EXCEPT W) 4 X-3945-O42-1 PANEL (90A) ASSY, FRONT

5 3-961-068-11 SEAL, FOOT 5 3-96L068-21 SEAL, FOOT

21 A-6772-990-A REMOTE CONTROL COMPLETE ASSY (EXCEPT "NO -- - (No corresponded parts?
* 22 3-959-554-01 COVER (A'IW),BATTERY - -- (No corresponded parts)

5-1-2. CHUCKING BLOCK ASSEMBLY (Page. 5-2)
mop-mm (E) MDP-A3000 (E)

Ref. No. Part No. Description Ref. No. Part No, Description
66 3-961-079-01 PANELREAR (EXCEPT IW) * 66 3-961-079-31 PANELREAR

ACCESSORIES 81 PACKING MATERIALS

1569-00841
1-575-334-11

ADAPTER, CONVERSION 2P (EXCEPT TW, HK)
WED, CONNECTION

(A/V connecting cable (STEREO), 1,5m)
MANUAL, INSTRUCTION

(ENGLISH, SPANISH, CHINESE) (EXCEPT TW)
REMOTE CONTROL (EMT-23M (EXCEPT TW)
INDIVIDUAL CARTON ASSY (EXCEPT 'IW, HK)

3~798~585-11

A-6772-990-A
* Xu3944-7IO-1

MOP-MR1 (E) MOP-A3000 (E)
Ref. No. Part No. Description Ref. No. Part No. Description

-_ (No corresponded parts)
- (N0 corresponded parts)

__________- (No corresponded parts)

- (No corresponded parts)
* 3-963-767-01 INDIVIDUAL CAR/ION

Engflsh

956090934

Sony Corporation primed in Japan

Consumer A&V Produms Company © 1995. 3

9-973-730-11 Home A&V Products DIV. Published by Personal A&V Products Div.
Quality Englnoenng Dept.

_2_.
