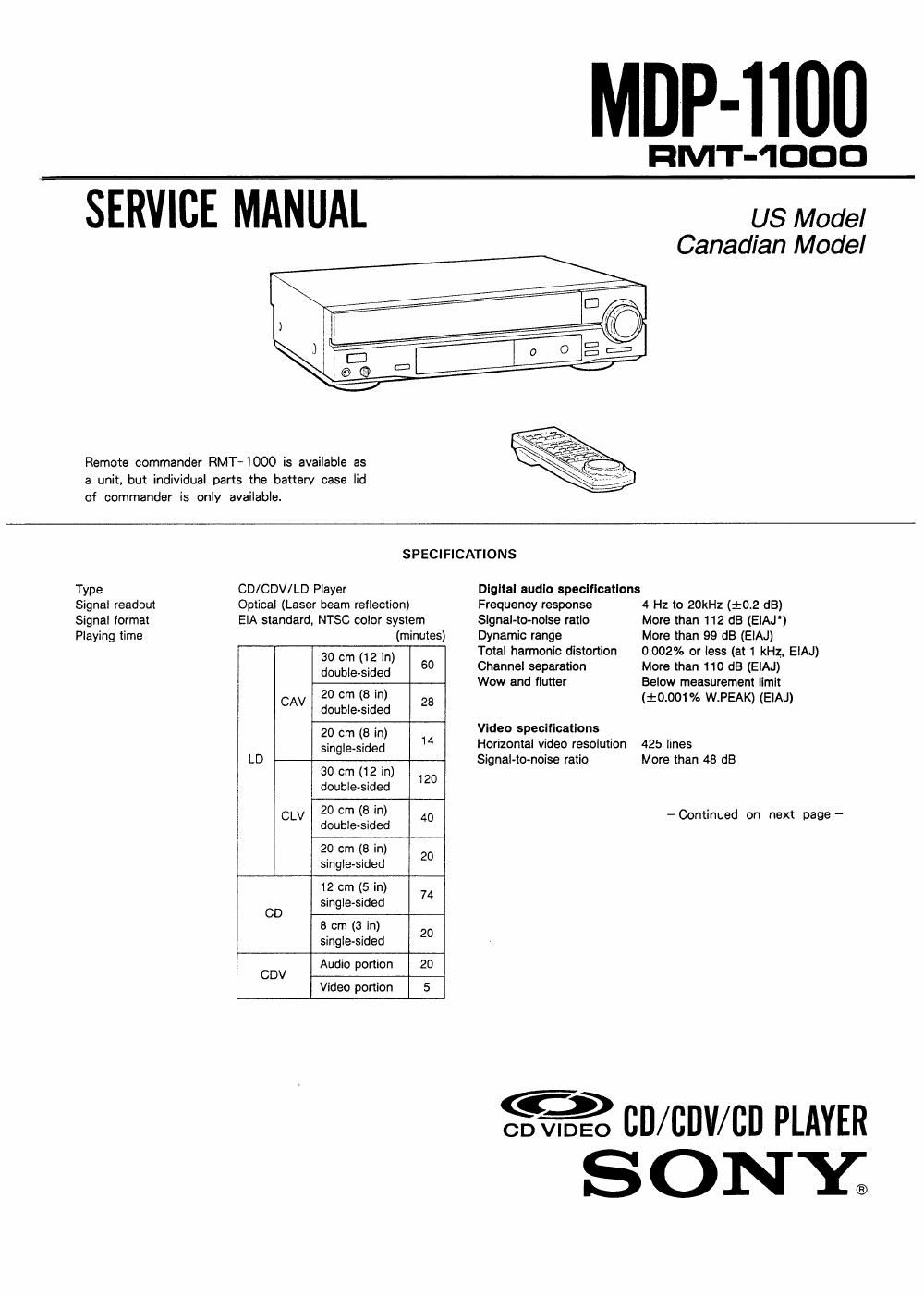

SERVICE MANUAL
Remote commander RMTVIOOO is available as
a unit. but individual parts the battery case lid
of commander is only available.
MDP-ilOD
FlMT-IDDO
US Model
Canadian Model
Type CD/CDV/LD Player
Signal readout Optical (Laser beam reflection)
Signal format EIA standard, NTSC color system
Playing time (minutes)
30 cm (12 in) 60
double-sided
20 cm (8 in)
CAV double-sided 28
20 cm (8 in) 14
singleeided
LD 30 ( )
cm 12 in
double-sided 120
20 cm (8 in)
V
i CL double-sided 4O
20 cm (a in)
singlesided 20
12 cm (5 in)
single-sided 74
CD ( )
8 cm 3 in
single-sided 20
Audio portion 20
CDV
Video portion 5
SPECIFICATIONS
Digital audio specifications
Frequency response
Signal-tonoise ratio
Dynamic range
Total harmonic distortion
Channel separation
Wow and flutter
Video specifications
Horizontal video resolution
Signal-to-noise ratio
4 Hz to 20kHz ($0.2 dB)
More than 112 dB (ElAJ')
More than 99 dB (EIAJ)
0.002% or less (at 1 kHz. EIAJ)
More than 110 dB (EIAJ)
Below measurement limit
(tooow. W.PEAK) (EIAJ)
425 lines
More than 48 dB
-Continued on next page~
$3?) cn/cnwcn PLAYER
SONY)
input/output specifications
Video output
S Video output
1.0 Vp-p, 75 ohms. unbalanced
Luminance signal 1.0 Vp-p, 75 ohms,
unbalanced, negative synchronization
Chrominance signal 0.286 Vp-p, 75
ohms. unbalanced
Stereo L, R
Analog: 200 mVrms
(1 kHz. 40% modulation)
Digital: 200 mVrms
(1 kHz. -20 dB)
Monaural (only ior RFU adaptor)
MIX output: 77.5 mVrms
(1 kHz, -20 dB)
Audio digital output (optical) -18 dBm. wavelength 660 nm
Headphone output 26 mW (32 ohms)
impedance =3 ohms
Mini mini jack DC 5V
MINI-DIN conecior (6 pin)
Audio output
RFU DC output
BAR CODE jack
External control Interface
Interface RS-232C
(25-pin usua type)
Power requirements
Power requirements 120 V AC. 60 Hz
Power consumption 40 W
Weight 3 kg (16 lb 12 oz)
Dimensions Approx. 430 x 115 x 420 mm
(w/h/d)
(17 x 4l1 X 17 inches)
Operating temperature +5'C to +35'C
Ambient humidity 5 to 90%
' Measured according to EIAJ (Electronic industries Association
of Japan) standards.
Remote Commander RMT-iooo
Principle of operation Infrared pulse
Power requirements 3 V DC (2 size AA batteries)
Dimensions Approx. 62 X 44.5 X 185 mm
(w/h/d)
(27/,5 >< 1=/(e>< 73/, inches)
Weight Approx. 170 9 (including batteries),
(6 oz)
Remote Commander RMT-tooo (1)
Size AA (R6) batteries (2)
RFU adaptor RFU-90 U0 (1)
Wdeo connecting cord (phono plug 1 4-» phono plug 1) (1)
Audio connecting cord (phono plug 2 a» phono plug 2) (1)
Design and specifications are subject to change without notice.
as 232C
13 1
000000000000
25 14
Pin No. Signal
1 FG (Frame ground)
2 TxD (Transmit data)
3 RxD (Receive data)
4 :3 RTS (Request to send)
5 CTS (Clear to send)
6 DSR (Data set ready)
7 GND
20 DTR (Data terminal ready)
Each signal contorms to the RS-2320 specifications.
(Output level ON: more than +5V, OFF: less than -5V)
Note
Check the RS-2320 pin assignment of the external computer to
be connected. There is a modem mode and terminal mode for pin
assignment. The RS-2320 pin assignment for this player is the
terminal mode.
