Page 1

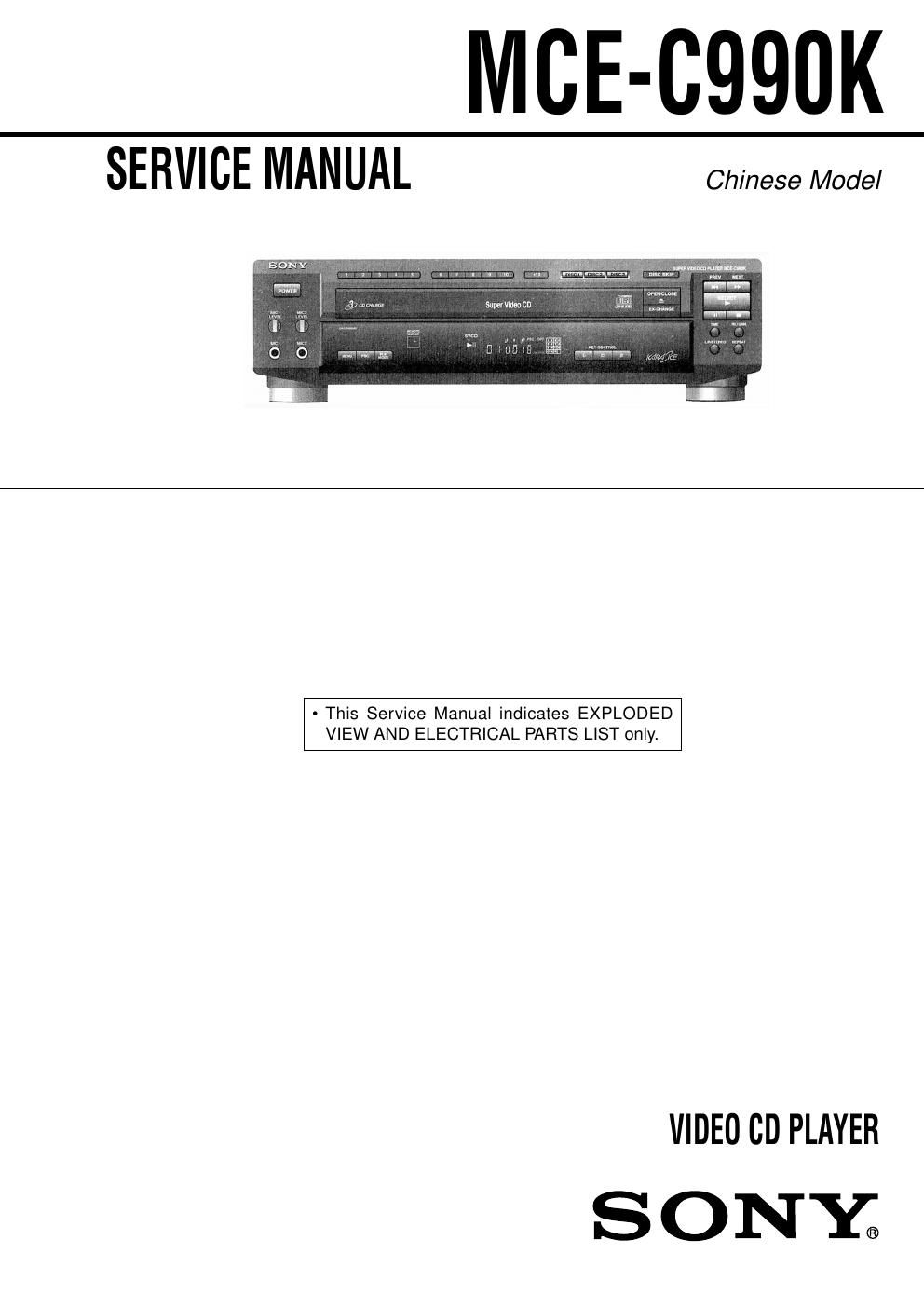

MOE-0990K
SERVICE MANUAL Chinese Model
- This Service Manual indicates EXPLODED
VIEW AND ELECTRICAL PARTS LIST only.
VIDEO CD PLAYER
SONE
Page 2
EXPLODED VIEWS
NOTE:
The mechanical parts with no
reference number in the exploded
views are not supplied.
IJIIHRHHI Abiu¥¥wfillflfl$fifi¢t£§fifi
Eflfiififio Ekflfifiufiifigiififi
fiMHEEfia
-XX, -X mean standardized parts, so they may
have some differences from the original one.
Items marked *" are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
Ref. No. Pan No. Description Remarks Ref. No.
1 A-4735-005-A PANEL SUB ASSY, FRONT A14
2 4-221-712-01 KNOB,ECHO 15
3 4-230-672-01 WINDOW 16
4 A-4725-337-A MICROPHONE BOARD,COMPLETE 17
5 4-230-671-01 FILTER, AC 18
6 4-221-693-01 UPPER CASE 19
7 4-221-906-01 SCREW (4X10), +PWH 20
8 4-221-705-01 PANEL, LOADING 21
9 4-221-706-01 BASE,PANEL #1
10 A-4735-008-A CHANGER SUB ASSY #2
A11 8-820-054-01 OPTICAL PICK-UP BLOCK (KSM-213ECM) #3
12 A-4725-339-A SVCD BOARD,COMPLETE #4
13 1-773-215-11 WIRE(FLAT TYPE) (25 CORE)
Pan No. Description Remarks
1-791-431-11 CORD, POWER
4-221-692-01 PANEL, BACK
1-791-432-11 CORD (WITH CONNECTOR)
A-4725-341-A MAIN BOARD,COMPLETE
4-221-713-01 FOOT
4-221-714-01 RUBBER FOOT
4-221-890-01 WASHER
4-221-888-01 SCREW (3X20), SPECIAL
7-685-148-14 SCREW +P3X12 TYPE2 NON-SLIT
7-685-648-79 SCREW +P3X12 TYPE2 NON-SLIT
7-685-146-29 SCREW +P3X8 TYPE2 SLIT
7-682-145-01 SCREW +P3X4
