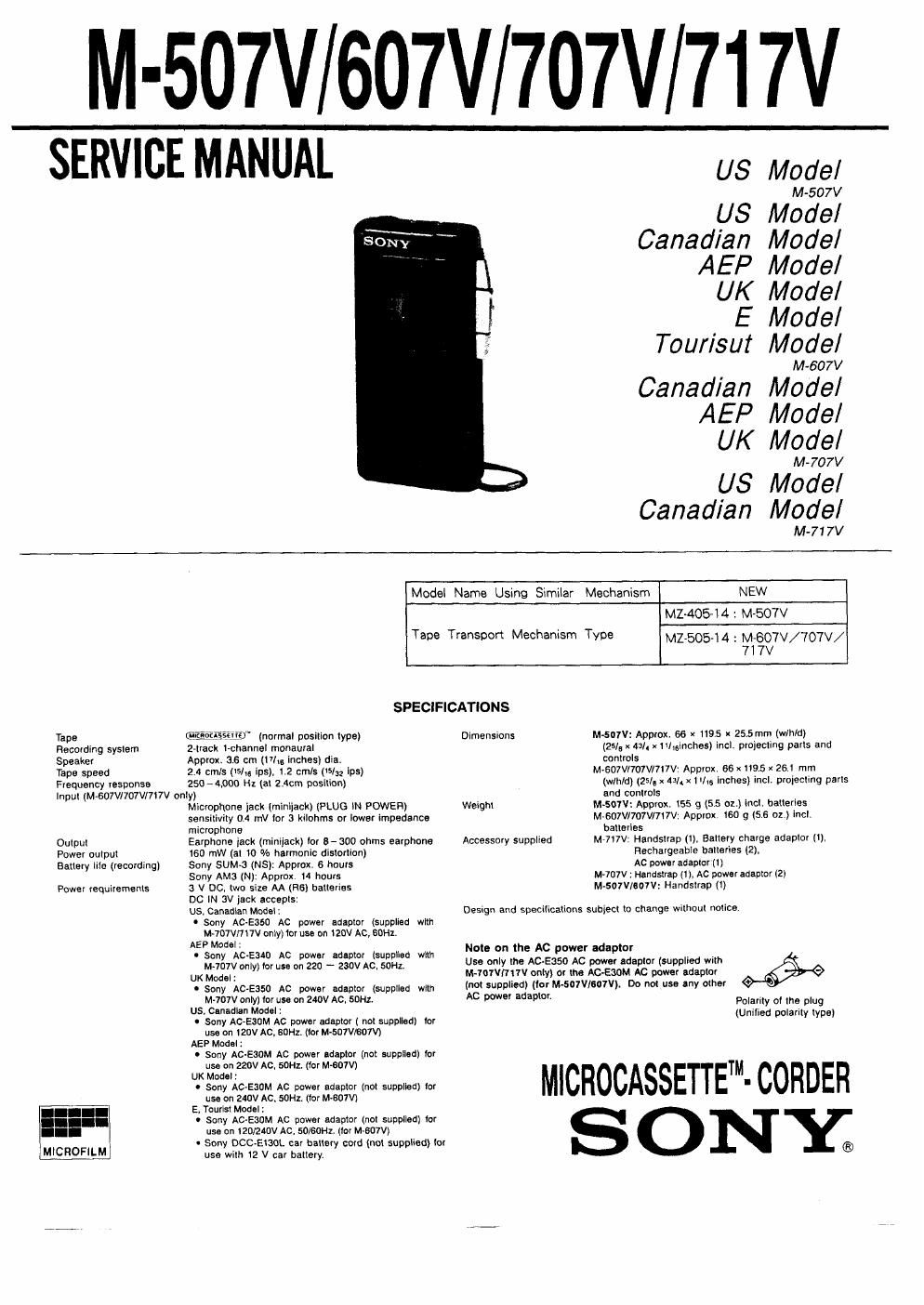

M-507V/607V/707V/717V
____;
PARTS IDENTIFICATION
MAINTENANCE
Cleanlng the heads
Clean the tape heads after every 10 hours of use to enjoy optimum
sound, Moisten a cotton swab or a soft cloth with alcohol and wipe the
parts shown in the illustration.
Record/playback head
Capslan
Erase head
Pinch-roller
Cleaning the casing
Clean the casing with a son cloth slightly moistened with water or a
mild detergent solutionl Do not use alcohol, benzine or thinner as they
may mar the Itnish,
Notes on Microcassette
To protect cassettes Irom
accidental erasure
Break out and
remove the (at).
l ill
.1 '@l//
To reuse a cassette
Cover the slot with plastic tape.
Plastic tape
@ul
illustration) is ditierent.
This unit uses only standard Microcassettes. Non standard
cassettes cannot he used because their L" dimension (see
Only standard
Standard WWW-9 7'" Non standard
I SM! Indentation
P-D on side A. -\Q
l Approx, Approx. .
©l.® 5 mm 25 mm ©Ill®
- x - W
l M L '- I
E] EAR (earphone) lack
[ii MIC (mIcrophone)-
PLUG IN POWER jack
(M-eorv17o7w717v only)
E] |7VOL (volume) conlrol
E Cassette holder
[E] TAPE COUNTER and counter
reset button
(M-survrmvmvv only)
{£1 TAPE SPEED (2.4cm/i.2cm)
switch (Iett slde)
E] cam Dc IN 3v (external
power input) lack (IeIt slde)
LE] Speaker (built-in)
Battery compartment (leer)
MIC (buIIt-In microphone)
This section is extracted from
instruction manualt
E BATT (battery) Indicator
(M-SOTV only)
REC/BAIT (recording/battery)
Indicator (M-607W707VI717V
only)
El muse switch
E13 .(recordlng) button
lfaj « CUE-Iast Iorward/
» REVIEW-rewlnd control
[ijj <(pleybsck) button
Eé] It. (eject/stop) button
Er] FAST PB(1ast playback)
switch
[E] von (Voice Operated
Recording) (OFF/L1H) switch
[iii Handstrap catch
[E Handstrap
SERVICING NOTE
Repairing printed resistor
Cut both sides of the resistor and solder the carbon resistor
having same value in place of printed one or the conductor
side.
l/4W carbon resistor is supplied for the replacing part of
the printed resistort
Notes on chip component replacement
0 Never reuse a disconnected chip component.
0 Notice that the minus side of a tantalum capacitor may be
damaged by heat.
