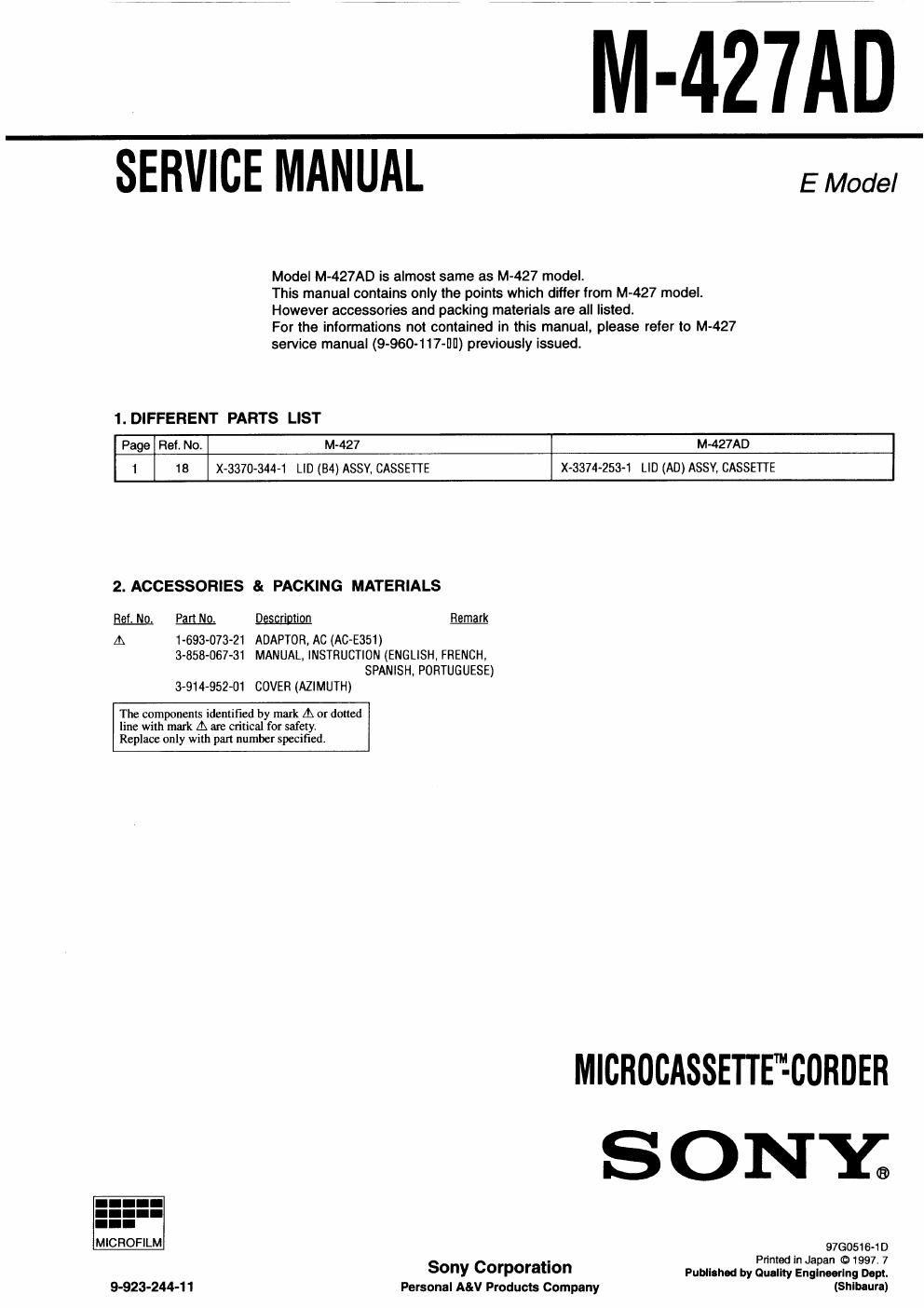

SERVICE MANUAL

_ M-427AD

Model M-427AD is almost same as M-427 model.

This manual contains only the points which differ from M-427 model.
However accessories and packing materials are all listed.

For the informations not contained in this manual, please refer to M-427
service manual (9960-1174111) previously issued.

1.DIFFERENT PARTS LIST

E Model

Page

Ref. No.

M-427

M427AD

1

18

X-3370-344-1 LID (B4) ASSY, CASSETTE

X-3374-253-1 LID (AD) ASSY, CASSETIE

2. ACCESSORIES & PACKING MATERIALS

BELNQ.
A

Par! Ngi W Remark
1-693-073-21 ADAPTOR, AC (AC-E351)

3-858-067-31 MANUAL, INSTRUCTION (ENGLISH, FRENCH,

SPANISH, PORTUGUESE)

3-914-952-01 COVER (AZIMUTH)

The components identified by mark A or dotted
line with mark A}. are critical for safety.
Replace only with part number specified.

9-923-244-1 1

Sony Corporation

MICROCASSETTEICORDER
S 0 NY;

Personal A&V Products Company

976051 6-1 D

Printed In Japan to 1997. 7
