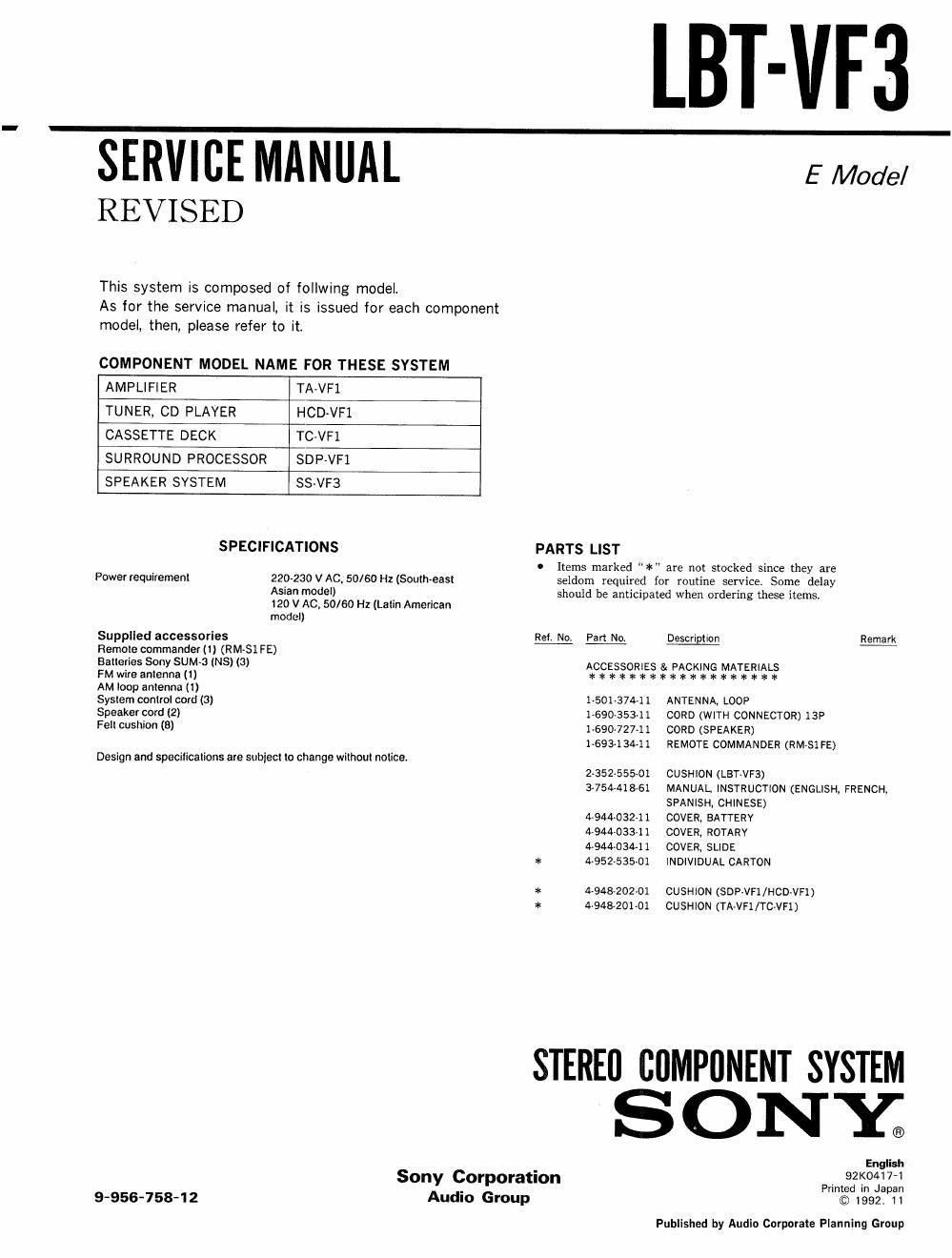

SERVICE MANUAL

REVISED

This system is composed of follwing model.
As for the service manual, it is issued for each component
model, then, please refer to it.

COMPONENT MODEL NAME FOR THESE SYSTEM

AMPLIFIER

TA-VFl

TUNER, CD PLAYER

HCD-VFI

CASSETTE DECK

TC~VF1

SURROUND PROCESSOR

SDP»VF1

SPEAKER SYSTEM

SS-VF 3

SPECIFICATIONS

Power requirement

220-230 V AC, 50/60 Hz (Southeast
Asian model)

LBT-VF3

E Mode/

PARTS LIST

0 Items marked *" are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.

120 V AC. 50/60 Hz (Latin American
model)

Supplied accessories

Remote commander (I) (RM-$1 FE)
Batteries Sony SUM-3 (NS) (3)

FM wire antenna (1)

AM loop antenna (1)

Syslem control cord (3)

Speaker cord (2)

Felt cushion (8)

Design and specifications are subject to change wilhout notice,

Reli No. Part No

1-501374-11
1-690~353~11
1469072741
1-593-1 34.11

235255501
3754-41861

4-944-032-11
4-94L033-11
4944034-11
=r 4952-53501

>1: 4948-20201
:1: 4848-20101

Description Remark

ANTENNA, LOOF|

CORD (WITH CONNECTOR) 13F
CORD (SPEAKER)

REMOTE COMMANDER (RM-SlFE)

CUSHION (LBT-VF3)

MANUAL. INSTRUCTION (ENGLISH, FRENCH,
SPANISH, CHINESE)

COVER, BATTERY

COVER, ROTARV

COVER, SLIDE

INDIVIDUAL CARTON

CUSHION (SDP~VF1/HCD-VF1)
CUSHION (TA-VFI /TC-VF1)

STEREII BUMPIINENT SYSTEM
S 0 NY,

Sony Corporation

9-956-758-1 2

Audio Group

English
92K0417-I
Printed in Japan
© 1992. 11

Published by Audio Corporate Planning Group
