Page 1

3503. _

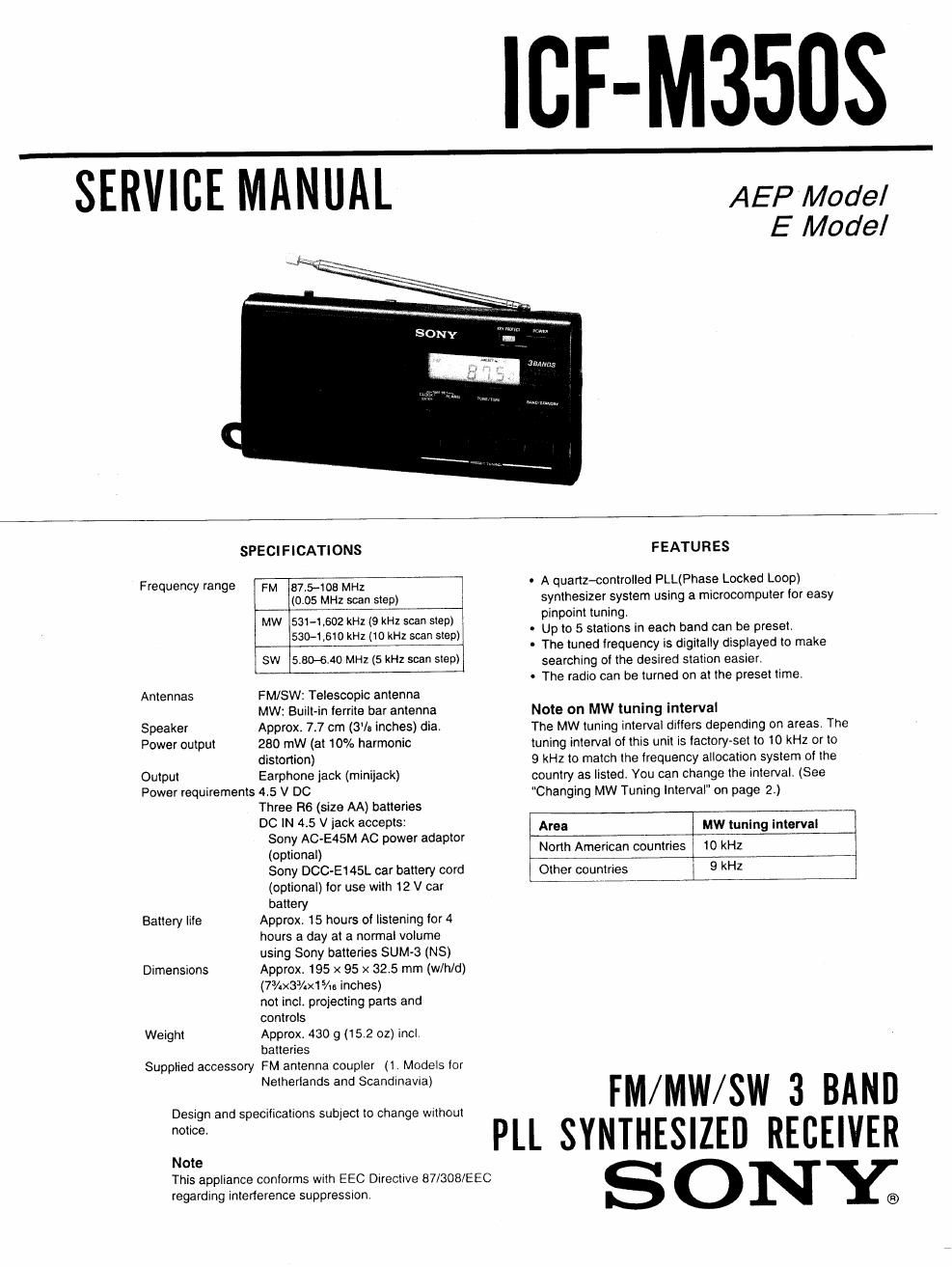

SERVICE MANUAL

AEP Model
E Model

SPECI FICAT|ONS

Frequency range

Antennas

Speaker
Power output

Output

FM 875-108 MHZ
(0.05 MHz scan step)

MW Sal-1,602 kHz (9 kHz scan step)

530-1 ,610 kHz (10 kHz scan step)

SW 5.80-6.40 MHz (5 kHz scan step)

FM/SW: Telescopic antenna
MW: Builtin lerrite par antenna
Approx. 7.7 cm (Sla inches) dia.
260 mW (at 10% harmonic
distortion)

Earphone jack (minijack)

Power requirements 4.5 V DC

Battery life

Dimensions

Weight

Supplied accessory

Three R6 (size AA) batteries
DC W 45 V jack accepts:
Sony AC-E45M AC power adaptor
(optional)
Sony DCC-EMSL car battery cord
(optional) tor use with 12 V car
battery
Approx. 15 hours of listening for 4
hours a day at a normal volume
using Sony batteries SUM-3 (NS)
Approx. 195 x 95 x 32.5 mm (w/h/d)
(7%X33/X1 5/13 inches)
not inclt projecting parts and
controls
Approx. 430 g (15 2 oz) incl,
batteries
FM antenna coupler (1, Models tor
Netherlands and Scandinavia)

Design and specifications subject to change without

notice.

Note

This appliance coniorms with EEC Directive 87/308/EEC

regarding interterence suppresstonr

FEATURES

. A quartz-controlled PLL(Phase Locked Loop)
synthesizer system using a microcomputer for easy
pinpoint tuning.

- Up to 5 stations in each band can be preset

- The tuned frequency is digitally displayed to make
searching of the desired station easier.

- The radio can be turned on at the preset time.

Note on MW tuning interval

The MW tuning interval differs depending on areas. The
tuning interval of this unit is iactory»set to 10 kHz or to
9 kHz to match the frequency allocation system oi the
country as listed. You can change the interval. (See
Changing MW Tuning interval on page 2.)

Area MW tuning Interval
North American countries 10 kHz
Other countries 9 kHZ

FM/MW/SW 3 BAND
PLL SYNTHESIZED RECEIVER
