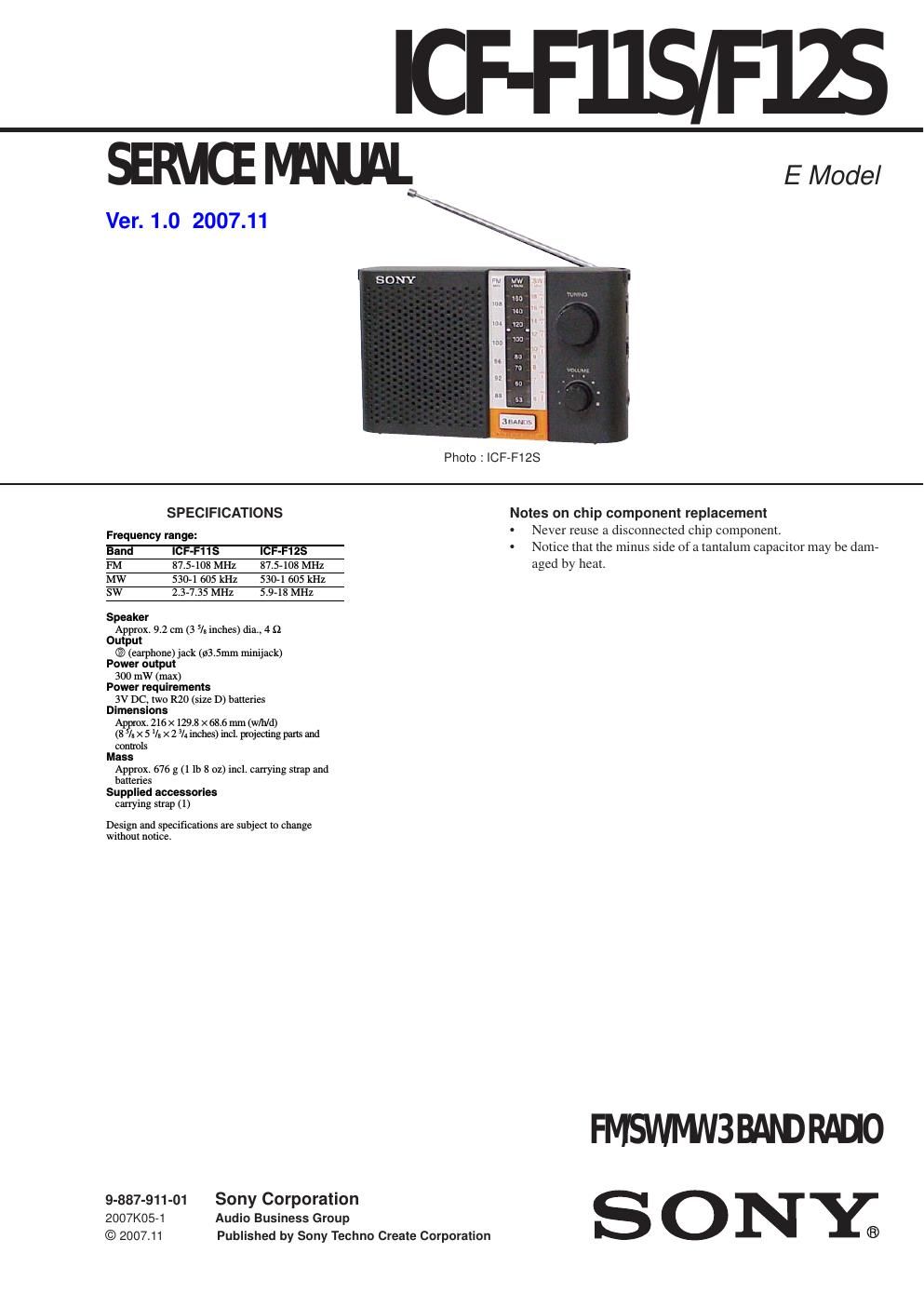

ICF-F11S/F12S
3
SECTION 3
DISASSEMBLY
- This set can be disassembled in the order shown below.
3-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
3-2. REAR CABINET BLOCK
3-2. REAR CABINET BLOCK
(Page 3)
3-3. MAIN BOARD, GEAR (VC)
(Page 4) 3-5. GEAR (VC) AND MAIN BOARD SETTING
(Page 5)
3-4. TELESCOPIC ANTENNA (ANT1),
BATTERY CASE LID, CABINET (REAR)
(Page 4)
SET
Open the battery case lid.
three claws
antenna cable
terminal board
(antenna)
Remove a
solder.
screw
rear cabinet block
screw
