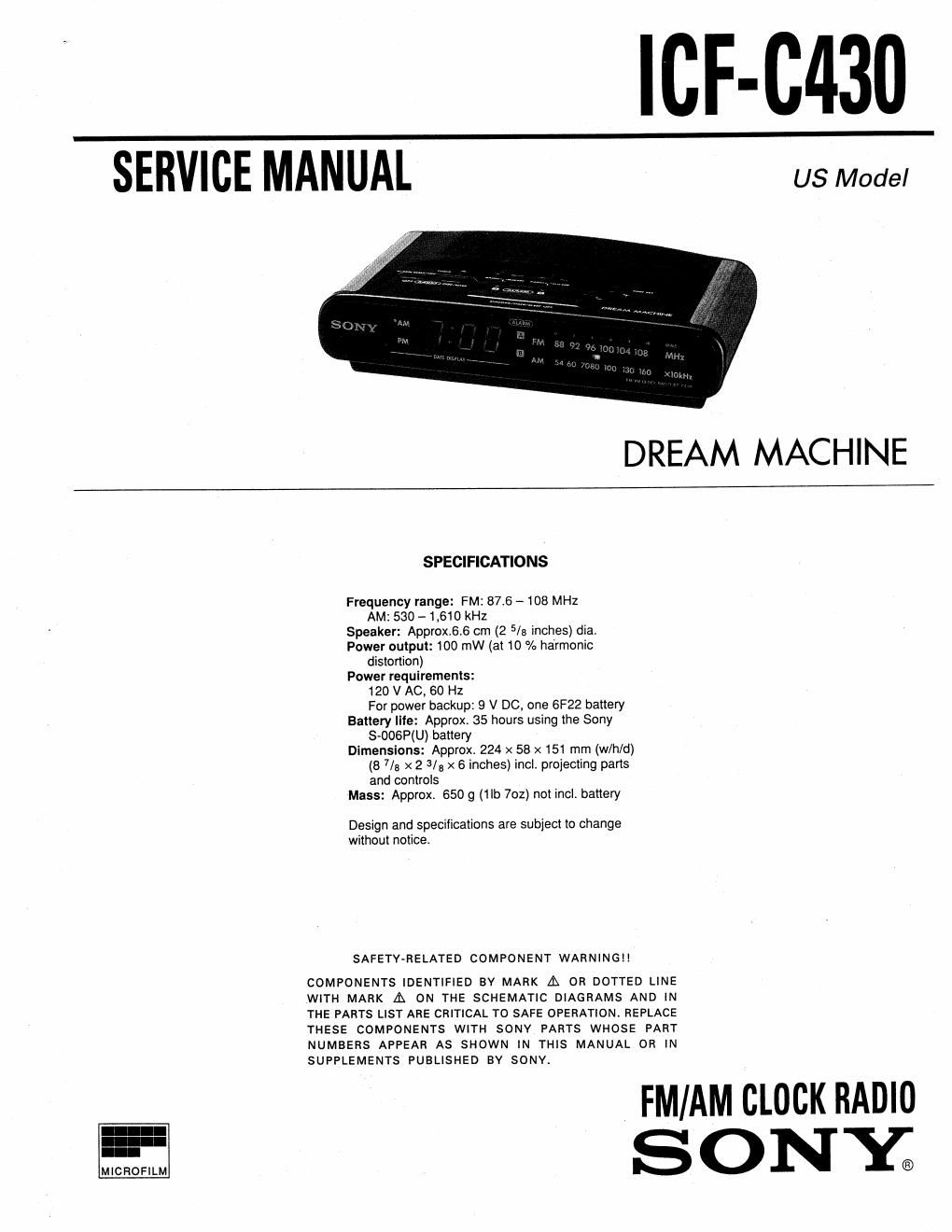

CF-C430

SERVICE MANUAL

US Model

DREAM MACHINE

MICROFILM

SPECIFICATIONS

Frequency range: FM: 87.6 - 108 MHz
AM: 530 - 1,610 kHz
Speaker: Approx.6.6 cm (2 5/3 inches) dia.
Power output: 100 mW (at 10 % harmonic
distortion)
Power requirements:
120 V AC, 60 Hz
For power backup: 9 V DC, one 6F22 battery
Battery life: Approx. 35 hours using the Sony
$.006P(U) battery
Dimensions: Approx 224 x 58 x 151 mm (w/h/d)
(B 7/3 x 2 3/5 x 6 inches) inci, projecting parts
and controls
Mass: Approx. 650 g (Ht) 702) not incl. battery

Design and specifications are subject to change
without notice.

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATIONt REPLACE
THESE COMPONENTS WITH SONY PARTS WHOSE PART
NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY.

FM/AM cwcx RADIO
SONE
