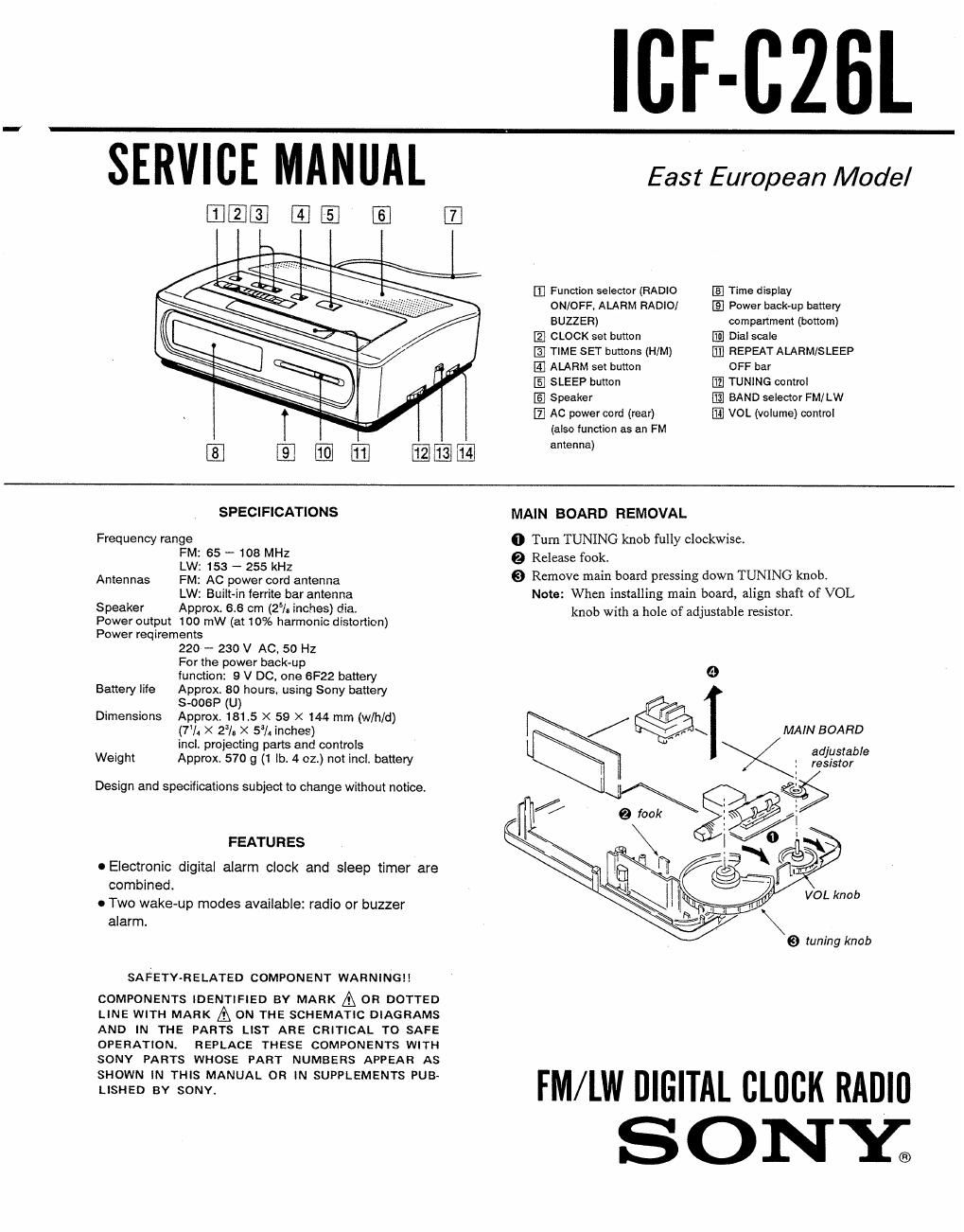

lCF-CZBI.

East European Model

1]] Function selector (RADIO Time display
ONIOFE ALARM RADIO/ @ Power back-up battery

BUZZER) compartment (bottom)
2] CLOCK set button Dial scale
TIME SET buttons (HIM) [11] REPEATALARM/SLEEP

IE ALARM set button OFF bar
IE SLEEP button E1] TUNING control
[E Speaker El BAND selector FM/ LW
Ac poweroord (rear) VOL (volume) control
(also function as an FM
antenna)

SPECIFICATIONS

Frequency range

FM: 65 ~ 108 MHZ

LW: 153 - 255 kHz
Antennas FM: AC power cord antenna

LW: Built Speaker Approx. 6.6 cm (25/. inches) dia.
Power output 100 mW (at 10% harmonic distortion)
Power reqirements

220 - 230 V AC. 50 HZ

For the power back-up

function: 9 V DC. one 6F22 battery
Battery llIe Approx. 80 hours. using Sony battery

S-OOGP (U)
Dimensions Approx. 181.5 X 59 X 144 mm (w/h/d)

(7/« X 21. X 53/. inches)

incl. projecting parts and controls
Weight Approx, 570 g (1 lb. 4 oz.) not incl. battery

Design and specifications subject to change without notice

FEATURES

oElectronic digital alarm clock and sleep timer are
combined.

0 Two wake-up modes available: radio or buzzer
alarm.

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

MAIN BOARD REMOVAL

0 Turn TUNING knob fully clockwise.
6 Release fook.
6 Remove main board pressing down TUNING knob.
Note: When installing main board, align shaft of VOL
knob with a hole of adjustable resistor.

MAIN BOARD

adjustable
l : resistor

6 tuning knob

FM/LW DIGITAL CLOCK RADIII

SONY®
