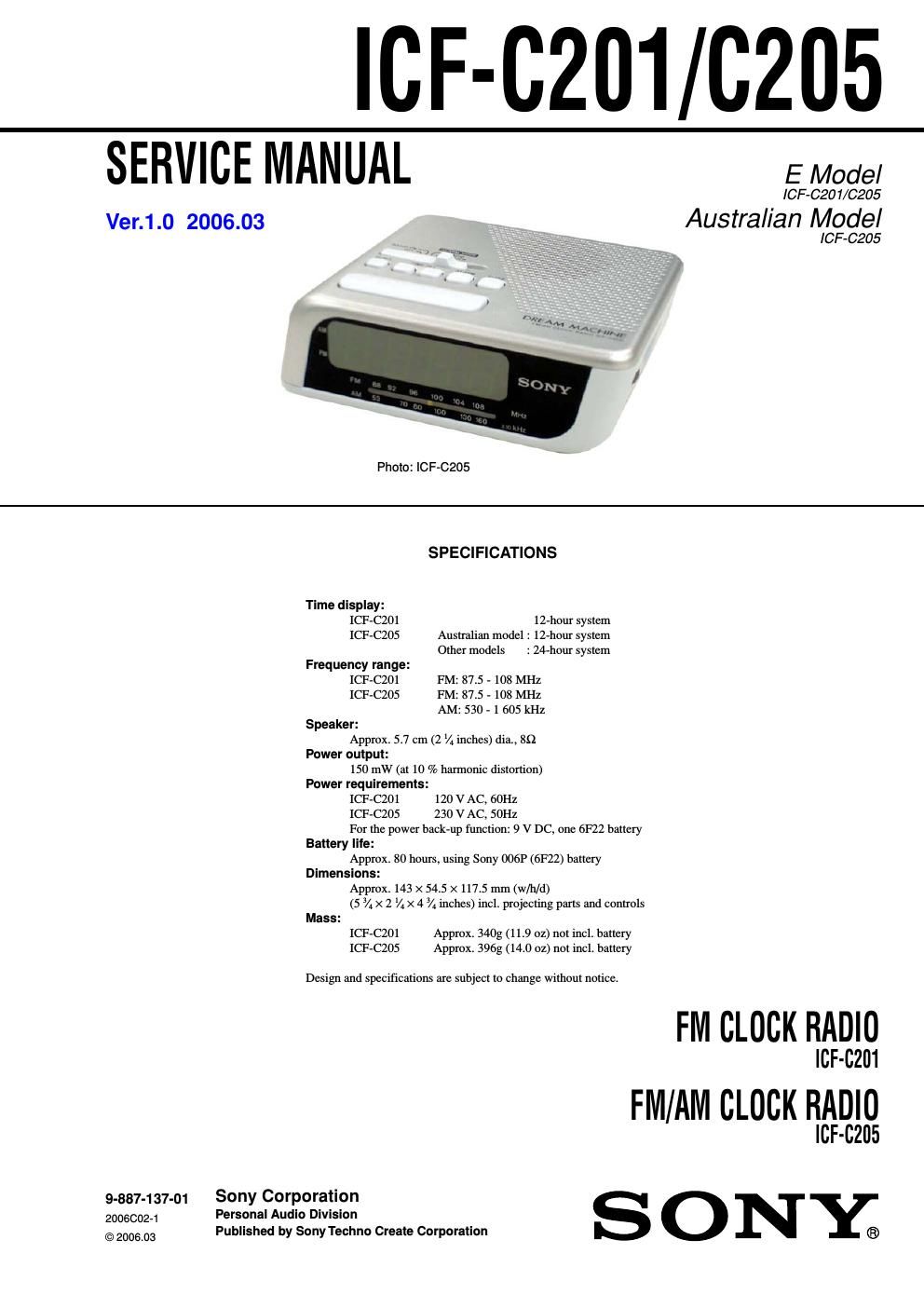

2 ICF-C201/C205 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. T ABLE OF CONTENTS Specifications ........................................................................\ .... 1 1. GENERAL Locating the Controls ...................................................... 3 2. DISASSEMBLY 2-1. Upper Cabinet assy .................................................. 5 3-2. MAIN Board ............................................................ 5 Installation Power Cord and Pointer Installation ............ 6 3. ELECTRICAL ADJUSTMENTS ......................... 7 4. DIAGRAMS 4-1. Printed Wiring Board ............................................... 9 4-2. Schematic Diagram .................................................. 10 5. EXPLODED VIEWS ................................................ 12 6. ELECTRICAL PARTS LIST ................................ 13 - HOW TO CHANGE THE CERAMIC FILTER This model is used two ceramic filters of CF2 and CF3. You must use same type of color marked ceramic filters in order to meet same specifications. Therefore, the ceramic filter must change two pieces together since it's supply two pieces in package as a spare parts. mark mark CF3 CF2 red blue orange black white 10.70MHz 10.67MHz 10.73MHz 10.64MHz 10.76MHz Mark Center frequency
