Sony icf 8 l service manual

This is the 13 pages manual for sony icf 8 l service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 13
left right
sony icf 8 l service manual

Extracted text from sony icf 8 l service manual (Ocr-read)

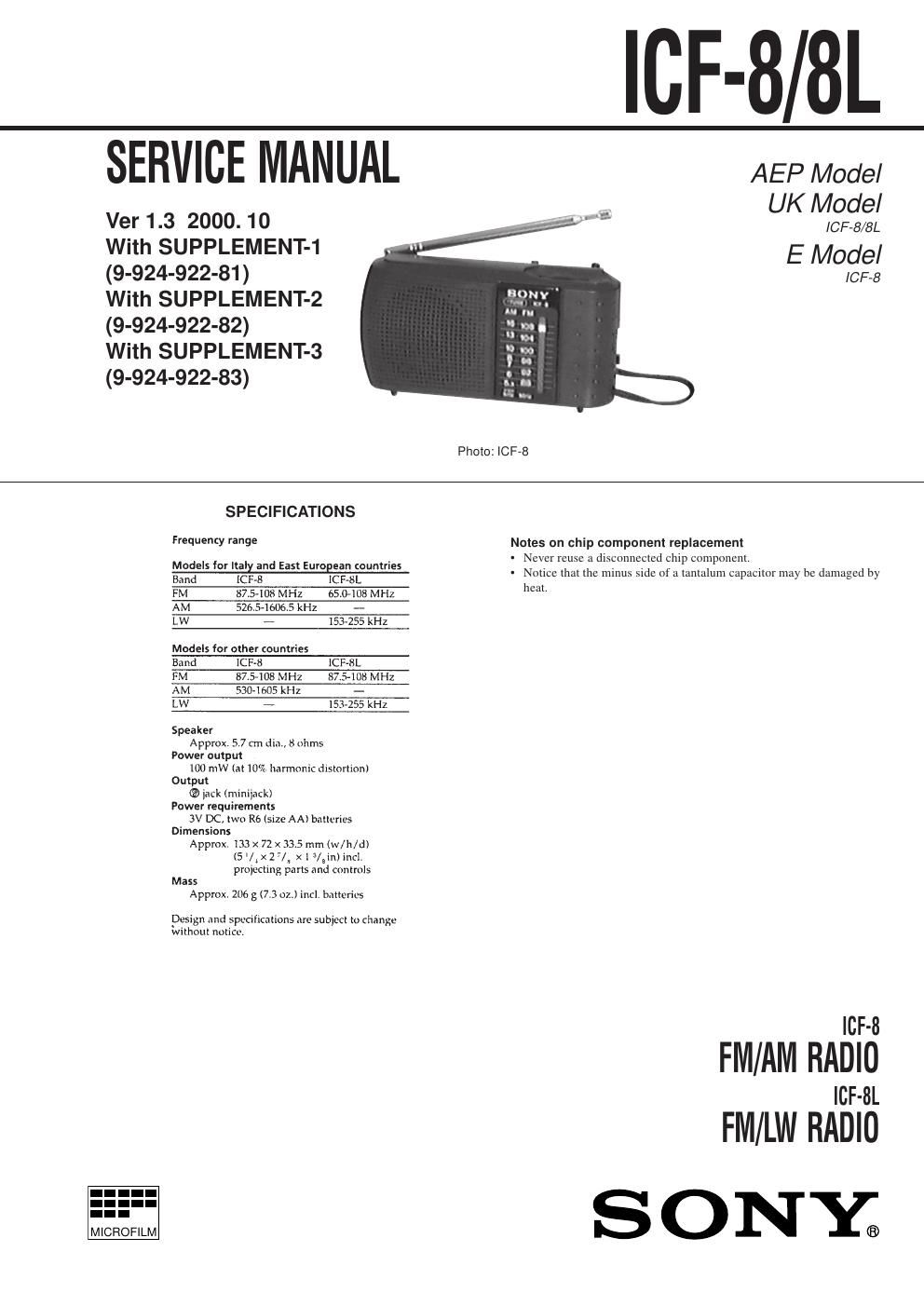

Page 1

Ð 2 Ð SECTION 1 GENERAL This section is extracted from instruction manual.

Page 2

Ð 3 Ð CABINET (REAR) MAIN BOARD Note: Follow the disassembly procedure in the numerical order given. SECTION 2 DISASSEMBLY 2 three screws (P2 ´ 8) 8 cabinet (rear) 3 two claws 3 two claws 47 telescopic antenna 1 Remove the battery lid. 3 two claws 6 lug 5 screw (B1.7 ´ 4) 9 cabinet (front) 1 Remove two solders of the speaker leads. 4 two claws 2 battery terminal (-) 5 MAIN board A 3 battery terminal (+) CV1 Note:On installation MAIN board, turn CV1 shaft in the arrow A direction fully.
