Page 2

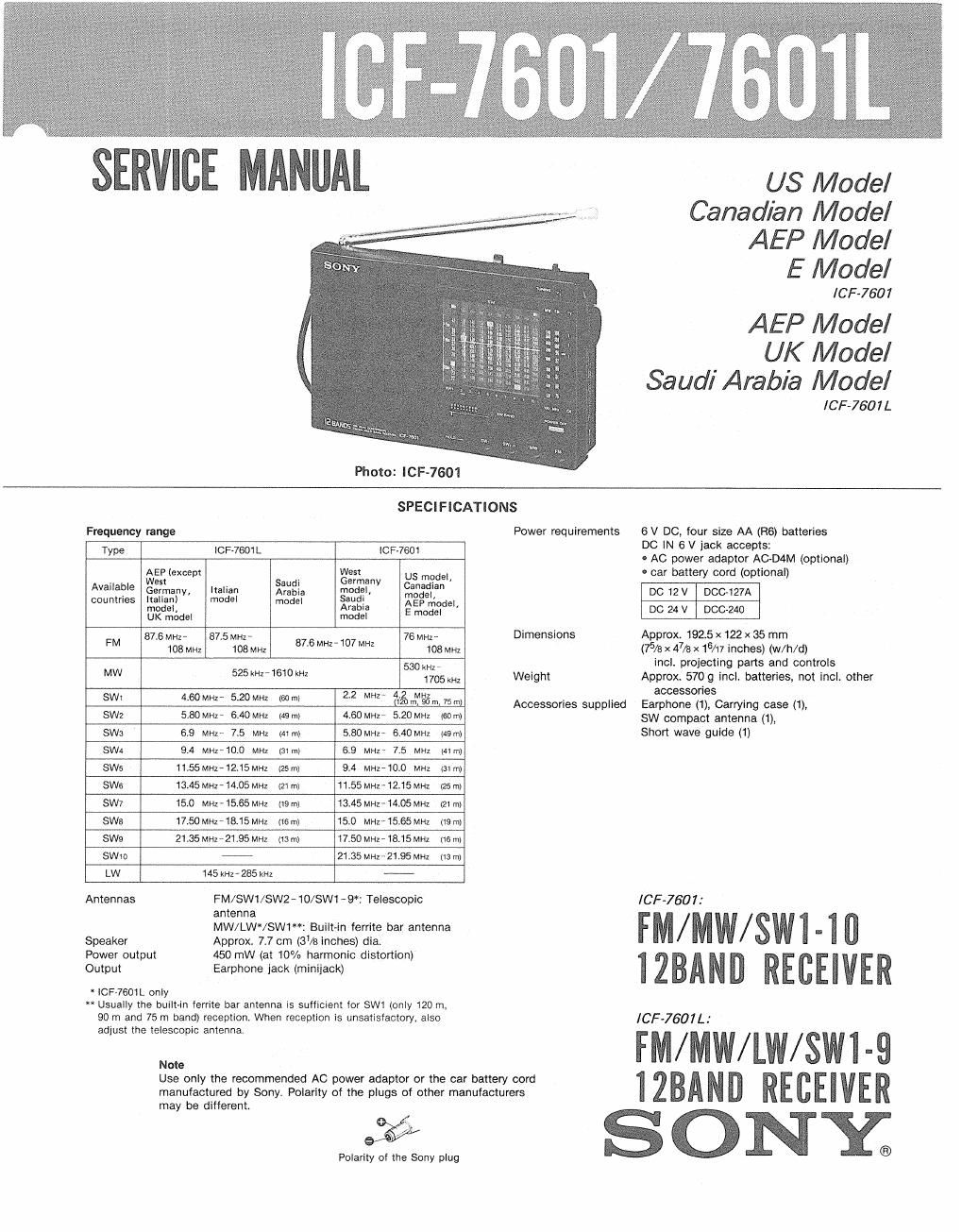

ICF-7601/7601 L

PRECAUTIONS

SERVICING NOTE

OChannels 5803 MHz, 6.207 MHz, 11503 MHz, 11.958 MHz and
21.870 MHz may be diflicult to receive due to internal spurious Flexible Circuit Board Repairing
signals generated by the built-in oscillators

TIPS 0N OPERATIONS

Battery lite
Receiving band

SW
FM

Continuous receiving hours

(available with Sony SUM-3 (NS))
approx. 26 hours

approx. 29 hours

Using the HOLD switch
This switch deactivates the following buttons.

Band select buttons: FM, MW, LW", SW1, SW21-10 and SW179

POWER OFF' button
It is convenient to prevent accidental power on while carving the
radio, or to hold the active band during reception

* lCF-7601L only

0 Keep the temperature of the soldering iron around
270°C during repairing.

0 Do not touch the soldering iron on the same con-
ductor of the circuit board (within 3 times)

0 Be careful not to apply force on the conductor
when soldering or unsoldering.

Notes on chip component replacement

0 Never reuse a disconnected chip component,
0 Notice that the minus side of a tantalum capacitor
may be damaged by heat.

«atom -m a» u. .- wou» . «it o «- -vi. - ... y»- m - Ik . in, o m o a» . ln - .n - it - .r - u. . lli . m o 4. o m - w o m» - m, o a. o m o m . mow - u. 9 -lu . Ir. 7: o m . rm 9

LOCATION AND FUNCTION OF CONTROLS

Photo: ICF-7601

I2 BANDS gay, CM

w. mm. /m.

TUNING indicator

TUNING knob

TONE knob

VOLUME knob

POWER OFF button

SW BAND SELECTswitch

[CF-7607: SW2 - SW70
[CF-760M: SW1 - SW9

BAND SELECTbutton
[CF-7601: SW1, SWZ-TU/ MW, FM
ICF-7601L: LW, SW1-9, MW, FM
HOLD switch
Preventing from accidental
changes of receiving band
or power on/off.
