Sony icf 5900 w service manual

Page 1

Power Output:

Power Consumption:

Circuit Svstems:

Frequenev Range:

Antennas:

Speaker:
Dimensions:

Weight:

Power Requiremens:

ICE-5900

US Model
Canadian Model
UK Model

AEP Model

E Model

EM/AM
MIMI-BAND RECEIVER

4.5 V do, three batteries size 0 EC designation R20)
us and Canadian Model

SPECIFICATIONS

120 V ac, 60H: with Sony ac power adaptor A011

UK, AEP and E Model

220 - 240V ac (100, 1I0-127V adjustable)
50/60Hz with optional Sony ac power adaptor AC-3W
[AC-456C [West Germany Model)

or 12V car battery with optional Sony car battery cord DOC-127+!
1,900mw dc (Total Harmonic Distortion 10%)
US Ind Canadian Model

[SW ac (60Hz) with Sony ac power adaptor A0110

UK. AEP and E Model
l7.4VA I50Hz) 6.8VA (GOHzI with optional ac power adaptor AC-3W

FM/MW: Superheterodyne
SW: Dual conversion superhelarodvne
875 - 108 MHz
3.9 -- 10 MHz (77 - 30m)
11] - 20 MHz (25.6 - 15m)
SW3: 20 - 28 MHz (15 - 10.7m)
MW: 530 - 1,605 kHz
FM/SW: Telescopic antenna, external antenna terminals
MW: Built-in lerrite-rod antenna, external antenna terminal

;::::?;;:";:,::3W S ONY;

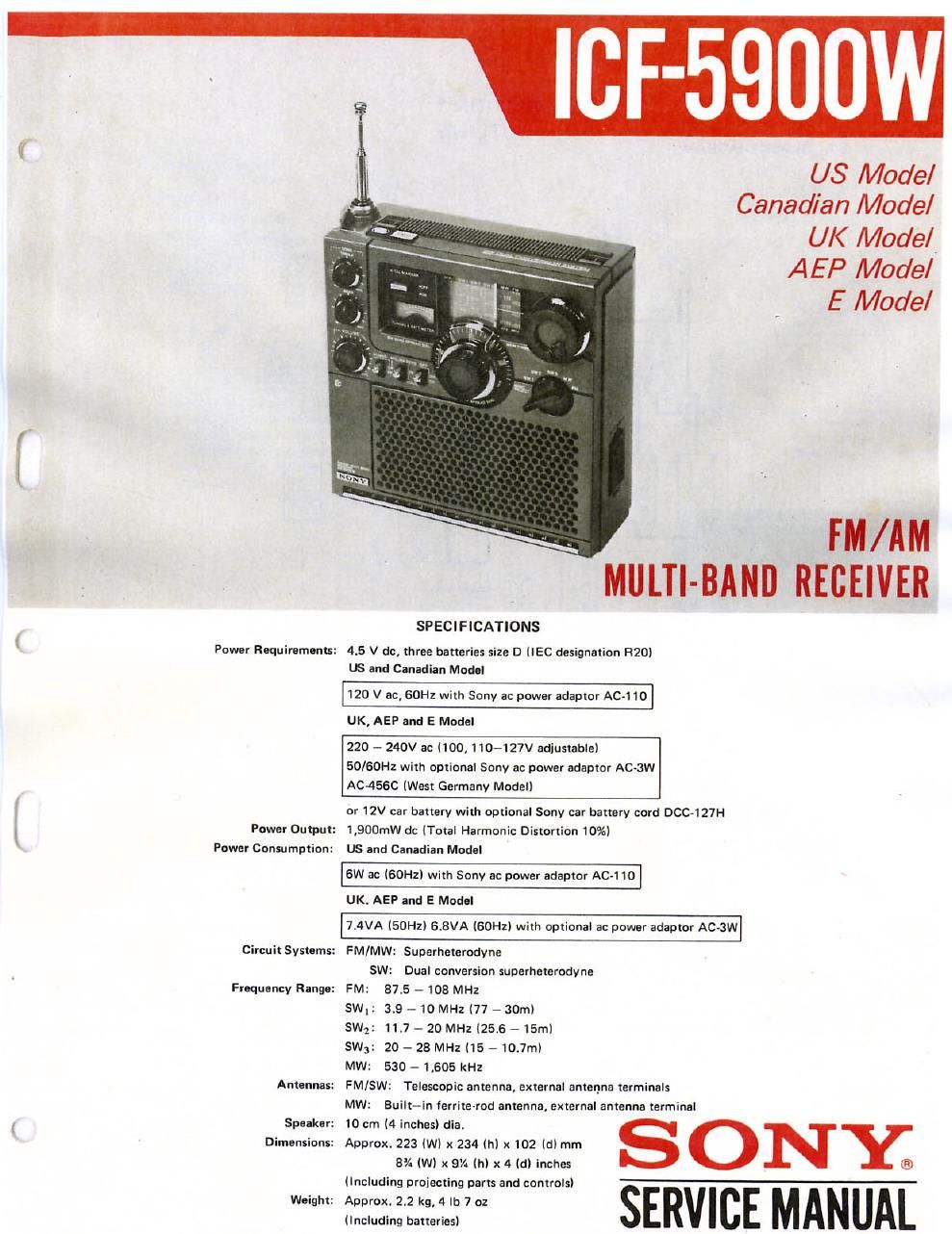

SERVICE MANUAL

FM:
SWI:
SW2:

8% (W) x 9/- (h) x 4 (cl) inches
(Including projecting parts and controls)
Approx. 2.2 kg, 4 lb 7 oz
(Including batteries)
