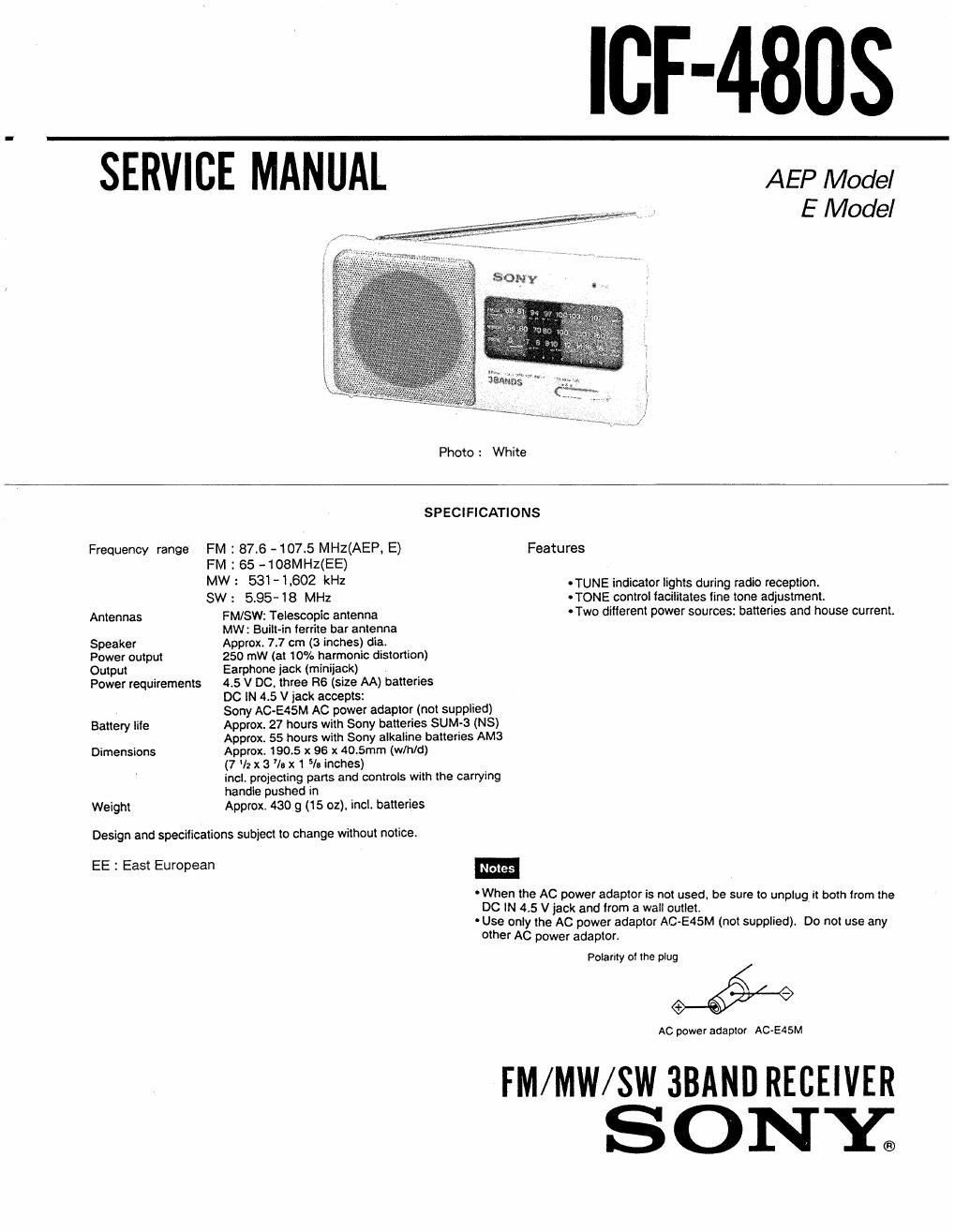

Page 1

ICE-480$

SERVICE MANUAL

AEP Model
E Model

Photo : White

SPECIFICATIONS

Frequency range FM : 87.6 -107t5 MHZ(AEP. E)
FM : 65 ~108MHz(EE)
MW: 531-1602 kHz
SW : 5.95-18 MHz

Antennas

Speaker

Power output
Output

Power requirements
Battery life

Dimensions

Weight

FM/SW: Telescopic antenna

MW: Built-in ferrite bar antenna

Approx. 7.7 cm (3 inches) dla.

250 mW (at 10% harmonic distortion)

Earphone jack (minijack) ,

4.5 V DC, three R6 (size AA) batteries

DC IN 45 V jack accepts:

Sony AC-E4SM AC power adaptor (not supplied)
Approx. 27 hours with Sony batteries SUM-3 (NS)
Approx. 55 hours with Sony alkaline batteries AM3
Approx. 190.5 x 96 x 40.5mm (w/h/d)

(7 /2 x 3 15 x 1 5/: inches)

incl. projecting pans and controls with the carrying
handie pushed in

Approx. 430 g (15 oz). incl. batteries

Design and specifications subject to change without notice.

EE : East European

Features

-TUNE indicator lights during radio reception.
- TONE control facilitates tine tone adjustment.
oTwo diflerenl power souroes: batteries and house current.

°When the AC power adaptor is not used. be sure to unplug it both trom the
DO IN 4.5 V jack and trom a wall outlet.

' Use only the AC power adaptor AC-E45M (not supplied). Do not use any
other AC power adaptor.

Polarity ot the plug

AC power adaptor AC-EASM

FM/MW/SW 3BANI] RECEIVER

SONY;

Page 2

ICF- 4805

SECTION 1

GENERAL This secrion is extracted from

instruction manual.

LOCATION AND FUNCTION CONTROLS

Front

Avanl E]
Vorderseito /Q(-\\\xs
V k t :t-.-_.
Azferrigrre D l \
2
3

,m
Parke {renal

Rear
Arriere
Rackselte
Achterkant
Posteriore
.31;

Pa rte posterior

How to use the carrying handle Jail u-ei- Jet-«l ~45
Uitlisation de la poignée de
transport

Verwendung des Tragegrilis
Gebrui kvan de draagbeugel

Uso dell: maniglia di trasporlo Whe" "Sm as a 3""

Comme support

Zum Aulstellen des Radios
Voor gebmik als slandaerd
Ouando si ulilizza come
supporlo

ALA 25,5; Jhiall m

When carrying the radio
Pour transponer Ia radio
Zum Tragen des Radios
Voor meedragen van de radio
Ouando si lvaspena la radio
xfljl J. n

E] Speaker

E Dial scale

E] Dial pointer

[fl BAND selector
(FM/MW/SW)

E] Telescopic antenna

If] TUNE (tuning) indicator

E) TUNE (tuning) control

TONE control

To obtain clear treble. set to H" (high).
To reinforce bass, set to L" (low).

E] POWER/VOL (volume) control
Turn left to increase lhe volume.

Battery compartment

IE (9 (earphone) jack _
The sound through the speaker cannot be heard when an earphone is
connected to the jack

[El DC IN 4.5 v jack
El Carry|n9 handle
